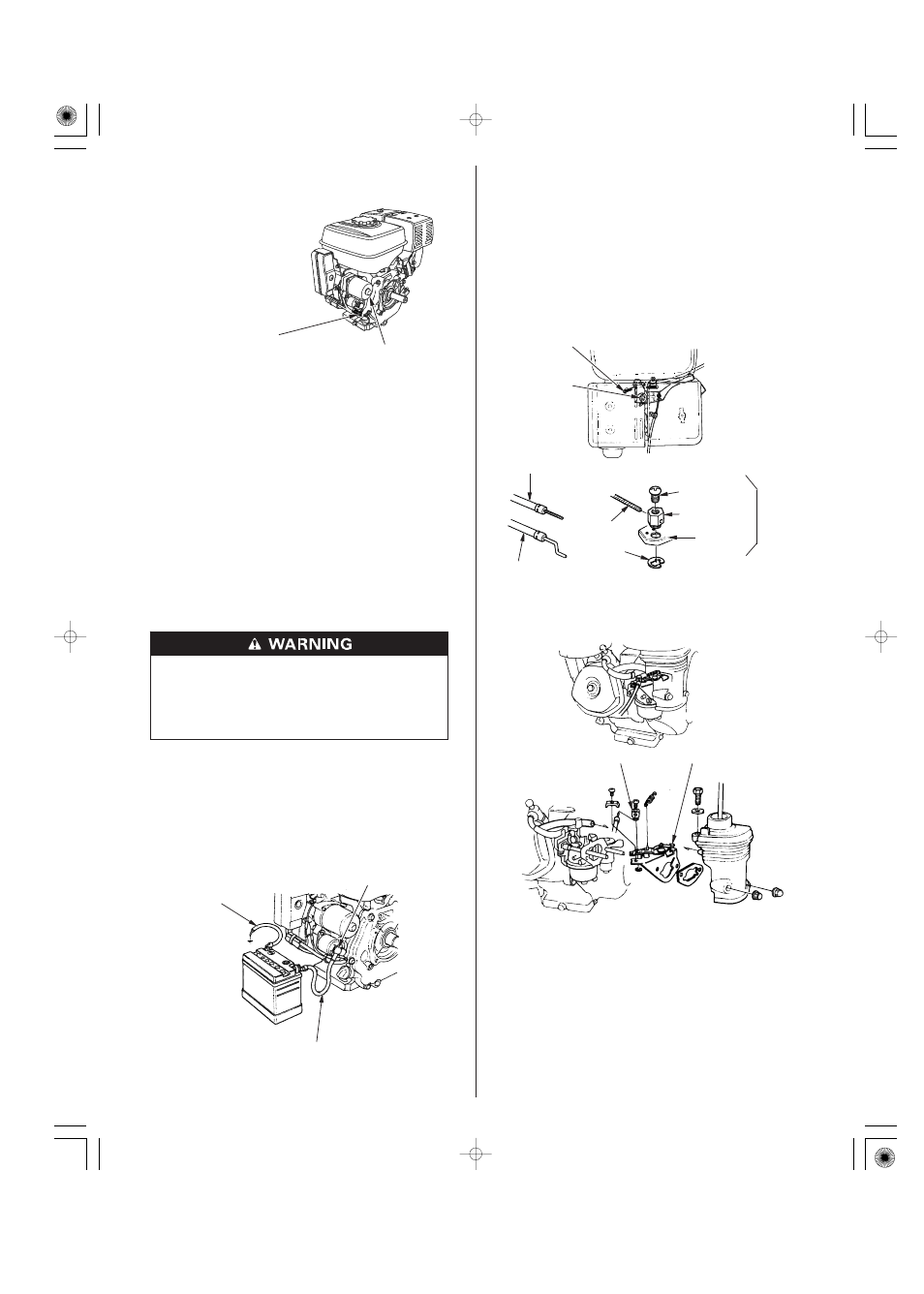

Remote Control Linkage
TECHNICAL INFORMATION
Serial Number Location
Battery Connections for Electric Starter(applicable types)
Carburetor Modifications for High Altitude Operation
TECHNICAL & CONSUMER INFORMATION
POSITIVE ( ) BATTERY CABLE
NEGATIVE ( )
BATTERY CABLE
REMOTE THROTTLE LINKAGE
Flexible wire core
mounting
Solid wire core
mounting
WIRE
5 mm
CIRCLIP
4 mm SCREW
WIRE HOLDER
THROTTLE
LEVER
OPTIONAL
REMOTE CHOKE LINKAGE
SERIAL NUMBER &
ENGINE TYPE LOCATION
STARTER SOLENOID
RETURN SPRING
WIRE HOLDER CHOKE LEVER
THROTTLE LEVER
FRICTION NUT
ELECTRIC STARTER
(applicable types)
16
The throttle and choke control levers are provided with holes for
optional cable attachment. The following illustrations show
installation examples for a solid wire cable and for a flexible,
braided wire cable. If using a flexible, braided wire cable, add a
return spring as shown.
It is necessary to loosen the throttle lever friction nut when
operating the throttle with a remote-mounted control.
Record the engine serial
number in the space below. You
will need this information when
ordering parts and when
making technical or warranty
inquiries.
Coat the terminals and cable ends with grease.
Connect the battery negative ( ) cable to the battery negative
( ) terminal as shown.
Connect the battery positive ( ) cable to the battery positive ( )
terminal as shown.
Connect the battery negative ( ) cable to an engine mounting
bolt, frame bolt, or other good engine ground connection.
Connect the battery positive ( ) cable to the starter solenoid
terminal as shown.
Keep all sparks, open flames, and smoking materials
away from the battery.
A battery can explode if you do not follow the correct
procedure, seriously injuring anyone nearby.
Be careful not to connect the battery in reverse polarity, as this will
short circuit the battery charging system. Always connect the
positive (
) battery cable to the battery terminal before
connecting the negative ( ) battery cable, so your tools cannot
cause a short circuit if they touch a grounded part while tightening
the positive (
) battery cable end.
Use a 12-volt battery with an ampere-hour rating of at least 18 Ah.
Date Purchased: ______ / ______ / ______
Engine type: ___ ___ ___ ___
Engine serial number: __ __ __ __ __ __ __ __ __ __ __
At high altitude, the standard carburetor air-fuel mixture will be
too rich. Performance will decrease, and fuel consumption will
increase. A very rich mixture will also foul the spark plug and
cause hard starting. Operation at an altitude that differs from that
at which this engine was certified, for extended periods of time,
may increase emissions.
1.
2.
3.
4.
5.
