Heatilator • Caliber BV Series • 4040-262 Rev J • 10/08 34
16 16
Reference Materials
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.

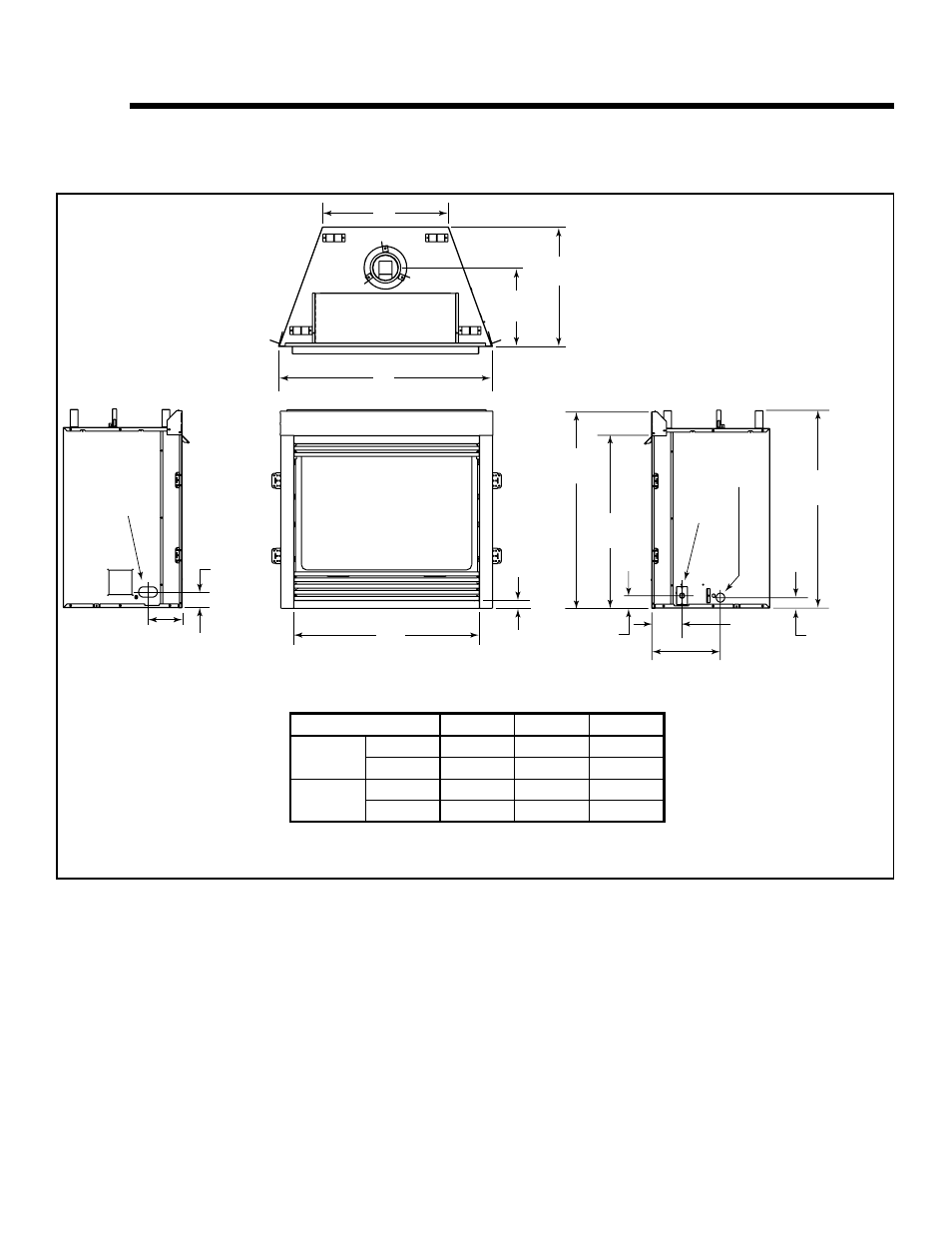

Figure 16.1 Appliance Dimensions
38-1/4 in.
(972 mm)
B
1-1/2 in.
(38 mm)
3 in.
(76 mm)
6-1/2 in.
(165 mm)
2-3/8 in.
(60 mm)
5-7/8 in.
(149 mm)
14-1/8 in.
(359 mm)
2 in.
(51 mm)
33-1/2 in.
(851 mm)
C
23 in.
(584 mm)
15-1/4 in.
(387 mm)
A
Gas Line
Access
Gas Line
Access
Electrical
Access
38-1/2 in.
(978 mm)
Model A B C
CB4236IR inches 41-1/4 36 24-1/4
mm 1,048 914 616
CB4842IR inches 47-1/4 42 30-1/4
mm 1,200 1067 768
