Heatilator • Caliber BV Series • 4040-262 Rev J • 10/08 30
Latches
(both bottom
and top)
Glass
Assembly

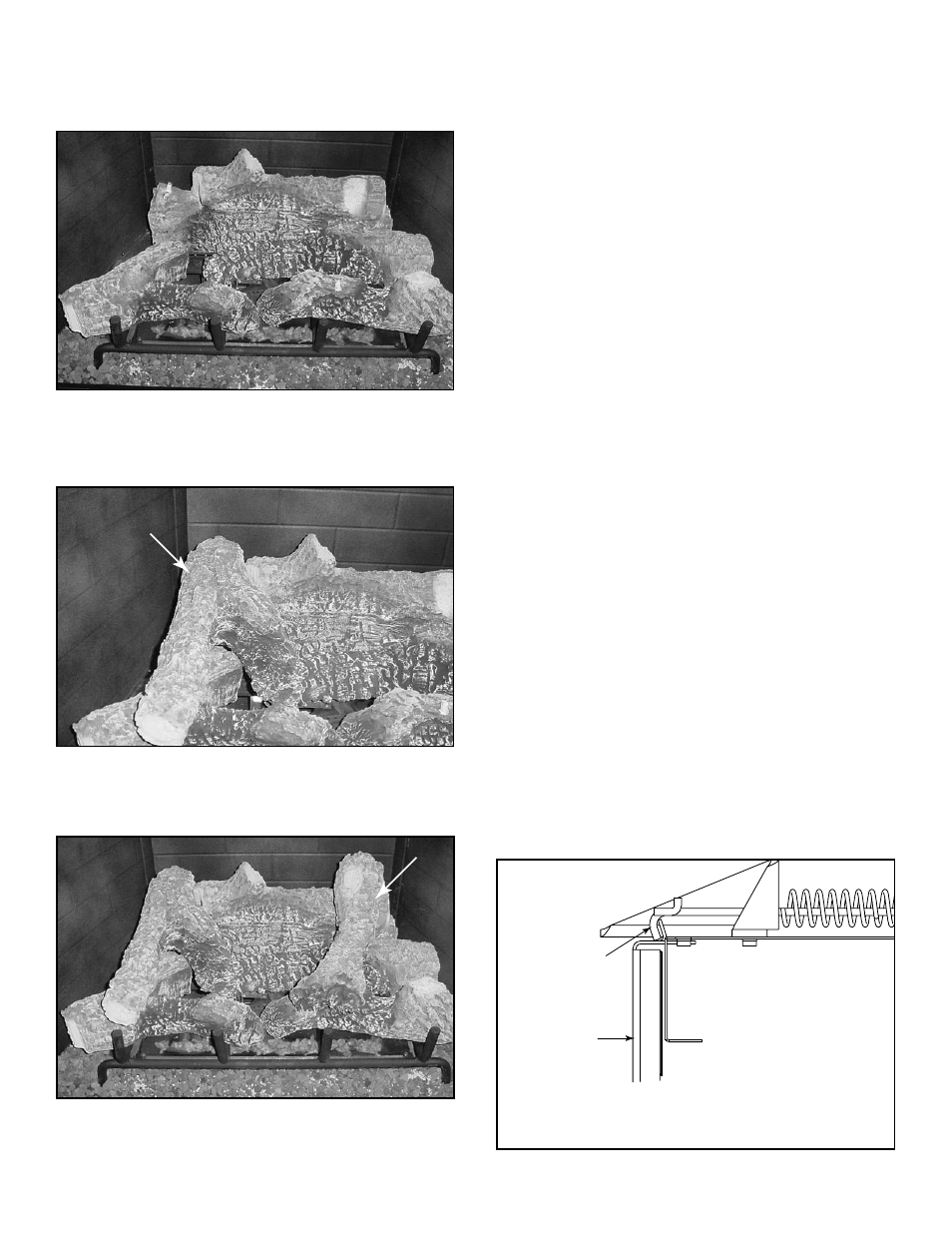

Figure 14.8 Fixed Glass Assembly
H. Install the Log Assembly
• Base logs have been permanently mounted on the grate
assembly and should not be moved. See Figure 14.5.
Figure 14.7 Placing Right Top Log
Figure 14.6 Placing Left Top Log
Figure 14.5 Base Logs
• Install “Y” log on left hand side of grate using locating
pins to position. See Figure 14.6.
• Install right top log as shown in Figure 14.7 using locating
pins to position log properly.
J. Glass Assembly
WARNING! Risk of Asphyxiation! Handle fi xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate fi replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Removing Glass Assembly
• Remove fi rescreen.
• Pull the four (CB4236I) or six (CB4842I) glass assembly
latches out of the groove on the glass frame.
• Remove the glass panel from the appliance.
Replacing Glass Assembly
• Set the glass panel on the lower two or three glass
assembly latches, ensuring the glass panel is centered
in the opening.
• Pull out and latch the four/six glass assembly latches
into the groove on the glass frame.
• Replace fi rescreen.
I. Firescreen
The fi rescreen is a protective barrier and must be at-
tached.
Removing Firescreen
• Open lower access panel and pull base of screen
towards you.
• The top of the screen will slide out of the screen retainers
at the top of the fi rebox opening.
Replacing Firescreen
• Remove top grille assembly by lifting upwards and pulling
towards you.
• Slide top of screen panel into top screen brackets and
rotate bottom of screen to lower door latches.
• Close lower access panel and reinstall top grille.
