Hookup Diagram

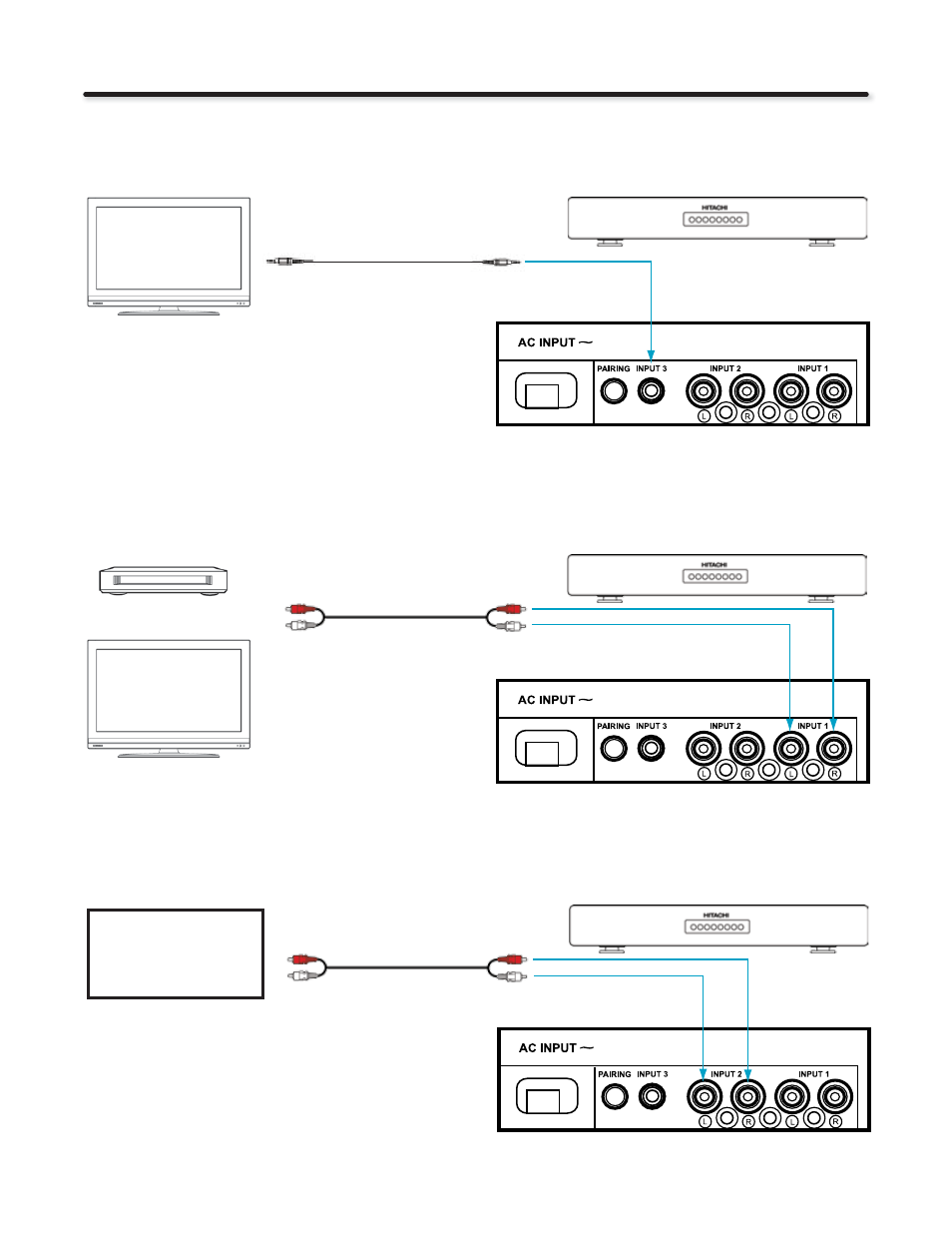

TV Audio Hookup - Case 1

If your TV has a headphone output, plug the supplied 3.5 mm mini stereo cable into the headphone output from your TV and

plug the other end to the Input 3 jack on the back of your Soundbar.

TV Audio Hookup - Case 2

If your TV does not have a headphone output and you are using a set top box, plug one end of the included RCA cable into

the audio outputs from your set top box and plug the other end into Input 1 on the back of your Soundbar.

3.5 mm Mini

Stereo Cable

(Supplied)

To Headphone

output of TV

To Input 3 (Mini Stereo jack)

of SBW100

RCA Cable

(Supplied)

To Audio Output

of Set Top Box or TV

To Input 1 (RCA jack) of SBW100

To Input 2 (RCA jack) of SBW100

Audio Hookup - Other Device

The Input 2 can be attached to Blu-ray, DVD or CD players. It can also be used to connect devices such as MP3 players or

Home Video Game systems.

RCA Cable

To Audio Output

Blu-ray Players

DVD Players

CD Players

MP3 Players

Home Video Game Systems

Other Device

SBW100

SBW100 Rear Connectors

Set Top Box

[Note]

Some TV's do not have a headphone

output but do have Audio outputs with

RCA jacks. You can connect them to

Input 1 by using the RCA cable. This

will also work fine except that the

SBW100 volume must now be

adjusted using the SBW100 remote.
