Page 31
English
– 31
Maintenance
4

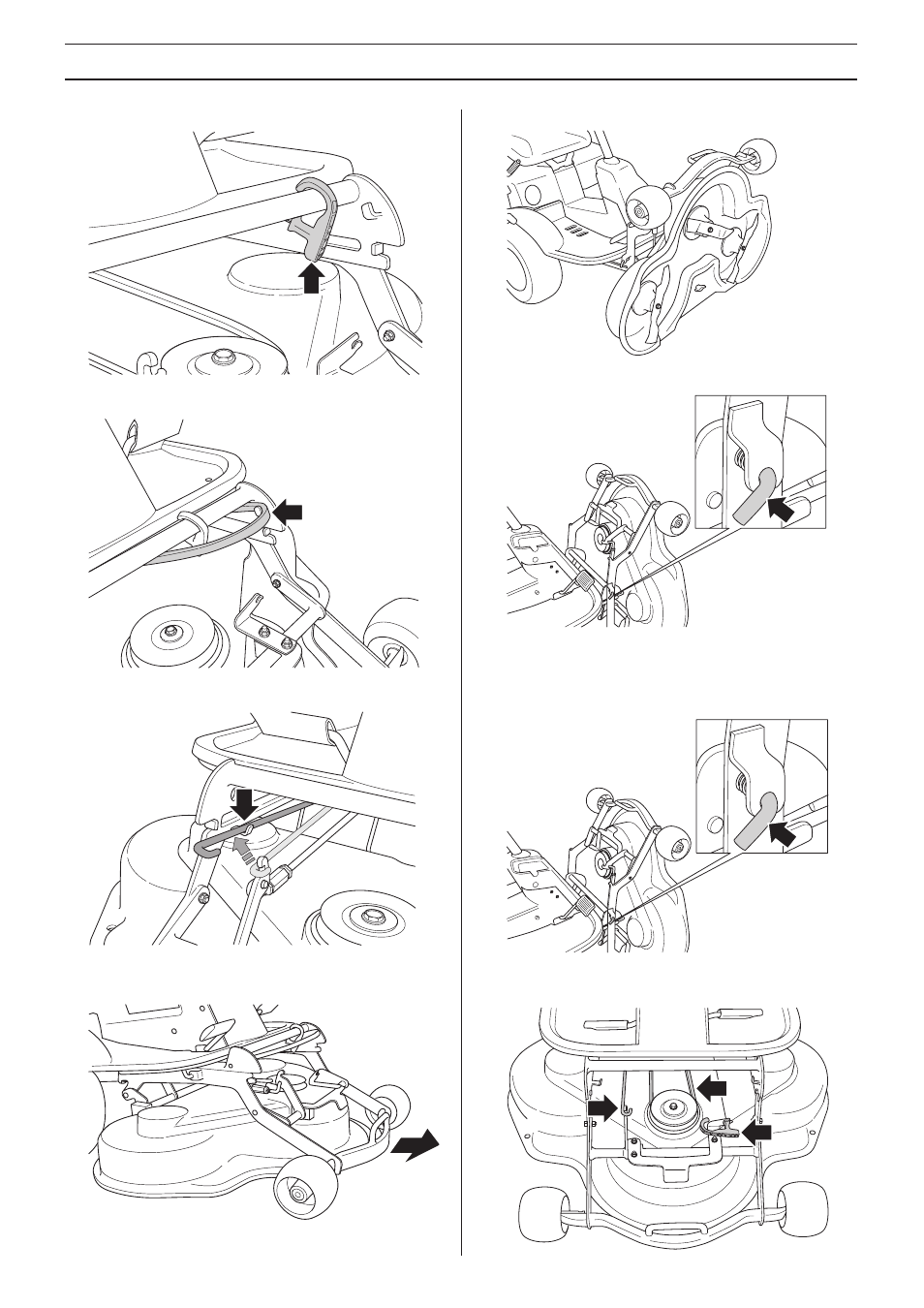

Place the handle on the frame arch.
5
Lift off the drive belt and hang on the load-relieving hook.
6
Loosen on the cutting height stay and place in the holder.
7
Grip the front edge of the unit and pull forwards until it
stops.
8
Lift the unit until it stops and a clicking sound is heard.
9
The unit locks automatically in the vertical position.
Restoring from service position
1
Grip the front edge of the unit and loosen the lock, fold
down and slide in the unit.
2
Replace the cutting height stay and the belt. Tension the
belt with the belt adjuster.
