20
AC Receptacle Selection
Power Producing Circuits
EM3800SX:
POWER
CIRCUIT 1
POWER
CIRCUIT 2
POWER CIRCUIT 1
POWER CIRCUIT 2
120V 30A
120V 20A (in total)
120V 20A (in total)
120V/240V 120V ONLY
& 120/240V 20A 4A 4B
4A 4B

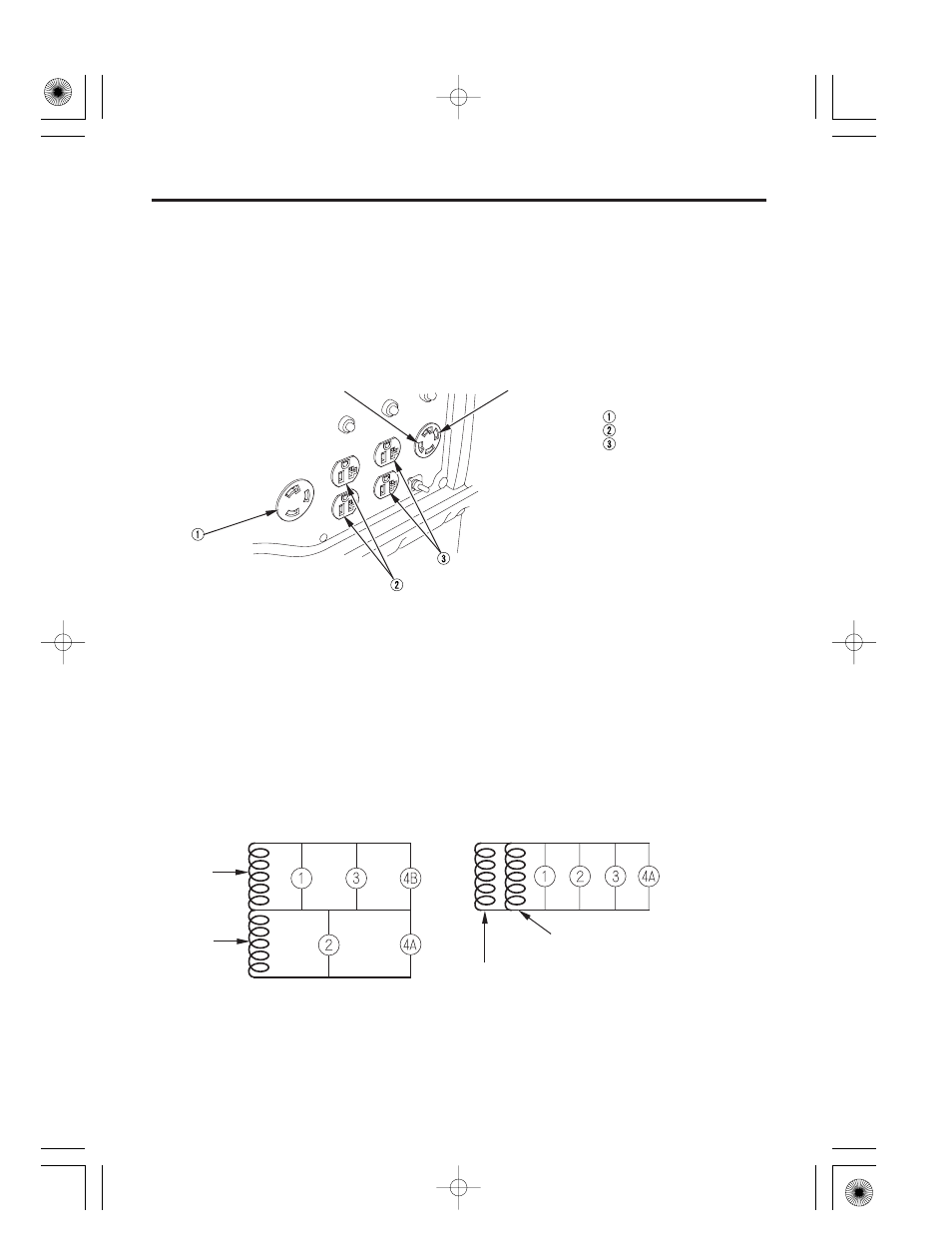

The control panel, shown below, has a voltage selector switch and
four receptacles. Receptacle
4, the 240-volt receptacle, has two
powered terminals, 4A and 4B.
This generator is equipped with two power generating circuits. When
the voltage selector switch is in the 120V/240V position, each of the
two power producing circuits supplies power to specific receptacles.
When the voltage selector switch is in the 120V ONLY position, the
power producing circuits operate in parallel, sharing the total load
connected to terminal 4A and receptacles 1, 2, and 3.
