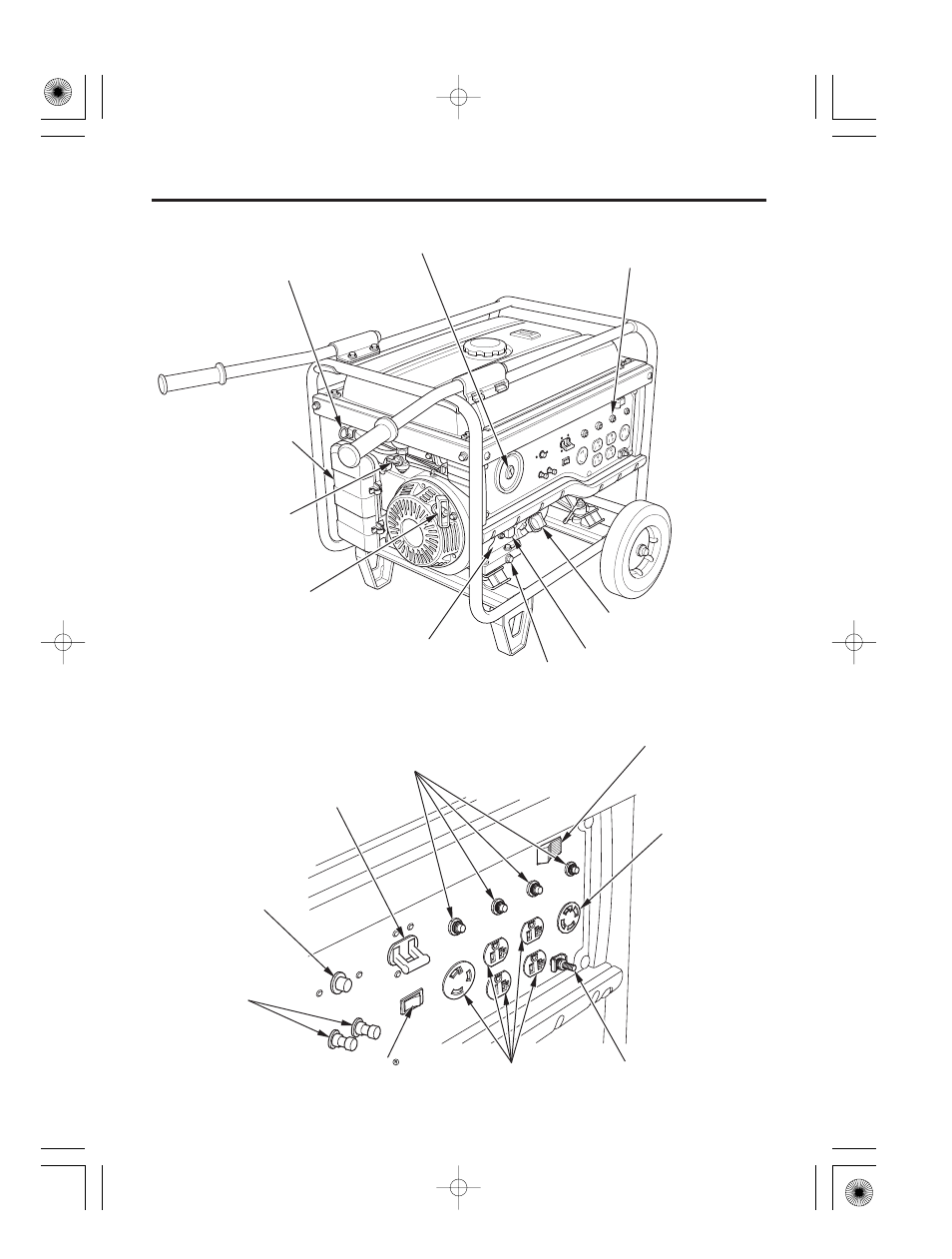

COMPONENT IDENTIFICATION
CONTROL PANEL
CHOKE ROD
ENGINE SWITCH
CONTROL PANEL
AIR CLEANER
FUEL VALVE LEVER
ENGINE SERIAL NUMBER
AC CIRCUIT PROTECTORS
AUTO THROTTLE
SWITCH
120 ONLY
120/240
VOLTAGE SELECTOR SWITCH
DC CIRCUIT
PROTECTOR
DC OUTPUT
TERMINAL
AC CIRCUIT BREAKER
1
FUSE
1:Except EM3800SX
OIL DRAIN PLUG
OIL FILLER CAP/DIPSTICK
STARTER GRIP
GROUND TERMINAL
120/240V AC
RECEPTACLE
120V AC RECEPTACLES
