accessories

hp digital copier series

28

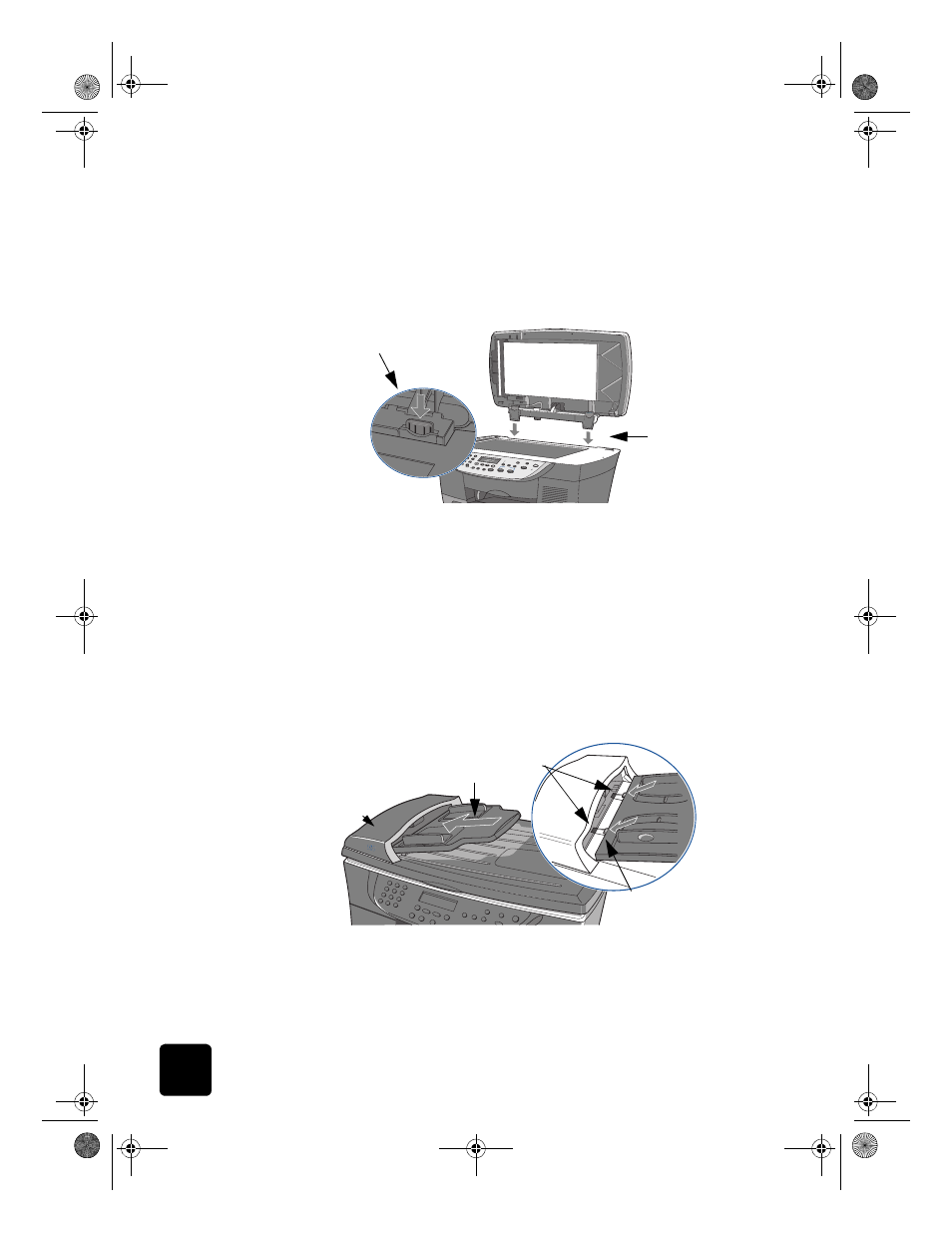

to attach the ADF lid

1

On the ADF lid, unfold the hinges.

2

Pull up both tabs.

3

Insert the ADF lid straight down into the unit.

4

Push down both tabs until they click.

5

Gently close the ADF lid.
Caution! To prevent damaging the unit, do not allow the ADF

lid to fall onto the flatbed surface. Always close the ADF lid

when the product is not in use.

install the ADF

input tray

1

Align the two tabs on the input tray with the two grooves in the ADF

cover.

2

Slide the tray into the grooves as shown until the tray snaps into

place.

3

Replug the power cord into a grounded AC outlet.

hinges

tab above

each hinge

ADF input tray

grooves

ADF cover

tab
