54

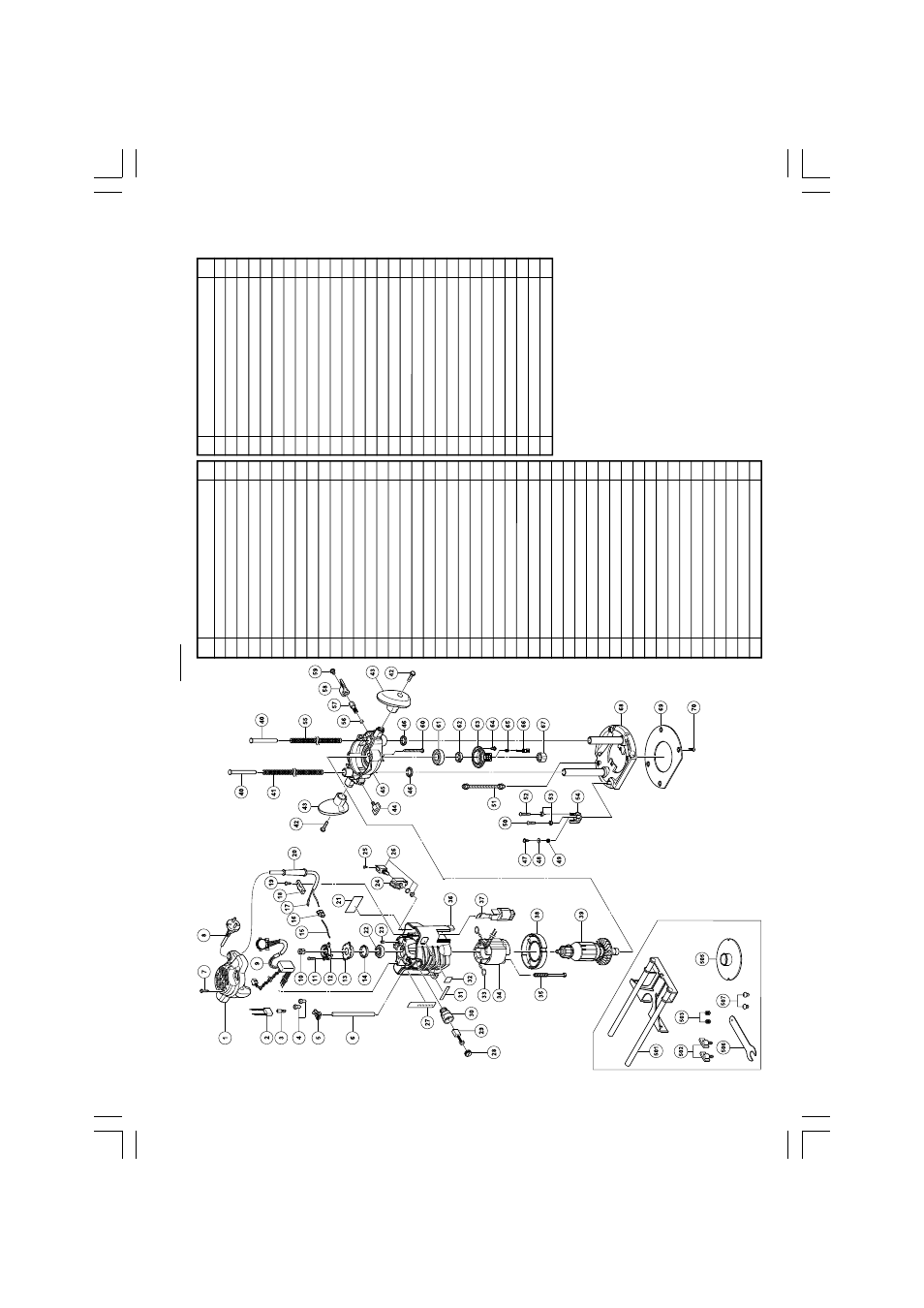

M12VE
Item
Part Name
Q’TY
No.
1
TOP COVER
1
2
NOISE SUPPRESSOR
1
3
TERMINAL M4.0
1
4
CONNECTOR 50092
2
5
MAEKER
1
6
STOPPER POLE (A)
1
7
TAPPING SCREW (W/FLANGE) D4
× 20
2
8
CORD
1
9
CONTROLLER
1
10
MAGNET
1
11
TAPPING SCREW D4
× 16
2
12
MP HOLDER
1
13
BEARING BUSHING
1
14
RUBBER RING
1
15
INTRNAL WIRE
1
16
PILLAR TERMINAL
1
17
TERMINAL
1
18
CORD CLIIP
1
19
TAPPING SCREW (W/FLANGE) D4
× 16
2
20
CORD ARMOR
1
21
NAME PLATE
1
22
BALL BEARING 6200VVCMPS2L
1
23
HEX. SOCKET SET SCREW M5
× 82
24
SWITCH HOLDER
1
25
MACHINE SCREW (W/WASHER) M3.5
× 6
2
26
SNAP SWITCH
1
27
SCALE
1
28
BRUSH CAP
2
29
CARBON BRUSH
2
30
BRUSH HOLDER
2
31
HITACHI LABEL
1
32
LABEL
1
33
BRUSH TERMINAL
2
34
STATOR ASS'Y
1
35
HEX. HD. TAPPING SCREW D5
× 70
2
36
HOUSING ASS'Y
1
37
LEVER
1
38
FAN GUIDE
1
39
ARMATURE
1
40
SPRING GUIDE
2
41
SPRING
1
42
MACHINE SCREW (W/WASHERS) M6
× 30
2
43
HANDLE
2
44
WING BOLT M6
× 15
1
45
END BRACKET
1
46
FELT
2
47
MACHINE SCREW (W/WASHERS) M4
× 8
1
48
WASHER (B)
1
49
SPRING (A)
1
50
MACHINE SCREW M5
× 20
1
51
M8 SCREW
14
52
MACHINE SCREW M5
× 35
1
53
NUT M5
2
54
STOPPER BLOCK
1
55
SPRING
1
56
LOCK PIECE
1
57
LOCK SCREW M10
1
58
LEVER (A)
1
59
MACHINE SCREW (W/WASHERS) M6
× 10
1
60
TAPPING SCREW D5
× 50
4
61
BALL BEARING
1
62
THRUST NUT
1
63
BEARING COVER
1
64
MACHINE SCREW (W/WASHERS) M4
× 12
3
65
LOCK SPRING(A)
1
66
PUSHING BUTTON
1
67
COLLET CHUCK 12MM
1
68
BASE
1
69
SUB BASE
1
70
SEAL LOCK FLAT HD. SCREW M5
× 14
4
501
PARALLEL GUIDE
1
502
WING BOLT M6
× 15
2
503
LOCK SPRING
2
505
TEMPLATE GUIDE
1
506
WRENCH (B)
1
507
MACHINE SCREW M5
× 62
Item
Part Name
Q’TY
No.
