Magnafire Series Coal Stoves

6

3-90-70746R11_06/13

2.3 ASSEMBLY.

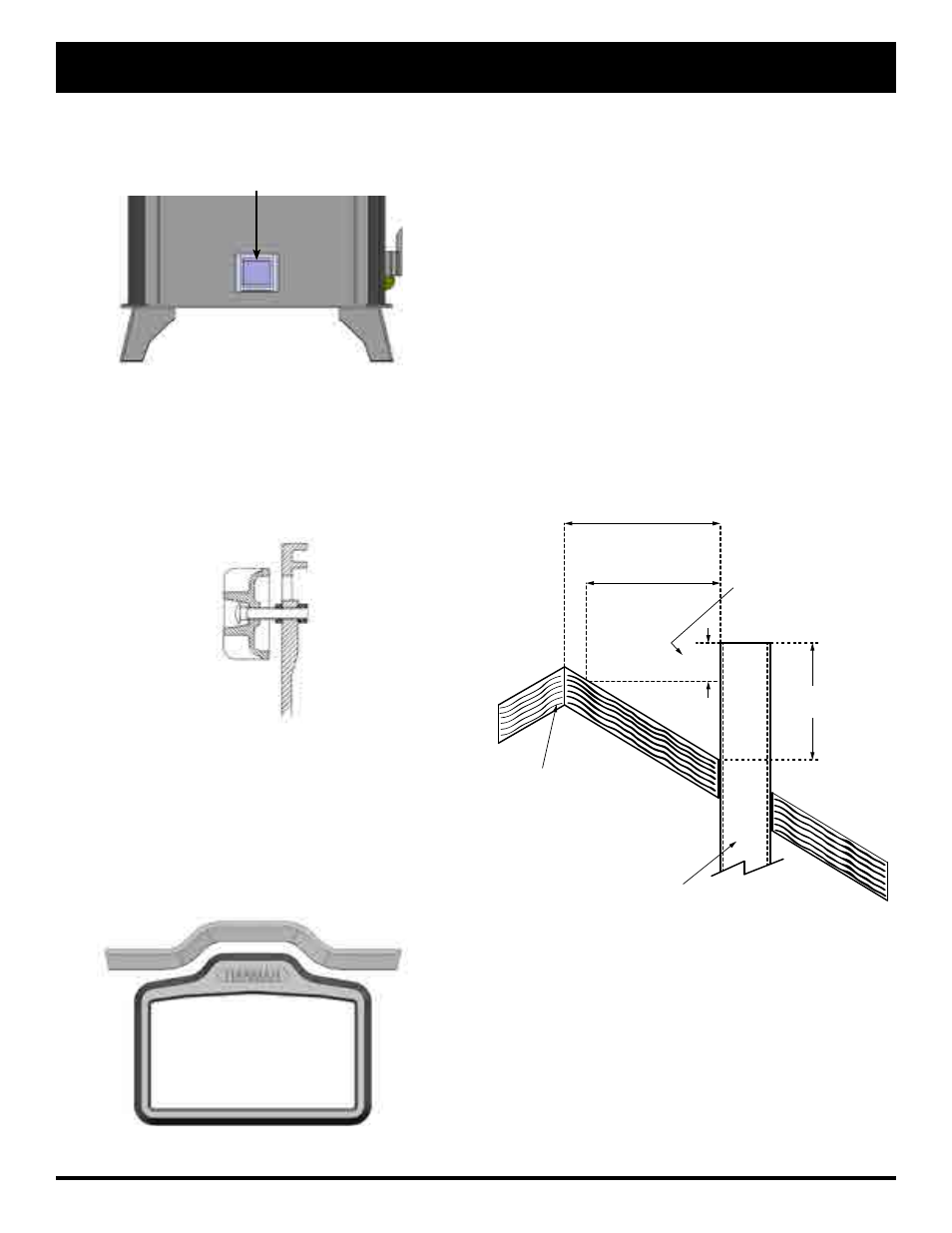

Slide the blower into the slotted bracket on the rear of the

stove. The blower will rest at the bottom of the slot.

2.4 GENERAL INFORMATION.

Installation Checklist:
A. Have your stove installed by a trained installer. Preferably

one who is certified by the National Fireplace Institute or

similar certification agency.

b. before starting Installation, check for proper clearance to

combustibles where the stove is going to be located.

C. Never vent a solid fuel burning appliance into a flue

serving another appliance.

D. Have the chimney inspected and thoroughly cleaned.

Inspect that it is a Class “A” chimney either masonry or

factory built. If it is a manufactured chimney, ensure that

it is installed as per the manufacturers requirements. be

sure that the chimney is tall enough. Solid fuel chimneys

fall under a general rule, 16 ft. minimum height, 2 ft. taller

than anything within 10 ft., and 3 ft. above where it passes

through the roof line. The chimney must be capable of a

minimum .06 inches of water column of draft when the

stove is burning.

Installation

E. Limit the amount of connector pipe. Position the stove as

close to the flue as possible. (8 ft. or less)

No more than two 90° elbow fittings should be used.
Any horizontal connector pipe should have at least 1/4 in. of

rise per foot in length. A barometric damper may be installed

to prevent excessive or erratic draft.

MANUAL DAMPERS OR “HEAT SAVERS” MUST

NEVER BE INSTALLED IN THE FLUE PIPE. IMPROPER

OPERATION COULD RESULT IN DEATH.

The viewing glass is installed between the door and the

window frame. The glass gasket is installed only on the

sides of the glass panel. The top and bottom of the glass are

open to provide air-wash and secondary air to the firebox.

The glass frame is secured to the door with four bolts.
The Mark II and Mark III also have a top trim piece which

bolts onto the top of the door.
be sure the frame bolts and trim bolts are secured.

The shaker handle bolts onto the shaker block using the

bolts and lock washers provided.
The draft control is bolted through the hole in the center of

the ash door as shown below. The knob should spin freely

and open to a distance of about 1/4 inch from the door

surface, while being able to close against the face of the

door.

More than 10 Ft. (3 m)

10 Ft. (3 m)

2 Ft. (.6 m) Min

Height necessary

above any roof surface

within 10 Ft. (3 m)

3 Ft. (.9 m) minimum

above exit point

Ridge

Chimney

The three foot, two foot, ten foot rule
