Magnafire Series Coal Stoves

3

3-90-70746R11_06/13

Introduction

Thank you for purchasing a Harman® Magnafire coal stove. The Magnafire series has been designed and built to last.

Whether you’re heating a room or heating your whole house, you’ve made the right choice. Please read this entire instruction

manual before attempting to install or operate your new stove. If you have further questions regarding your new stove,

contact your Harman® dealer. Follow these instructions and you will have many years of warmth and comfort enjoying your

new coal stove.
If you are a first-time coal burner, keep in mind that you will not have instant success with maintaining a fire. No one does.

Following these instructions should help you with the basic principals.

Safety Notice:

Stove is hot while in operation. Keep combustibles such as furniture, fuel, and draperies at least 36 inches away

from the appliance.
Do not leave small children unattended while in the room with this heater.
Always wear gloves when attending to the stove.
This stove is not an incinerator. Do not burn garbage, painted or treated wood, or flammable liquids like gasoline

kerosene, or engine oil.

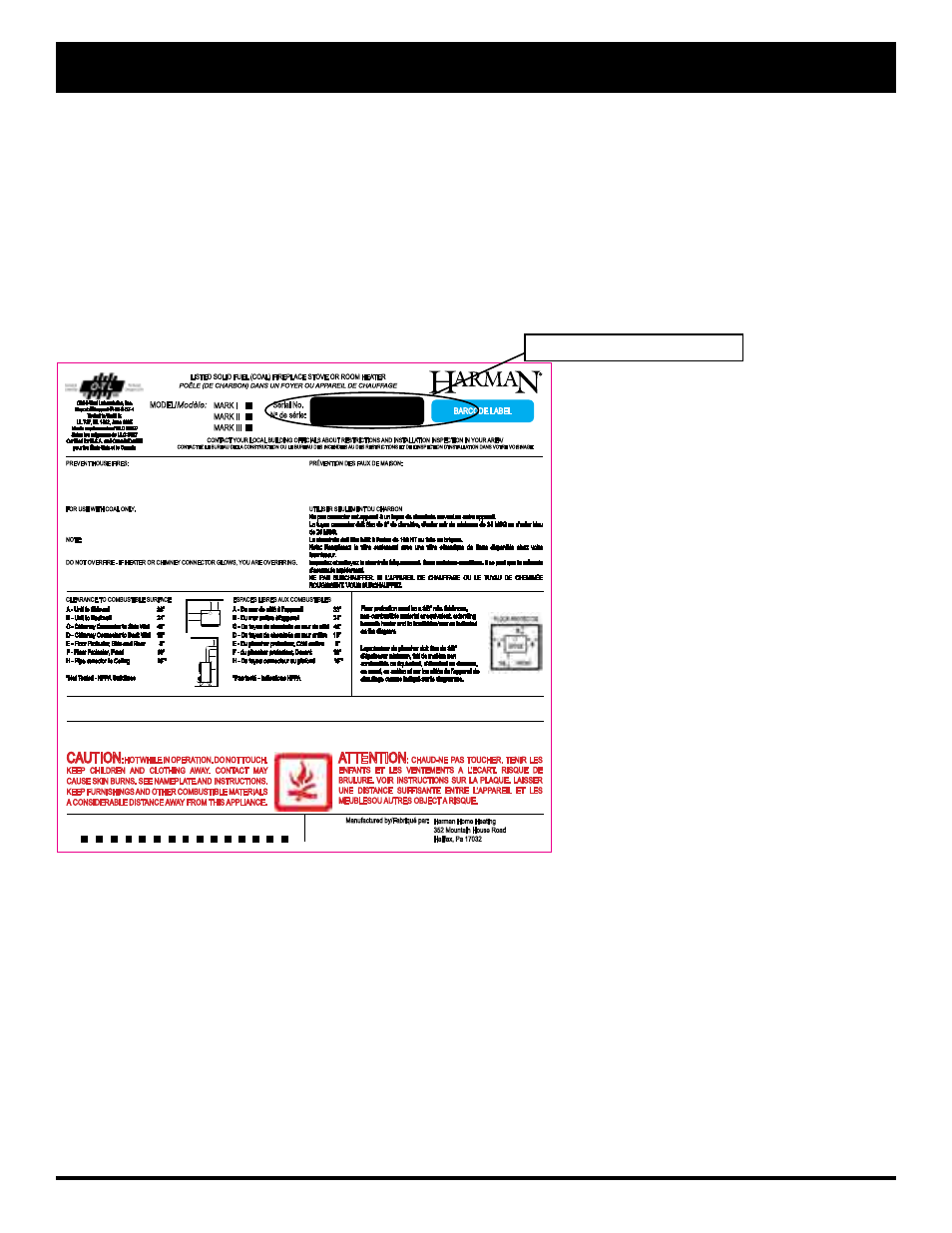

Harman Mark Series Stove

Label measures: 9.5" high X 8.5" wide

OMNI-Test Laboratories, Inc.

Report #/Rapport #135-S-07-4

Tested to/Testé à:

UL 737, UL 1482, June 1985

Meets requirements of ULC S627/

Selon les exigences de ULC S627

Certifi ed for U.S.A. and Canada/Certifi é

pour les États-Unis et le Canada

BARCODE LABEL

008

Serial No.

N

o

de série:

CAUTION

: HOT WHILE IN OPERATION. DO NOT TOUCH.

KEEP CHILDREN AND CLOTHING AWAY. CONTACT MAY

CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS.

KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS

A CONSIDERABLE DISTANCE AWAY FROM THIS APPLIANCE.

ATTENTION

: CHAUD-NE PAS TOUCHER. TENIR LES

ENFANTS ET LES VENTEMENTS A L’ECART. RISQUE DE

BRULURE. VOIR INSTRUCTIONS SUR LA PLAQUE. LAISSER

UNE DISTANCE SUFFISANTE ENTRE L’APPAREIL ET LES

MEUBLESOU AUTRES OBJECT A RISQUE.

LISTED SOLID FUEL (COAL) FIREPLACE STOVE OR ROOM HEATER

POÊLE (DE CHARBON) DANS UN FOYER OU APPAREIL DE CHAUFFAGE

PREVENT HOUSE FIRES:

Install and use only in accordance with manufacturer’s installation and operation instructions and

local building codes. In absence of any local codes, installation must meet minimum requirements of

NFPA 211 in USA. Refer to manufacturer’s instructions and local codes for precautions required for

passing chimney through a combustible wall or ceiling. Inspect and clean chimney system frequently

in accordance with manufacturer’s instructions.

FOR USE WITH COAL ONLY.

Don’t connect this stove to a chimney serving another appliance.

Flue connector pipe must be 6” diameter, minimum 24 MSG black or 26 MSG blue steel.

Chimney must be factory built 103HT or masonry.

NOTE: Replace glass only with 5mm ceramic glass available from your dealer.

Inspect and clean chimney frequently. Under certain condictions of use, creosote buildup may occur

rapidly.

DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR GLOWS, YOU ARE OVERFIRING.

MODEL/Modèle: MARK I

MARK II

MARK III

CONTACT YOUR LOCAL BUILDING OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA/

CONTACTEZ LE BUREAU DE LA CONSTRUCTION OU LE BUREAU DES INCENDIES AU DES RESTRICTIONS ET DE L’INSPECTION D’INSTALLATION DANS VOTRE VOISINAGE

PRÉVENTION DES FAUX DE MAISON:

Installez et utilisez en accord avec les instructions d’installation et d’opération du fabricant et des codes

locaux. S’il n’y a pas de codes lacaux. l’installation doit suivre kes exigences minimum de NFPA 211

aux États-Unis. Référez vous aux instructions du fabricant et des codes locaux pour les précautions

pour passer une cheminée à travers un mur ou unplafond combustibles. Inspectez et nettoyez le

systèm de chiminée fréquemment en accord avec les instructions du fabricant.

UTILISER SEULEMENT DU CHARBON

Ne pas connecter cet appareil à un tuyau de cheminée servant un autre appareil.

Le tuyau connector doit être de 6” de diamètre, d’acier noir de minimum de 24 MSG ou d’acier bleu

de 26 MSG.

La cheminée doit être bâtit à l’usine de 103 HT ou faite en briques.

Note: Remplacez la vitre seulement avec une vitre céramique de 5mm disponible chez votre

fournisseur.

Inspectez et nettoyez la cheminée fréquemment. Sous certaines conditions. il se peut que la créosote

s’accumule rapidement.

NE PAS SURCHAUFFER. SI L’APPAREIL DE CHAUFFAGE OU LE TUYAU DE CHEMINÉE

ROUGISSENT. VOUS SURCHAUFFEZ.

CLEARANCE TO COMBUSTIBLE SURFACE

A - Unit to Sidewall

33”

B - Unit to Backwall

24”

C - Chimney Connector to Side Wall 42”

D - Chimney Connector to Back Wall 18”

E - Floor Protector, Side and Rear 8”

F - Floor Protector, Front

16”

H - Pipe conector to Ceiling

18”*

*Not Tested - NFPA Guildlines

ESPACES LIBRES AUX COMBUSTIBLES
A - Du mur de côté à l’appareil 33”

B - Du mur arrière àl’appareil 24”

C - Du tuyau de cheminée au mur de côté 42”

D - Du tuyau de cheminée au mur arrière 18”

E - Du plancher protecteur, Côté arrière 8”

F - du plancher protecteur, Devant 16”

H - Du tuyau connecteur au plafond 18”*

*Pas testé - indications NFPA

Floor protection must be a 3/8” min. thickness,

non-combustible material or equivalent, extending

beneath heater and to front/sides/rear as indicated

on the diagram

Leprotecteur de plancher doit être de 3/8”

d’épaisseur minimum, fait de matière non

combustible ou équivalent, s’étendant en dessous,

en avant, en arrière et sur les côtés de l’appareil de

chauffage comme indiqué sur le diagramme.

ELECTRICAL RATING: 115VAC, 60 HZ, 1.1 AMPS

DANGER: Risk of electrical shock. Disconnect power supply before servicing. Route power cord away from unit.

Do not route power cord under or in front of appliance.

PUISSANCE ÉLECTRIQUE: 115VAC, 60 HZ, 1.1 AMPS

DANGER: Il y a risque de choque électrique. Déconnectez le fi l électrique avant le service

Éloignez le fi l électrique de l’appareil. Ne placez pas le fi l électrique sous ou à l’avant de l’appareil.

CAUTION:

RISK OF EXCESSIVE TEMPERATURE AND DAMAGE TO UNIT.

PROPER OPERATION REQUIRES THE USE OF ONLY PEA, NUT & COAL STOVE SIZE

ANTHRACITE COAL

ATTENTION:

IL Y A RISQUE DE TEMPÉRATURES EXCESSIVE ET DE DOMMAGE À

L’APPAREIL. UN BON FONCTIONNEMENT EXIGE L’USAGE D’ANTHRACITE DE CHARBON DE

GROSSEUR D’UN POIS, D’UNE NOIX OU D’UN CHARBON.

Manufactured by/Fabriqué par: Harman Home Heating

352 Mountain House Road

Halifax, Pa 17032

2012 2013 2014 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC

Exempt From EPA Certifi cation under 40 CFR 60.531

Date of Manufacture / Date de fabrication

Rev B

P.N. 3-90-90736

BACKWALL

SIDE

W

ALL

A

C

B

D

STOVE

H

D

B

Please copy your serial number,

from the label on the back of

your stove, to the box below.

THis appliance is also approved for installation into a shop.

Listed by: OMNI-Test Laboratories, INC

Report # 135-S-07-4
