3-90-70746R11_06/13

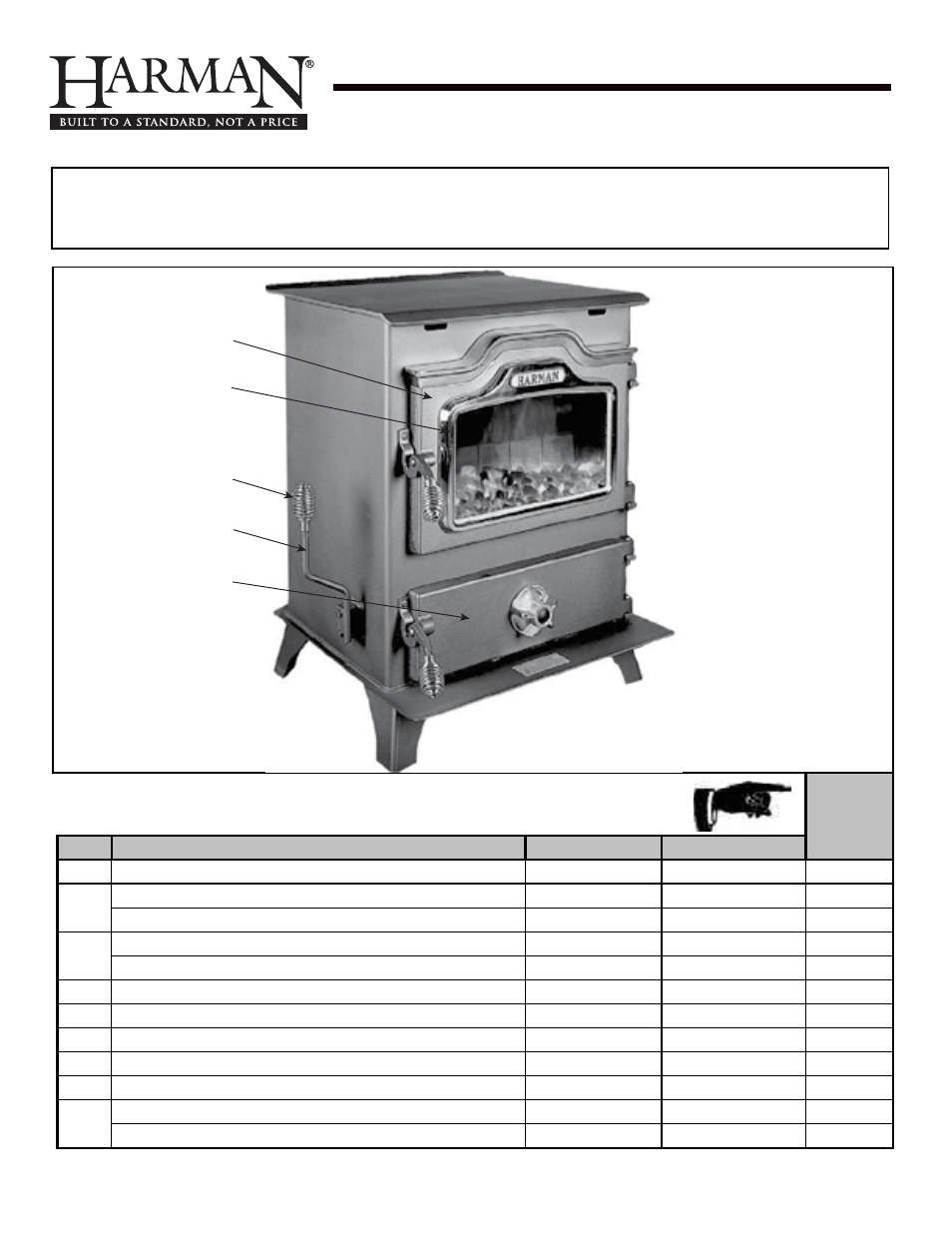

Service Parts
Mark II
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPoRTANT: THIS IS DATED INFoRMATIoN. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Load Door - Roped 1-10-08140A Y
Door Kit Assembly Classic black 1-00-00141-1 Y
Door Kit Assembly (Gold) No longer available 1-00-00141-4
2
Glass Frame Cast 4-00-00037-1
Glass Frame (Gold) No longer available 3-00-00037-4
Rect Glass 8-1/2” X 14-15/16” 3-40-8501494 Y
Rect Glass 4-1/2” X 8-1/2” (Triple Frame) 3-40-450850 Y
3 Spring Handle 1/2” Pkg of 3 3-40-00086-3-3
4 Short Shaker Handle Weldment 1-10-01001 Y
5 Ash Door Cast 4-00-00213D Y
Draft Control Cast 4-00-00109-1
Draft Control (Gold) No longer available 3-00-00109-4
Additional service parts on following page. 11/12
Mark II
Magnafi re Freestanding Coal Stove
1-70-03225-1 (Black) Ending Manufacturing Date: June 2011
1-70-03225-2 (Charcoal) Ending Manufacturing Date: June 2011
1-70-03225-3 (Goldenfi re) Ending Manufacturing Date: June 2011
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
1
2
3
4
5
1-90-03225-1 (Black w/fDoor)
1-70-03225-4 (Metallic Blue) Ending Manufacturing Date: Jan 2010
1-70-03225-10 (Mojave Red) Ending Manufacturing Date: Jan 2010
1-70-03225-12 (Forest Green) Ending Manufacturing Date: Jan 2010
Retired Units
