Huffy SKM 5200 - Manual (Page 7)

5/99 P/N 205932 7 P/N 205932 5/99
14
36
33
33
34
34
32

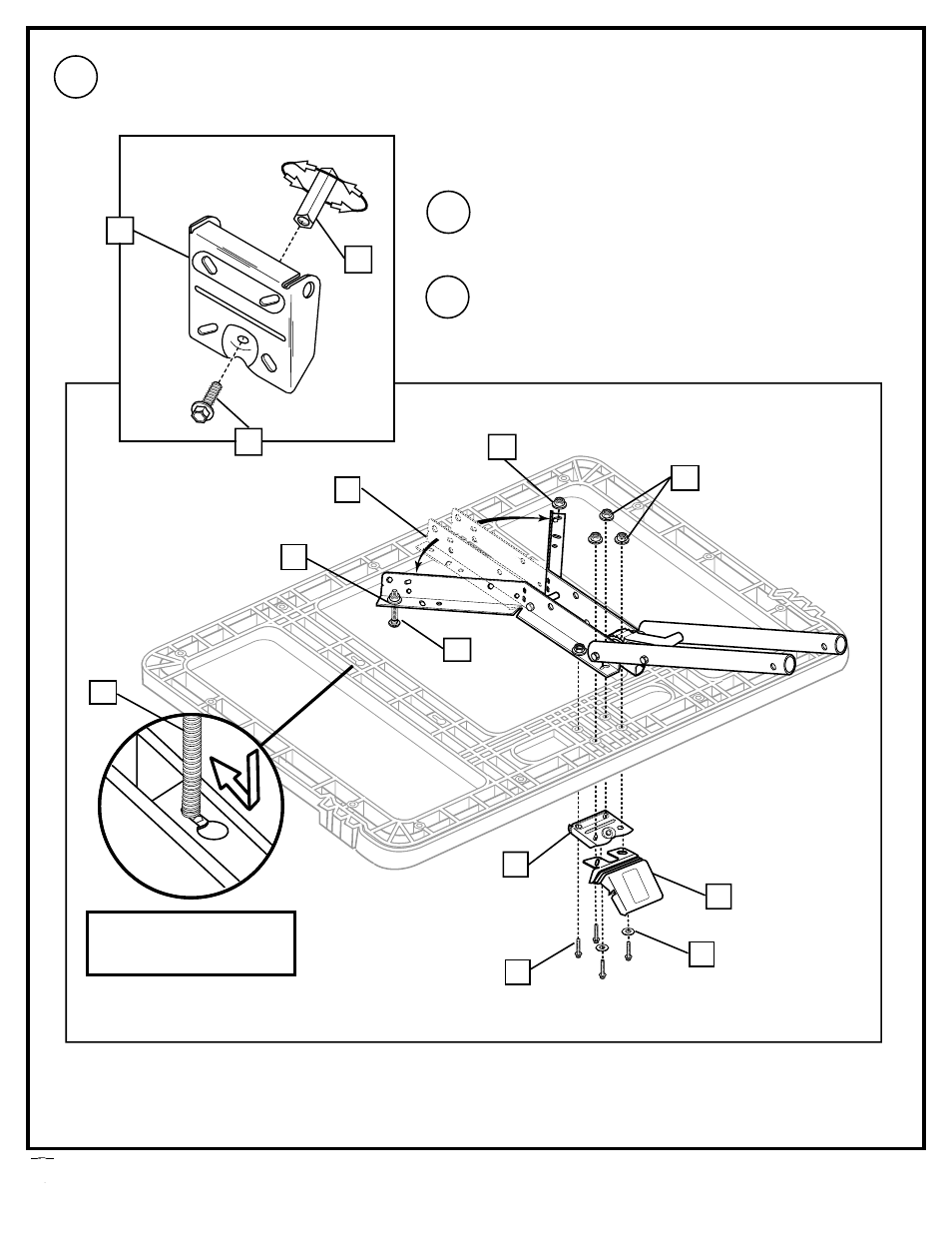

Assemble rim bracket (30).
Tighten completely.
14.
30
KEYHOLE SLOT
31
37
30
35
34
Start with nuts (34) flush against bracket (14), secure rim
assembly and bracket (14) to backboard. NOTE: Rim
mounting nuts and bolts supplied with rim hardware.
Bend bracket (14) to line up with keyhole slots in channel.
Loosely assemble bolts (33) and nuts (34) to bracket (14).
Insert bolt heads into keyhole slots, slide upward and
secure.
15.
16.
