Huffy SKM 5200 - Manual (Page 13)

5/99 P/N 13 P/N 205932 5/99
PARTS LIST
Item Qty. Part No. Description
1 1 982416 Top Pole Section, (Black)
2 1 902415 Middle Pole Section, (Black)
3 1 952415 Bottom Pole Section, (Black)
4 1 202422 Front Panel
5 1 202420 Base
6 1 202475 Tank
7 1 202446 Eyebolt 3/8-16 x 4-3/4 Long
8 1 202428 Rod, 1/2 O.D. x 6 Long
9 1 202431 U-bolt, Teardrop, 3/8-16 x 5-7/16
10 1 202460 Clamp, Saddle
11 2 203218 Washer, 5/16
12 4 203063 Locknut, Nylon Insert, 3/8-16
13 1 202821 Disk, 2-3/4 OD x 3/16 Thick
14 2 900846 Board Bracket, (Black)
15 1 201122 Bolt, Hex Head, 3/8-16 X 3-1/4 Long
16 2 201133 Support Bracket
17 2 201129 Spacer, 1-3/4 Long
18 1 800878 Pawl & Pin Assembly
19 1 201126 Release Lever
20 1 201124 Locknut, Hex Head, 3/18-16
21 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4 Long
22 1 203493 Locknut, Hex Head, 1/4-20
23 4 900843 Elevator Tube, (Black)
24 5 201640 Bolt, Hex Head, 1/2 x 7-1/4 Long
25 4 201642 Plastic, Spacer
26 1 201140 Wave Washer
27 1 201156 Ratchet
28 6 201646 Locknut, Hex Head, 1/2-13
Item Qty. Part No. Description
29 1 201125 Spring
30 1 900855 Rim Bracket, (Black)
1 900854 Rim Bracket, (Red)
31 1 202791 Bolt, Hex Flange, 3/8-16 x 3/4
32 1 202793 Nut Coupling, 3/8-16 x 1-3/4
33 2 203217 Carriage Bolt, 5/16-18 x 1-1/2
34 6 203100 Hex, Flange Nut, 5/16-18
35 4 201611 Bolt, Hex Flange, 5/16-18 x 3
36 5* 203309 Washer 1” O.D.
37 1 202899 Spring Cover, (Black)
1 202898 Spring Cover, (Red)
38 1 201139 Bolt, Hex Head, 1/2-13 x 4-1/2 Long
39 2 900867 Plate, Triangle, (Black)
40 1 202430 Pole Cap,Teardrop, (Black)
41 1 202471 Plug, Tank Cap, (Black)
42 1 202438 Black, Nylon Rope
43 1 203124 Ground Screw
44 1 900931 Rim, (Black)
1 900930 Rim, (Red)
45 1 202789 Bolt, Hex, 3/8-16 x 6
46 1 202790 Spacer, 5-1/4 x 1/2 O.D.
47 1 202788 Spring, Black Powder Coated
48 1 202792 Bolt, 3/8-16 x 3-1/2
49 12* 200121 Clip, Net Holder, (Black)
12* 200120 Clip, Net Holder, (Red)
50 1 Net
51 1 202795 Label, Logo
52 1 201264 Label, Height Adjustment and Moving
Item #7 (1)
Item #8 (1)
Item #11 (2)

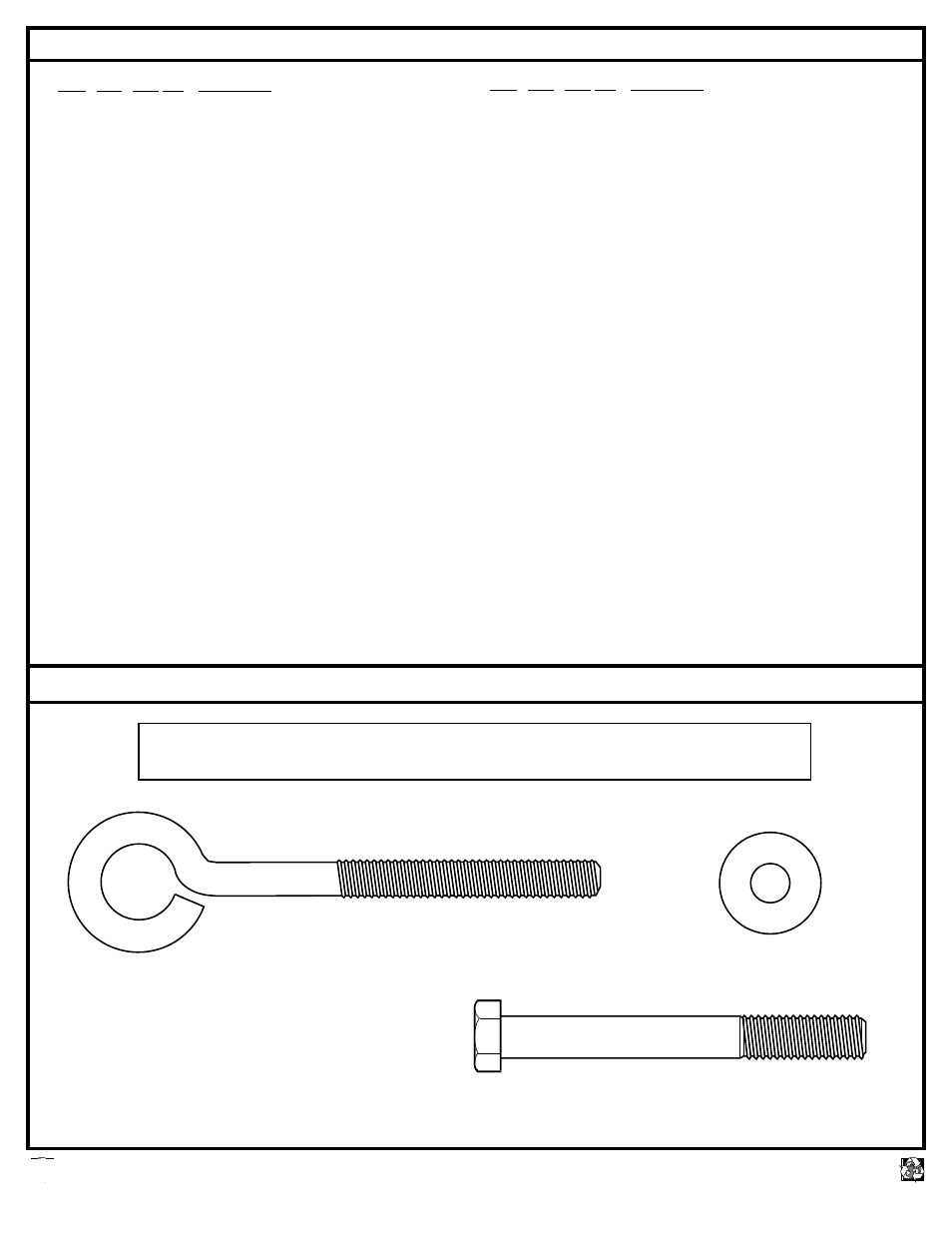

HARDWARE IDENTIFIER
HARDWARE IDENTIFIER (CONTINUED)
Item #12 (4)
Item #15 (1)
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
