Pipe Linkage Kit
Pipe linkage kits are available from Honeywell and can be used for linkage lengths from 24 to 240 inches (61 to 610 cm). The
kits include the mechanical pipe couplings, load rod end (left-hand thread), connecting rods and locking nuts. See Figure 4.
The actuator rod end (right-hand thread), nut and bolt are supplied with the actuator. The customer must supply a piece of
schedule 40 pipe 2 ½” * (both ends with right-hand NP threads) and a nut and bolt to connect the rod end to the load. Pipe
linkage kits can be ordered with the Actuator using Table VIII of the Model Selection Guide.
+ +
Pipe Length *
Linkage Minimum = 24in. (61 cm)
Linkage Maximum = 240in. (610 cm)
This rod end
supplied on Actuator
with crank arm
*Pipe length = Overall linkage length minus (-) 20 inches (51 cm).

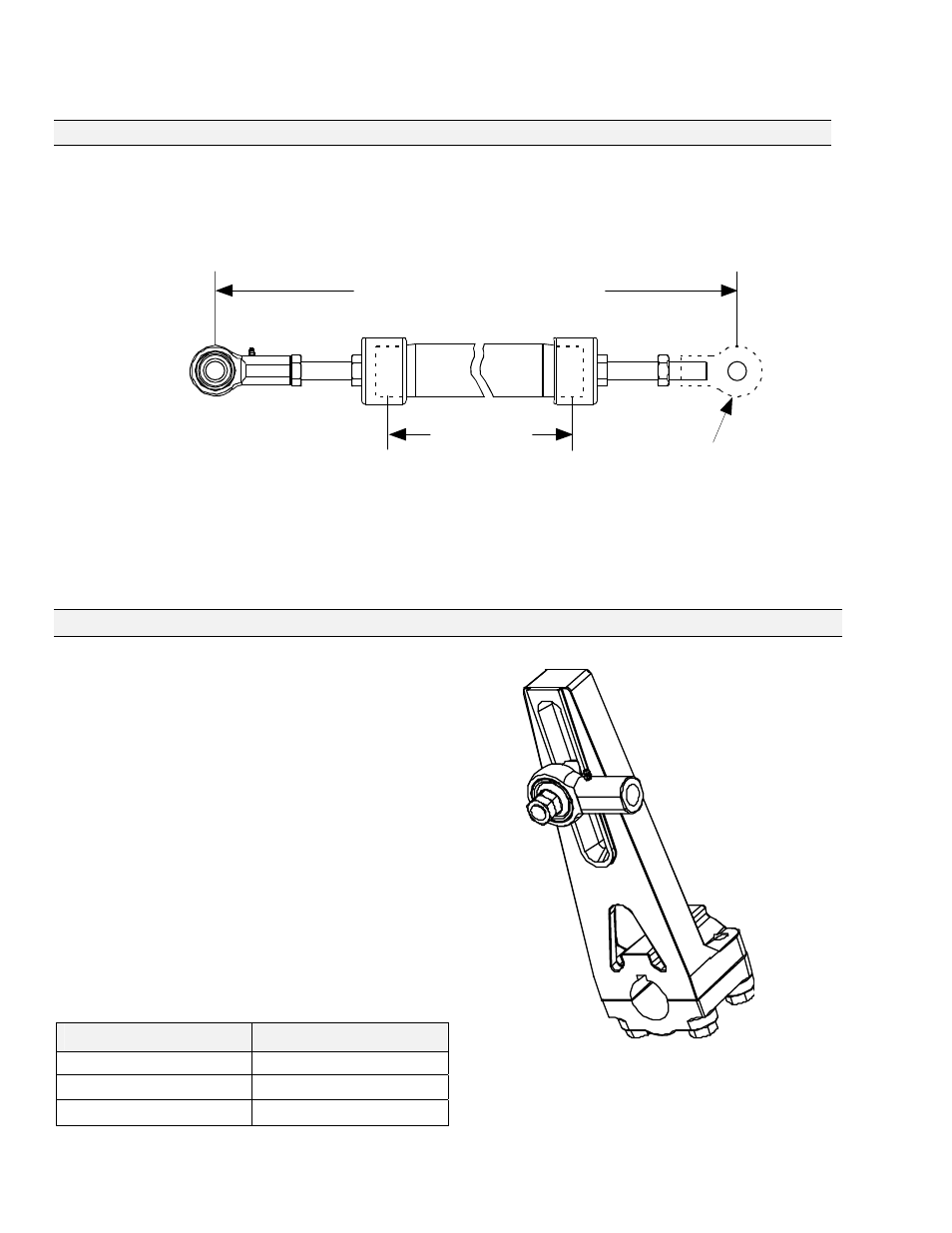

Figure 4 Pipe Linkage Kit
Actuator Crank Arm
The 11280S Series Actuator comes standard with an 8” to
14” adjustable radius crank arm. The crank arm uses a
standard right-hand thread 1” rod end to compliment the
pipe linkage kit.
The crank arm for the 11284S, 11285S and 11286S has a
2” shaft hole, while the crank arm from the 11287S, 11288S
and 11289S has a 2 ½” shaft hole.
Recommended Bolt Torque
The table below lists the type of bolts to be used and the
recommended torque for each bolt.
Bolt Type Torque
Clamp bolts 220 lb.-ft
Rod End Bolt 220 lb.-ft
Figure 5 11280S Crank Arm
Jam nuts 100 lb.-ft
