61-86-03-13
Page 3
Local Display and Keypad
Configuration and set-up is through the local HMI, consisting of a display and keypad interface (Figure 2). A high intensity
10-character LED display and simple pushbuttons provide quick access for actuator set up and status information. If relay
outputs are specified, all configuration can be done through either the local HMI interface. If mechanical switches are
specified, then the user must manually set the auxiliary output.
DISPLAY MAN/AUTO FUNCTION SET UP
STALLED
ALARM
MANUAL
AUTO
Upper Display
(Four Characters)
Lower Display
(Six Characters)
LED Status
Indicators
Control Arm Rotation
Indicators
CCW CW
Pushbuttons to
Access Actuator
Set Up, Status and
Calibration
Parameters.

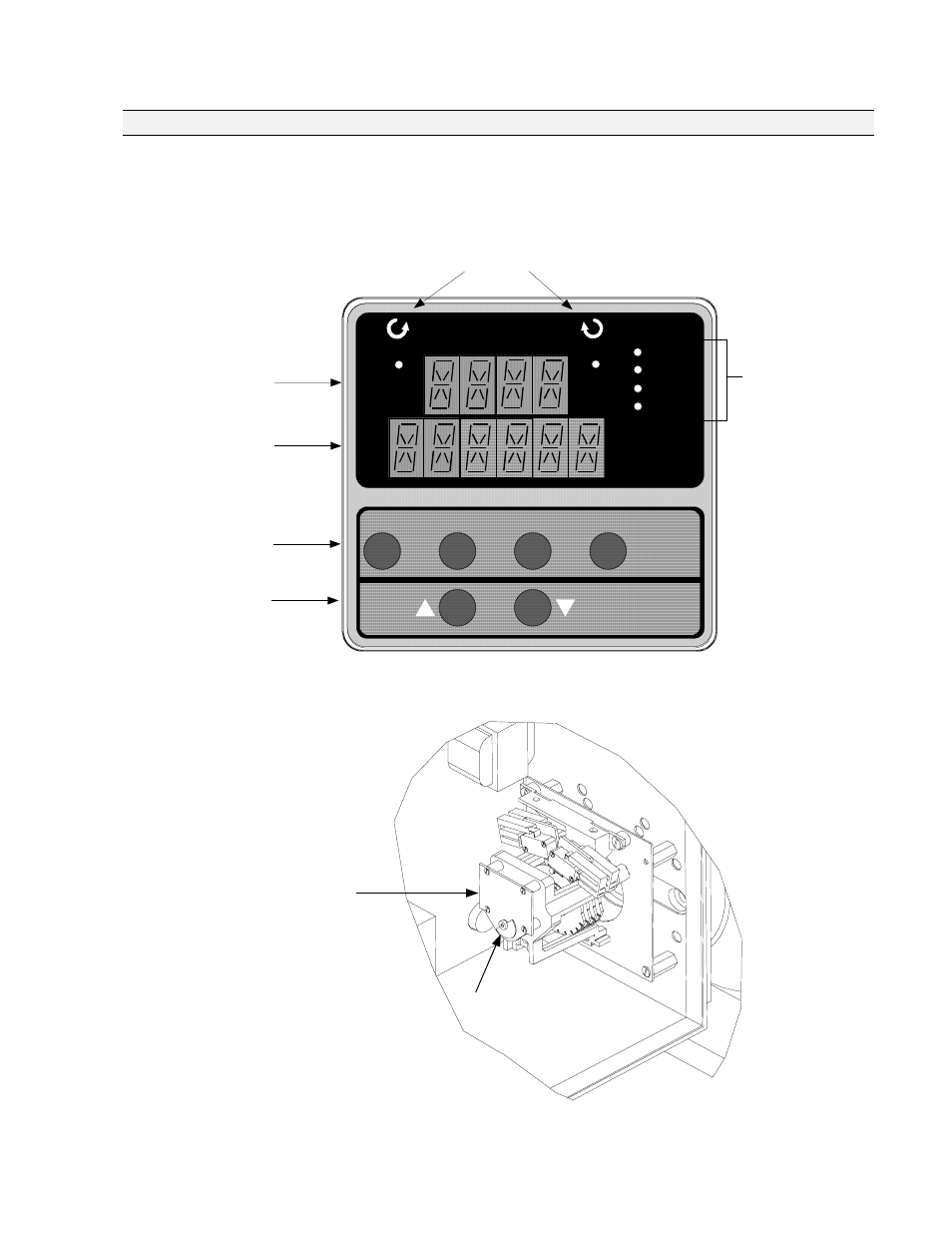

Figure 2 Local HMI (Display and Keypad)
Non-Contact Sensor Spoiler
Non-Contact Sensor
Sensing PW A
Figure 3 Non-Contact Sensor Assembly
