CONTROLS AND FEATURES
POWER
TRIM/TILT
SWITCH
POWER TRIM/TILT
SWITCH (RIGHT)
POWER TRIM/TILT
SWITCH (LEFT)
OIL PRESSURE
INDICATOR LIGHT
OVERHEAT
INDICATOR LIGHT
BUZZER
IGNITION
SWITCH
EMERGENCY
STOP SWITCH
LANYARD

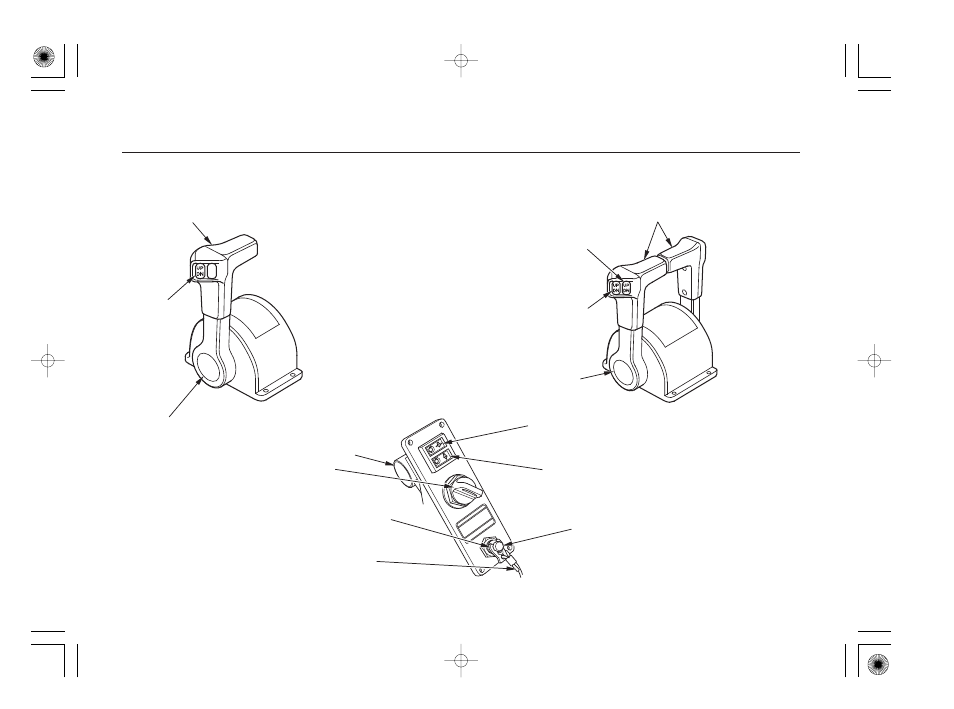

CONTROL PANEL
(for PANEL/TOP-MOUNT type)
(SINGLE TOP-MOUNT REMOTE CONTROL) (DUAL TOP-MOUNT REMOTE CONTROL)
EMERGENCY
STOP SWITCH CLIP
EMERGENCY
STOP SWITCH
FAST IDLE
BUTTON
FAST IDLE
BUTTON
GEARSHIFT/THROTTLE
CONTROL LEVER GEARSHIFT/THROTTLE
CONTROL LEVERS
