A) Open HARDWARE BAG FOR STEP 2.
B) Carefully pull the CONSOLE CABLES through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
C) Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (A), 4 SPRING WASHERS (B) and 4 FLAT
WASHERS (C).
D) Insert the TOP FRONT COVER, followed by the TOP BACK COVER and snap them together.
E) Slide CONSOLE MAST BOOT down to seal the console mast hole.

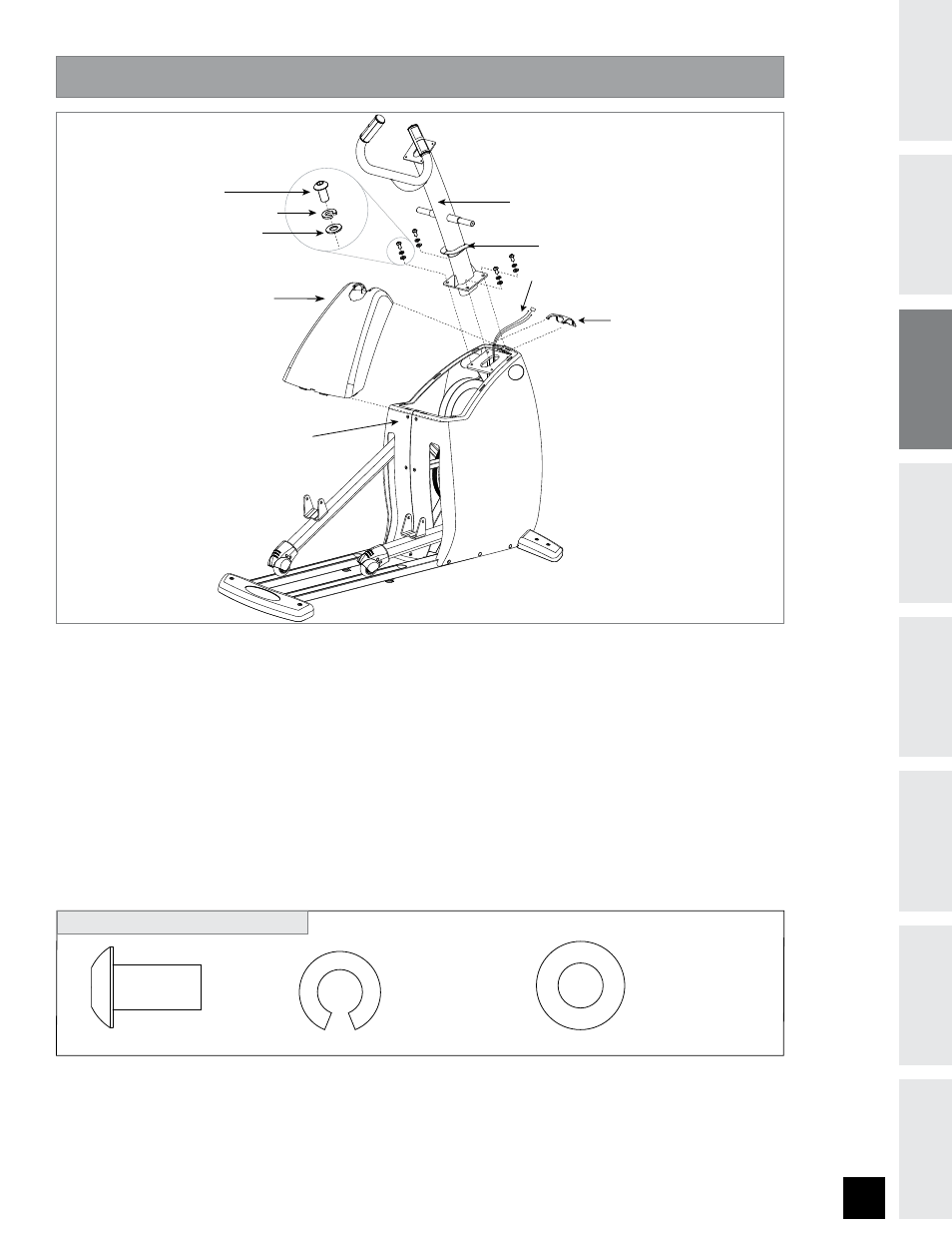

ASSEMBLY STEP 2
CONSOLE MAST
BOLT (A)
SPRING WASHER (B)
FLAT WASHER (C)
MAIN FRAME
CONSOLE MAST BOOT
TOP FRONT COVER
TOP BACK COVER
CONSOLE WIRES
#0-5 "
NN
2UZ 413*/(8"4)&3 #
NN
2UZ '-"58"4)&3 $
NN
2UZ
HARDWARE BAG FOR STEP 2 CONTENTS :
