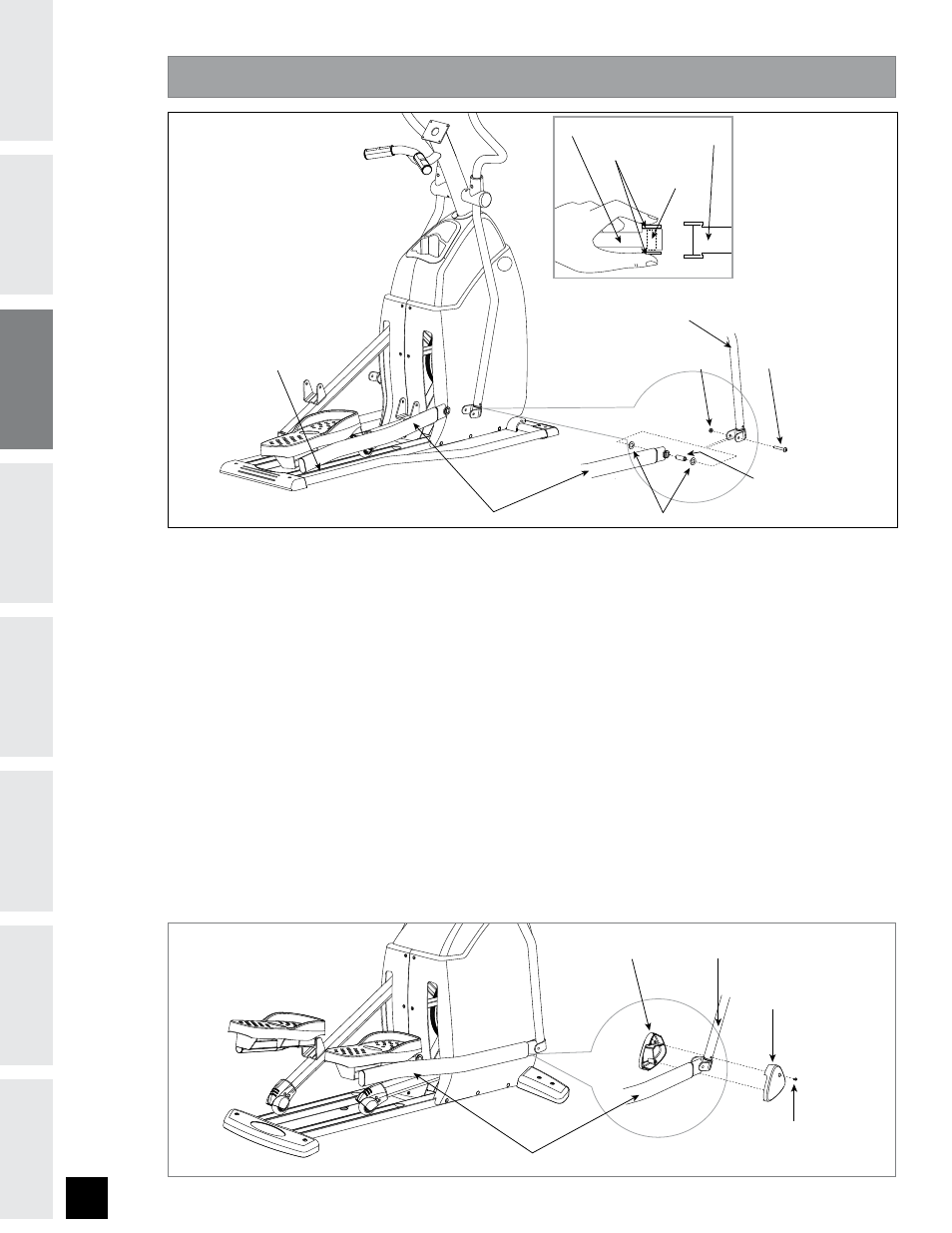

ASSEMBLY STEP 5
A) Open
HARDWARE BAG FOR STEP 5.
B) Slide
SPACER (I) into LOWER HANDLEBAR.
C)
Place TEFLON WASHERS (E) on either side of SPACER (I). While holding TEFLON WASHERS (E) slide LOWER
LINK ARM into bottom end of LOWER HANDLEBAR.
D) Insert
BOLT (H) into LOWER HANDLEBAR and secure using NUT (J).
E) Attach the
OUTSIDE ELBOW COVER to elbow joint using 1 SCREW (F).
F) Snap the
INSIDE ELBOW COVER onto the OUTSIDE ELBOW COVER.
Note the position of the snap tabs before snapping into position.
G) Repeat on other side.
