Horizon Fitness LS 625E - Manual (Page 10)

BEFORE
YOU
BEGIN
10
INTRODUCTION
IMPORT
ANT
PRECAUTIONS
ASSEMBL
Y
BEFORE
YOU
BEGIN
ELLIPTICAL OPERA
TION
LIMITED
W
ARRANTY
TROUBLESHOOTING
&
MAINTENANCE
CONDITIONING
GUIDELINES

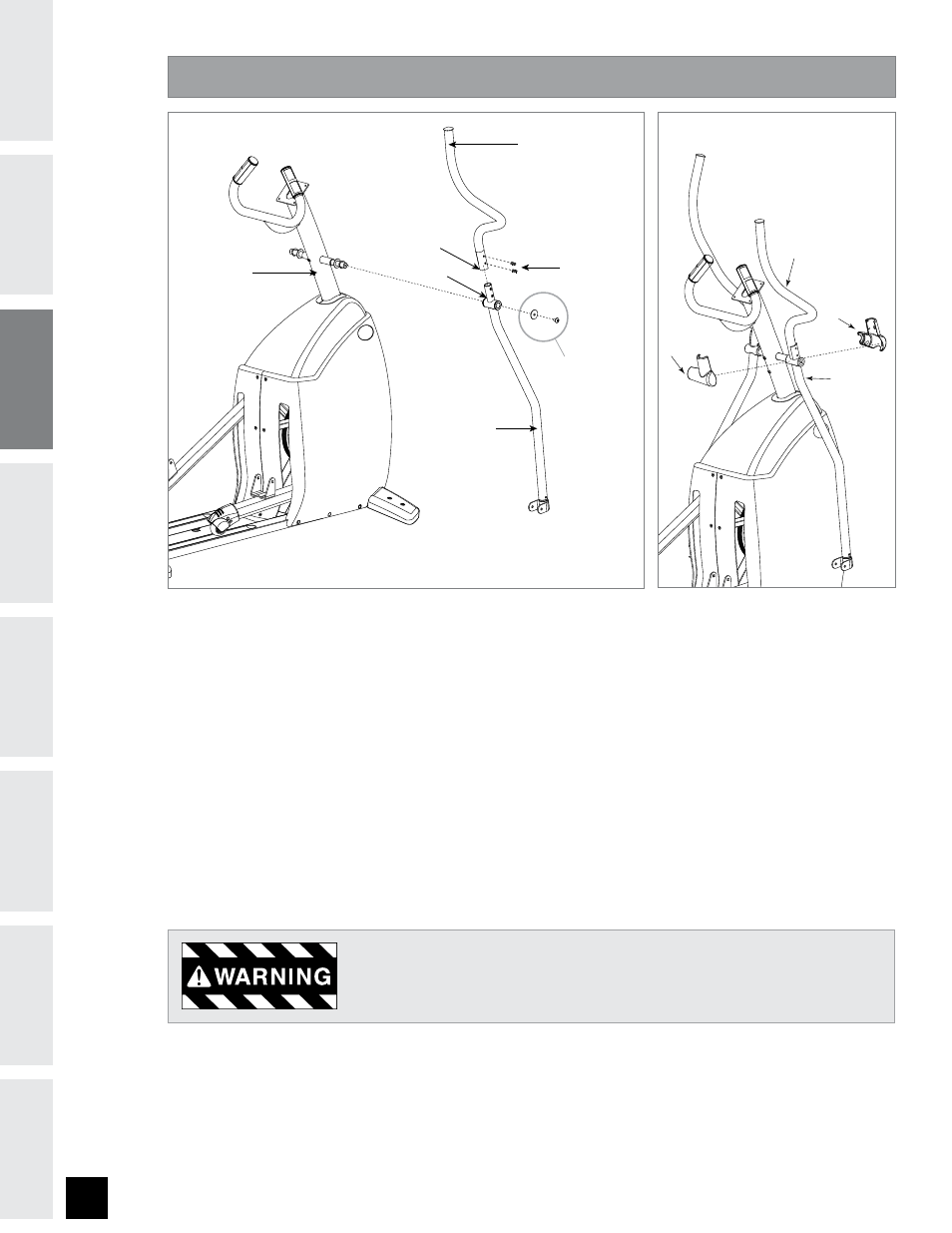

CONSOLE MAST
LOWER HANDLEBAR
PRE-ATTACHED
BOLT & WASHER
UPPER HANDLEBAR
PRE-ATTACHED
SET SCREWS
NOTCH
TAB
NOTE: There is NO hardware bag for this step. All hardware is pre-installed.
A) Remove PRE-ATTACHED BOLT & WASHERS from CONSOLE MAST.
B) Slide LOWER HANDLEBARS onto CONSOLE MAST and attach by re-inserting PRE-ATTACHED BOLT & WASHERS.
C) Slide UPPER HANDLEBARS onto LOWER HANDLEBARS and align NOTCH with TAB making sure handlebars are
joined together completely. Secure UPPER HANDLEBARS to LOWER HANDLEBARS using PRE-ATTACHED SET
SCREWS.
D) Snap the front and back HANDLEBAR COVERS together onto the UPPER HANDLE BARS.
Note the position of the snap tabs on the covers before snapping into position.
E) Repeat on other side.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
ASSEMBLY STEP
FRONT
HANDLEBAR
COVER
BACK
HANDLEBAR
COVER
UPPER
HANDLEBAR
LOWER
HANDLEBAR
