TRACTOR - - MODEL NO. YT16542 (96043002402), PRODUCT NO. 960 43 00-24

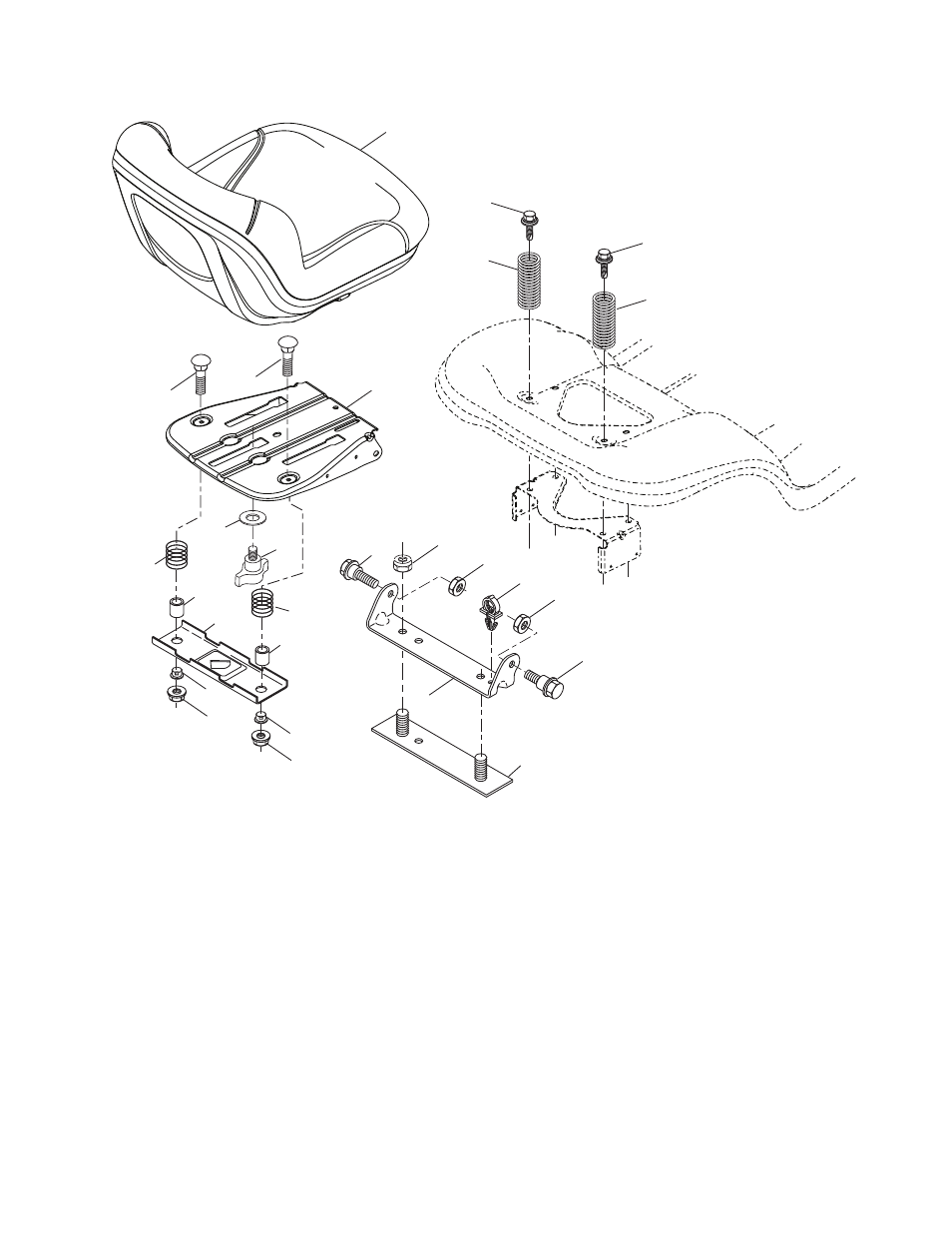

SEAT ASSEMBLY
1 532 19 75-18 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
5 532 14 50-06 Clip, Push In, Hinged
6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 91-80 Pan, Seat
12 532 19 93-70 Bracket Mnt Seat
13 532 12 12-48 Bushing Snap
14 872 05 04-12 Bolt 1/4-20 x 1/2
15 532 13 43-00 Spacer Split
16 532 12 37-40 Spring
17 532 12 39-76 Nut Lock 1/4
19 532 19 93-72 Knob Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
42 532 19 93-71 Washer Cup Seat
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
