32
TRACTOR - - MODEL NO. YT16542 (96043002402), PRODUCT NO. 960 43 00-24

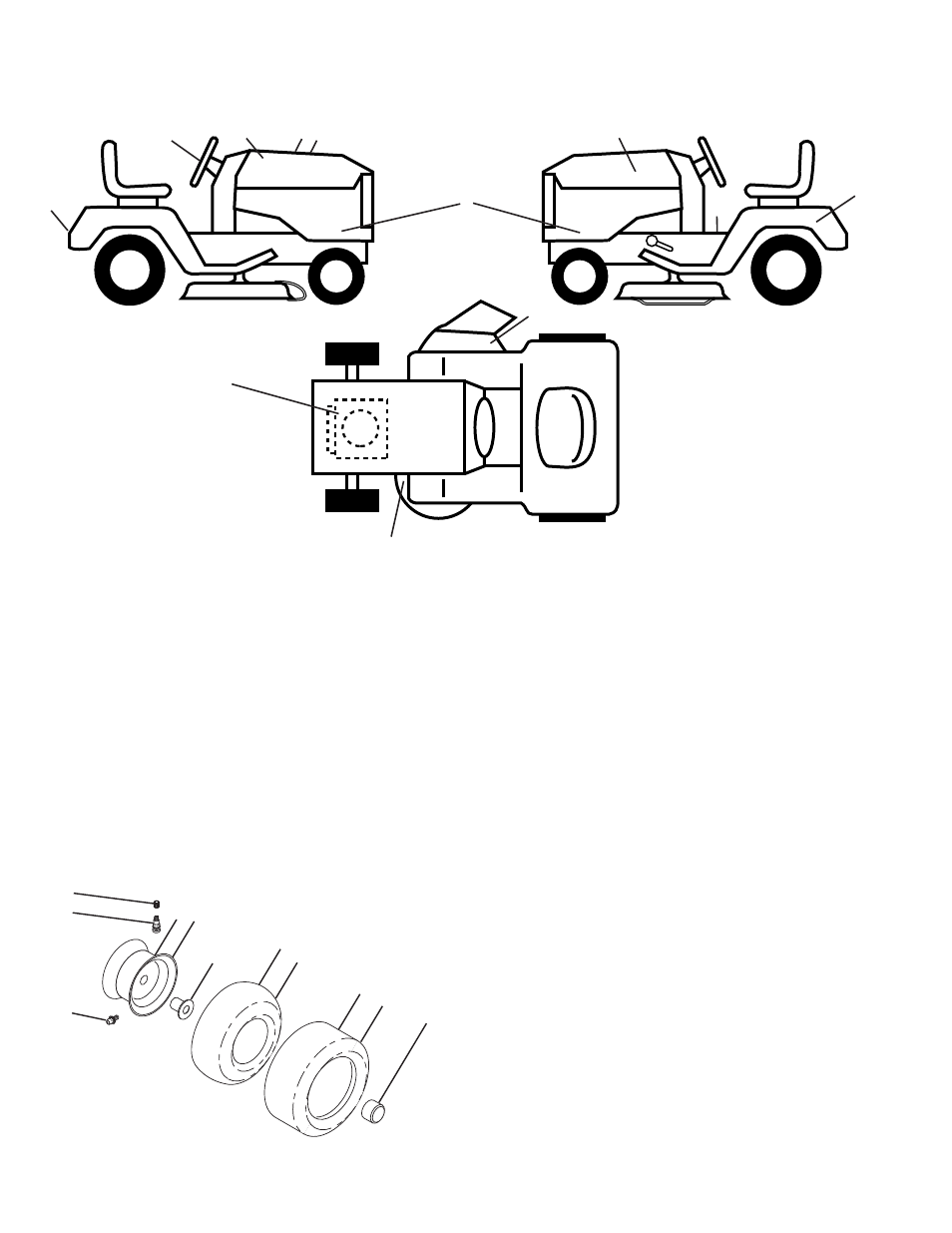

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3 11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6"
4 532 05 99-04 Tube Front
5 532 10 62-22 Tire F T 15 x 6 0 - 6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 10 62-68 Tire R 18 x 9.5-8 Turf Saver
- - 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT
10 532 12 49-26 Tube Rear
11 532 13 83-37 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 532 41 16-58 Decal, Warning
2 532 40 28-32 Decal, Hood
4 532 40 83-55 Decal, Hood Panel
5 532 18 09-41 Decal, Customer Respons.
6 532 41 01-18 Decal, Replacement
7 532 40 44-84 Decal, Steering Wheel
8 532 40 88-18 Decal, Eng. BS
9 532 14 50-05 Decal, Battery Dnge/Poi
11 532 17 05-63 Decal, Warning
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 10-56 Pad, Footrest, RH
- - 532 41 13-87 Manual, Owner's (English)
- - 532 41 13-88 Manual, Owner's (French)
12
7
2 5 6
4
2
1
8
2
