EXCEL 10 W7751H SMART VAV ACTUATOR

95-7553—04

2

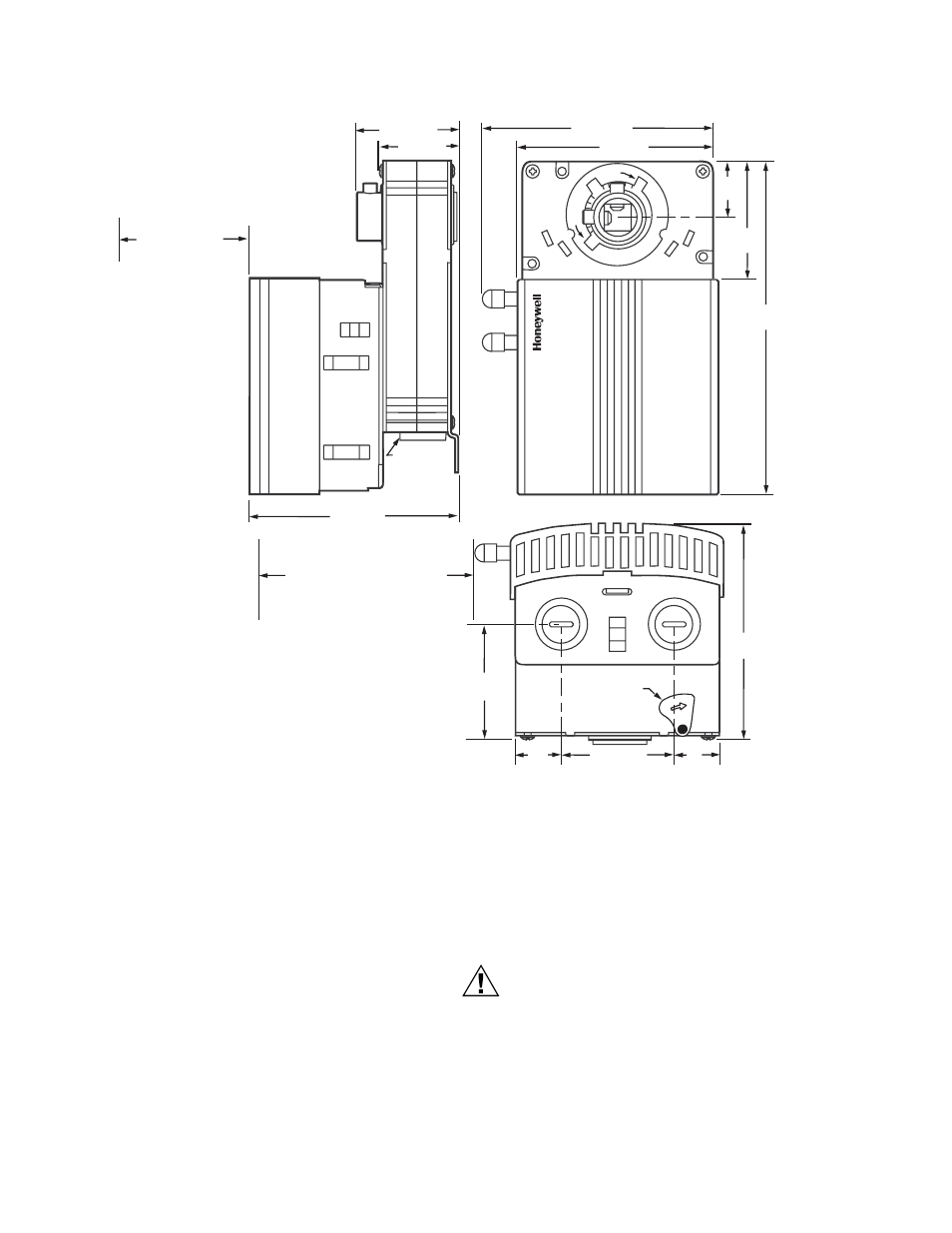

Fig. 2. W7751H mounting dimensions in in. (mm).

The W7751H assembly is field mounted to the VAV box

damper shaft, the same as used for a typical actuator. The

actuator on the W7751H opens or closes a damper by driving

the damper shaft in either the counterclockwise (CCW) or

clockwise (CW) direction. The actuator has a mounting tab on

the bottom for securing to a VAV box damper. The mounting

tab is accessible through a hole in the controller with its cover

removed (see Fig. 3). The tab is sized for a 1/4 in. (6 mm)

screw or pin (not included).

The controller enclosure on the W7751H is constructed of a

sheet metal housing and a plastic snap-on cover. Controller

wiring on the W7751H is terminated to screw terminal blocks

located under the snap-on cover. See Wiring section. The

sheet metal housing has two 1/2 inch (13 mm) knockouts (see

Fig. 2) compatible with 1/2 inch (13 mm) or 3/4 inch (19 mm)

conduit.

NOTE: The assembly is intended only for mounting to a

horizontal shaft.

The W7751H actuator is shipped in the fully clockwise (CW)

position (90 degree). The W7751H Assembly must be

mounted to a horizontal damper shaft to assure proper heat

dissipation from the controller housing. Mount the W7751H so

that the actuator is parallel with the VAV box damper housing.

In general, it is recommended that a washer or spacer be

added between the VAV box damper housing and the actuator

mounting tab to keep them parallel. See Fig. 4.

CAUTION

Equipment Damage Hazard.

Mounting actuator unevenly with damper housing

can damage actuator.

Mount actuator flush with damper housing or add

spacer between mounting tab and damper box

housing. (See Fig. 4.)
