ASSEMBLY
WARNING:
Wash hands after handling.

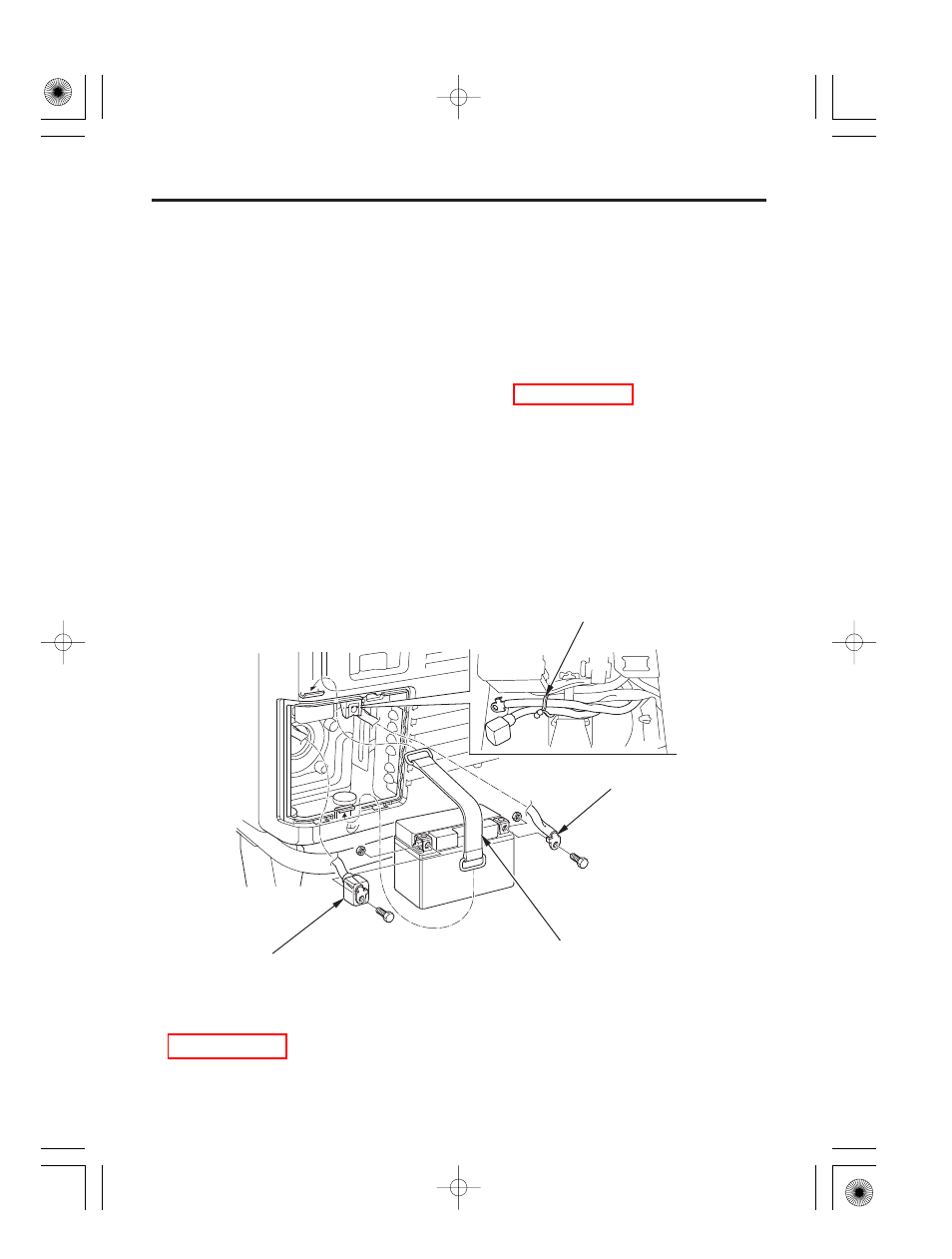

Battery
TWIST CLIP
BATTERY STRAP
RED CABLE
(POSITIVE (
) CABLE)
BLACK CABLE
(NEGATIVE (
) CABLE)
Never operate the generator without the maintenance cover in place,
as poor engine and generator performance will result.
Install the battery maintenance cover in the reverse order of removal
(see page
).
Secure the battery by hooking the strap onto the bottom hook of the
generator.
Connect the black cable to the battery negative ( ) terminal.
Remove the protective cover from the battery positive ( ) terminal,
connect the red cable to the battery positive ( ) terminal.
Remove the red cable and the black cable from the twist clip, and
reinstall the battery.
Remove the battery strap from the bottom hook, and then remove
the battery.
Remove the battery maintenance cover (see page ).
The battery is disconnected and strapped into the battery tray for
shipment.
Battery posts, terminals and related accessories contain
lead and lead compounds.
5.
6.
1.
2.
3.
4.
7.
