Page 84
82
ASSEMBLY

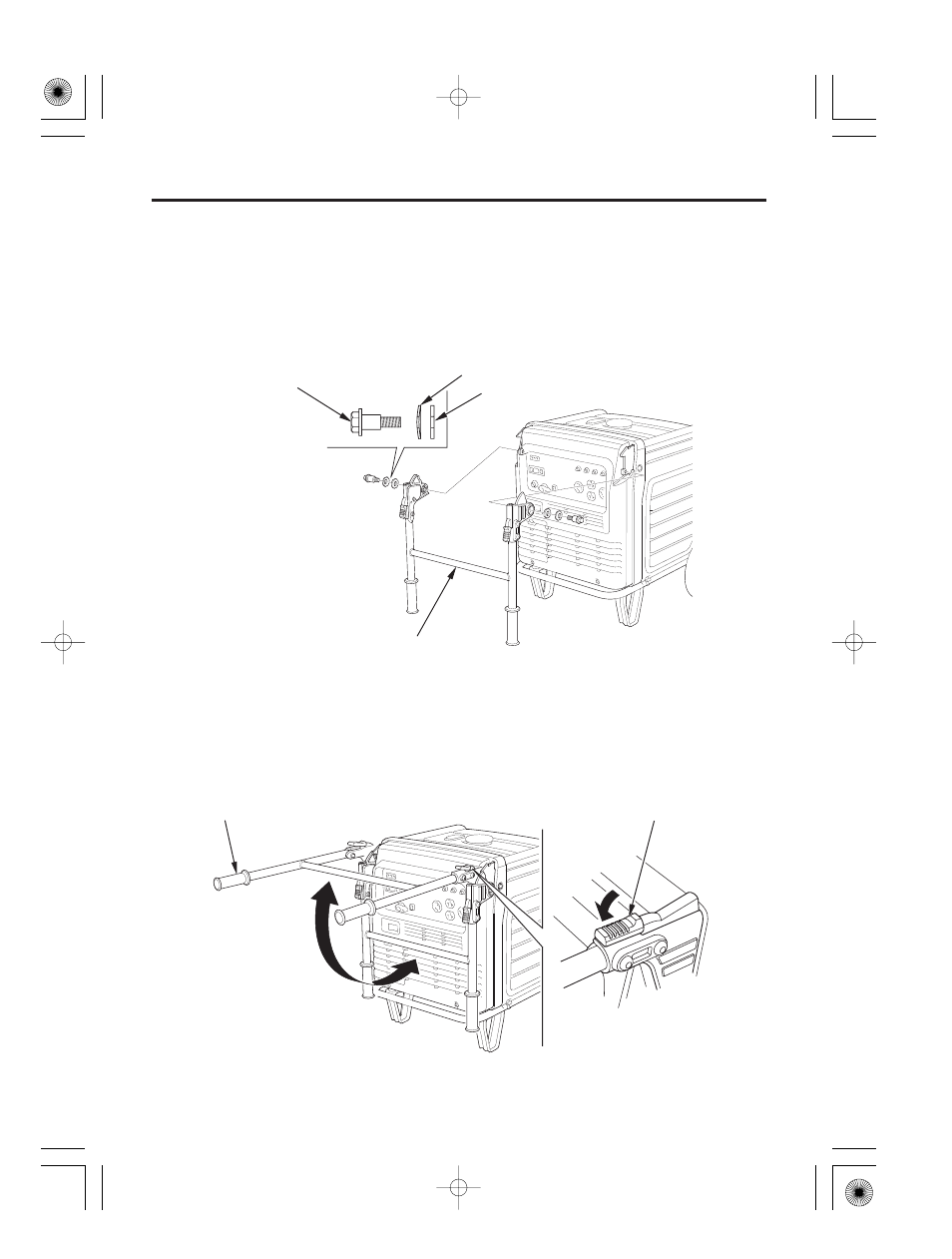

Handle Installation
To extend handle:
TORQUE:
SPRING WASHER (2)
12 mm WASHER (2)
HANDLE ASSEMBLY
HANDLE
HANDLE LOCK LEVER
HANDLE HOLDER BOLT (2)
17
22 lbf·ft (24
29 N·m , 2.4
3.0 kgf·m)
Operation must be checked after attaching a handle.
Raise handle to horizontal position. The handle will click into place
when locked.
Install the handle assembly on the generator upper frame using the
12 mm washers, spring washers and handle holder bolts.
