ASSEMBLY

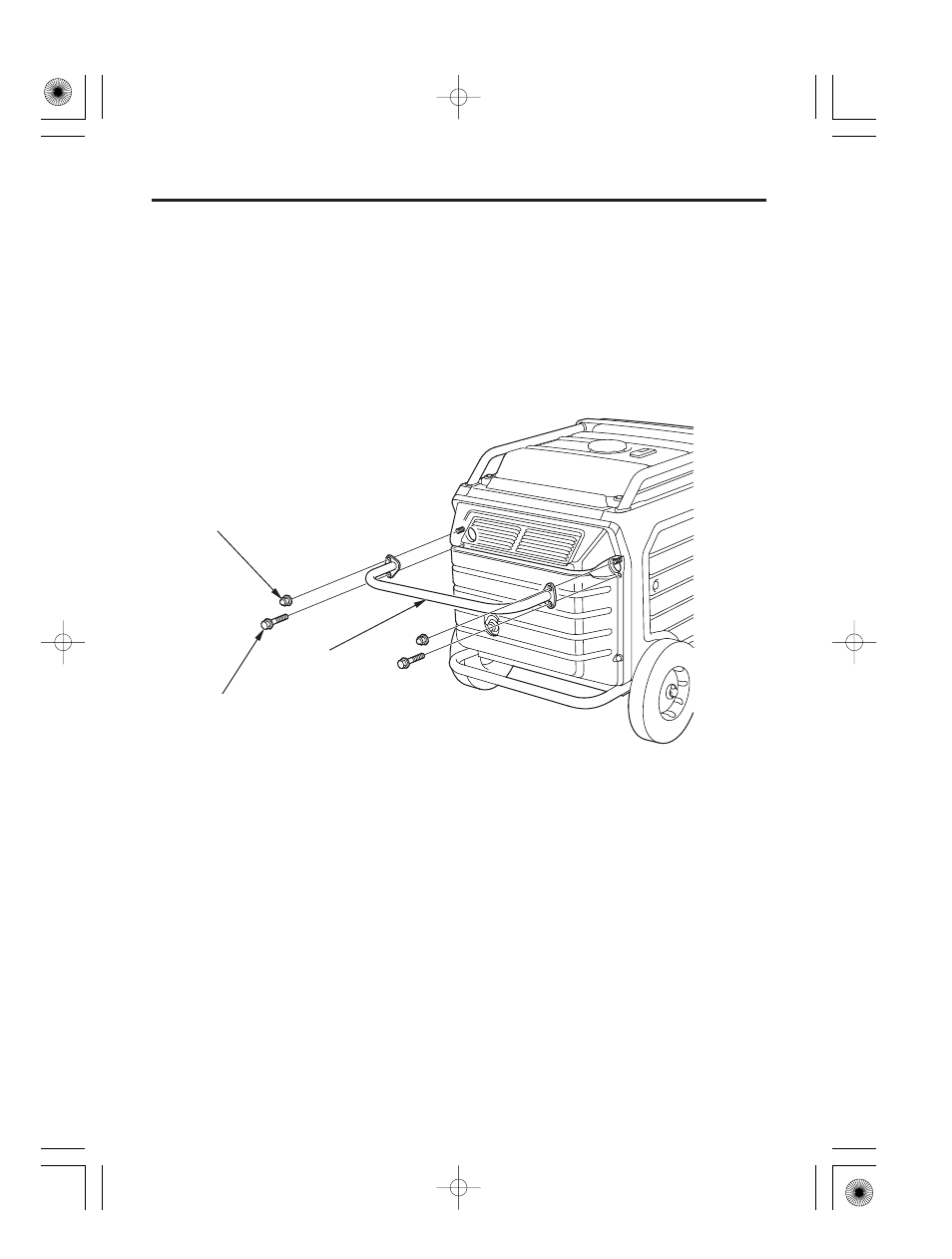

Rear Bar Installation

TORQUE:

REAR BAR

CAP NUT (2)

30 mm BOLT (2)

22 lbf·ft (24

29 N·m , 2.4

3.0 kgf·m)

Install the rear bar on the generator frame using the two 6

30 mm

bolts and two cap nuts.
