59 Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
22,2 cm
16,5 cm
16,8 cm
15,2 cm
16,5 cm
16,8 cm
25,1 cm
16,5 cm
23,5 cm
SLP-45 - 45° Elbow
SLP90- 90° Elbow
Effective
Height/
Length
SLP-PIPE
SLP-HVS
Horizontal Pipe
Support
SLP-FS
Ceiling Firestop
SLP-WS
Wall Shield Firestop
B. Vent Components Diagrams (continued)

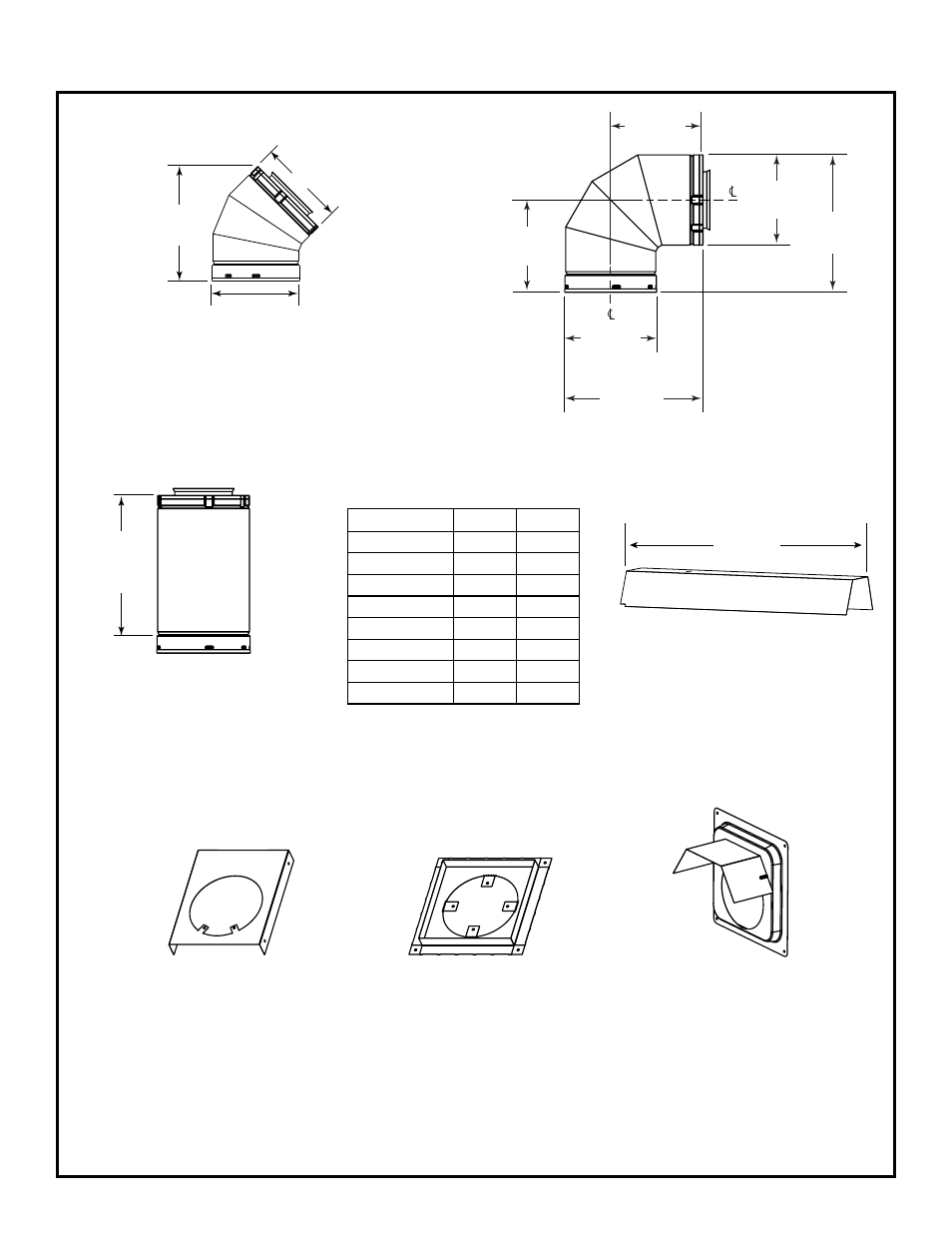

Figure 17.3 SLP Series Vent Components
66,0 cm
DVP-HSM-B
Extended Heat Shield
Effective Height/Length
Pipe cm mm
SLP4 10,2 102
SLP6 15,2 152
SLP12 30,5 305
SLP24 61 610
SLP36 91,4 914
SLP48 121,9 1219
SLP6A 5 - 15 51 - 152
SLP12A 5 - 30 51 - 305
