17 Heat & Glo • XLR-N-CE, XLR-PB-CE • 2198-900 Rev. L • 3/13
5
Framing and Clearances
A. Selecting Appliance Location
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
NOTICE: Illustrations reflect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
2,54 cm
A
E
A
B
C
TOP VENT
ONE 90º ELBOW
ALCOVE
INSTALLATION
D*
TOP VENT
ONE 90° ELBOW
B
F

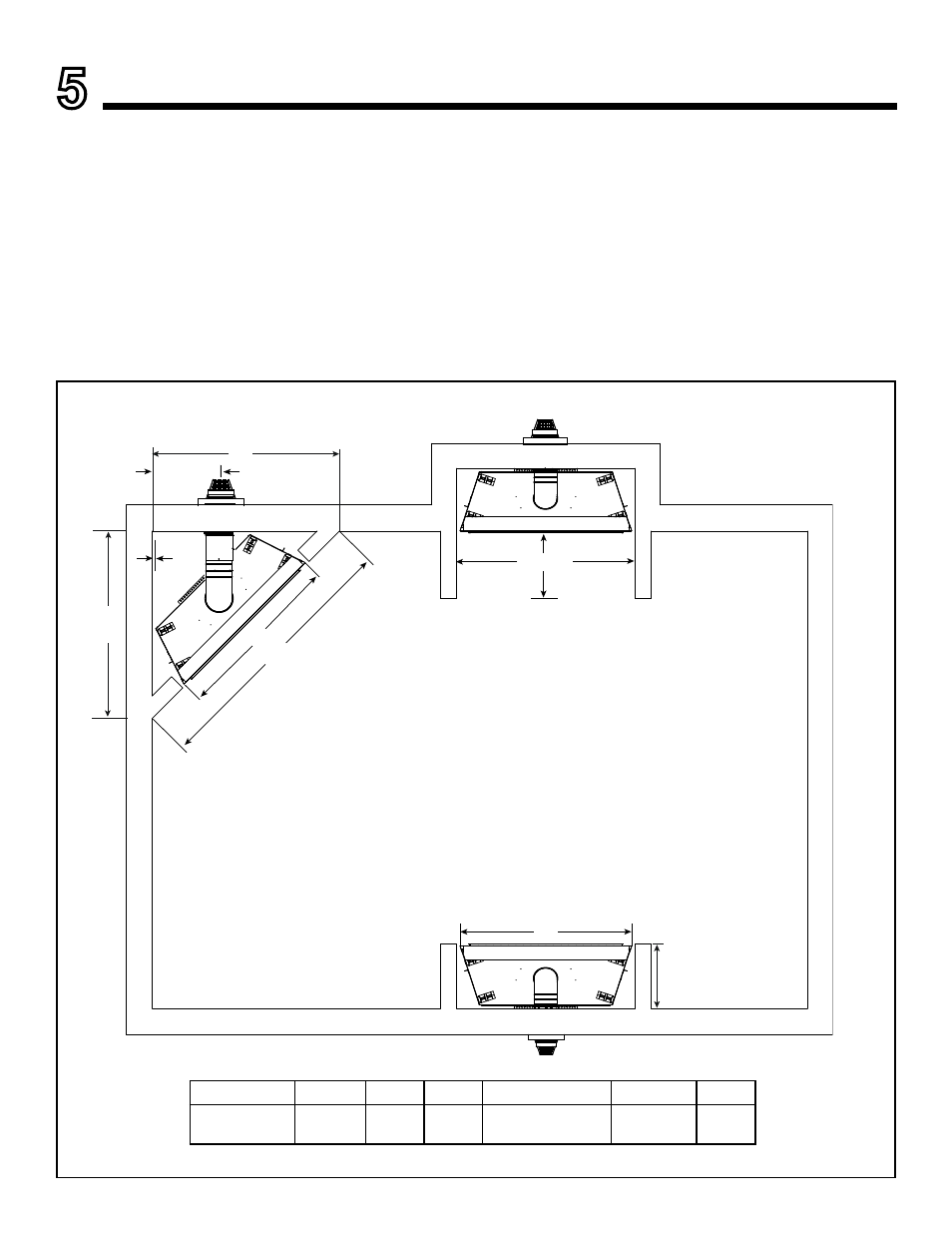

Figure 5.1 Appliance Locations
A B C D* E F
Centimeters 135 122 191
See Section D.
Figure 5.6
49 45
