6 • assembling the blades – Hunter Fan X-BOARD 20727 User Manual
Page 9
9
42663-01 • 10/23/08 • Hunter Fan Company

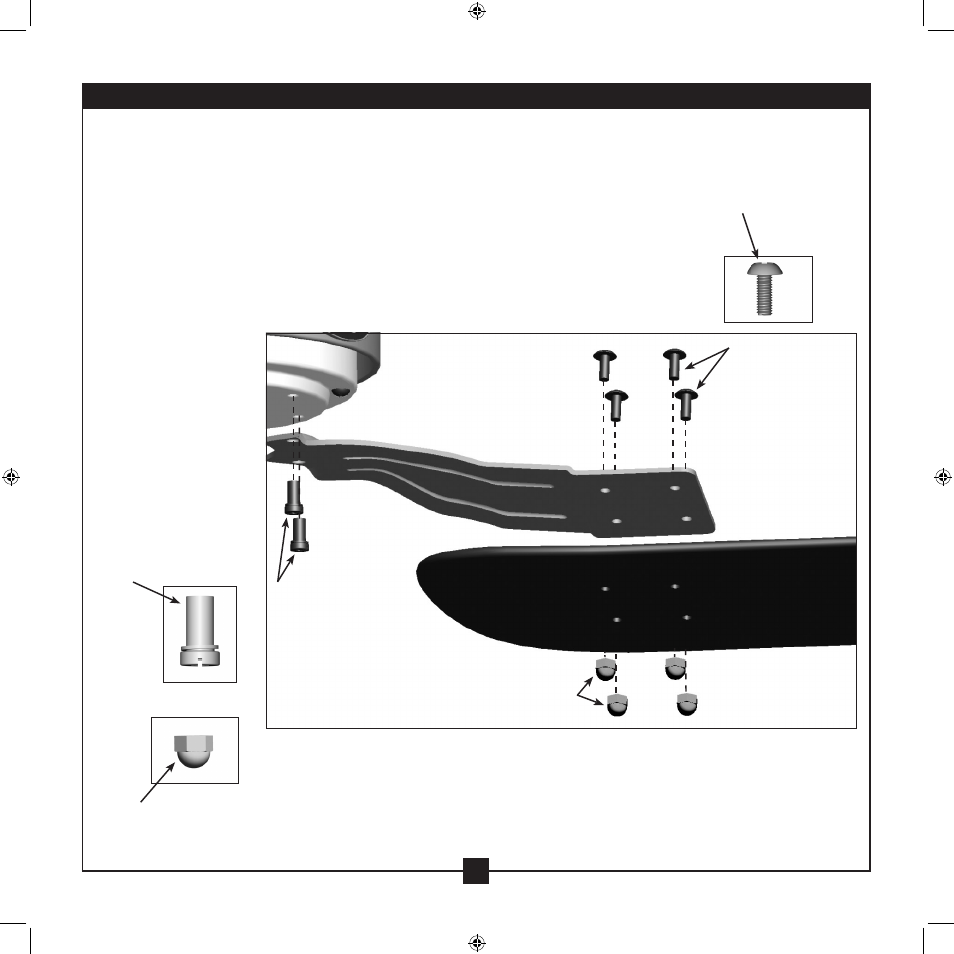

6-1. Attach each blade to a blade iron using four blade assembly
screws and four acorn nuts. Securely tighten each nut to the blade
using a 3/8 in. wrench.
6-2. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Screw
Acorn Nut
Blade
Mounting
Screw
Step 6-1
Step 6-2
Blade Assembly
Screws
Acorn Nuts
Blade
Mounting
Screws
6 • Assembling the Blades
