6
42663-01 • 10/23/08 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
3-2. Insert the downrod through the canopy and canopy trim ring.
Feed the wires from the fan through the downrod on one side of
the pin in the ball.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
CAUTION: The adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-4. Raise the fan and align the slots in the canopy with the hooks on
the ceiling plate.
3-5. Place the slots over the hooks to hang the fan.

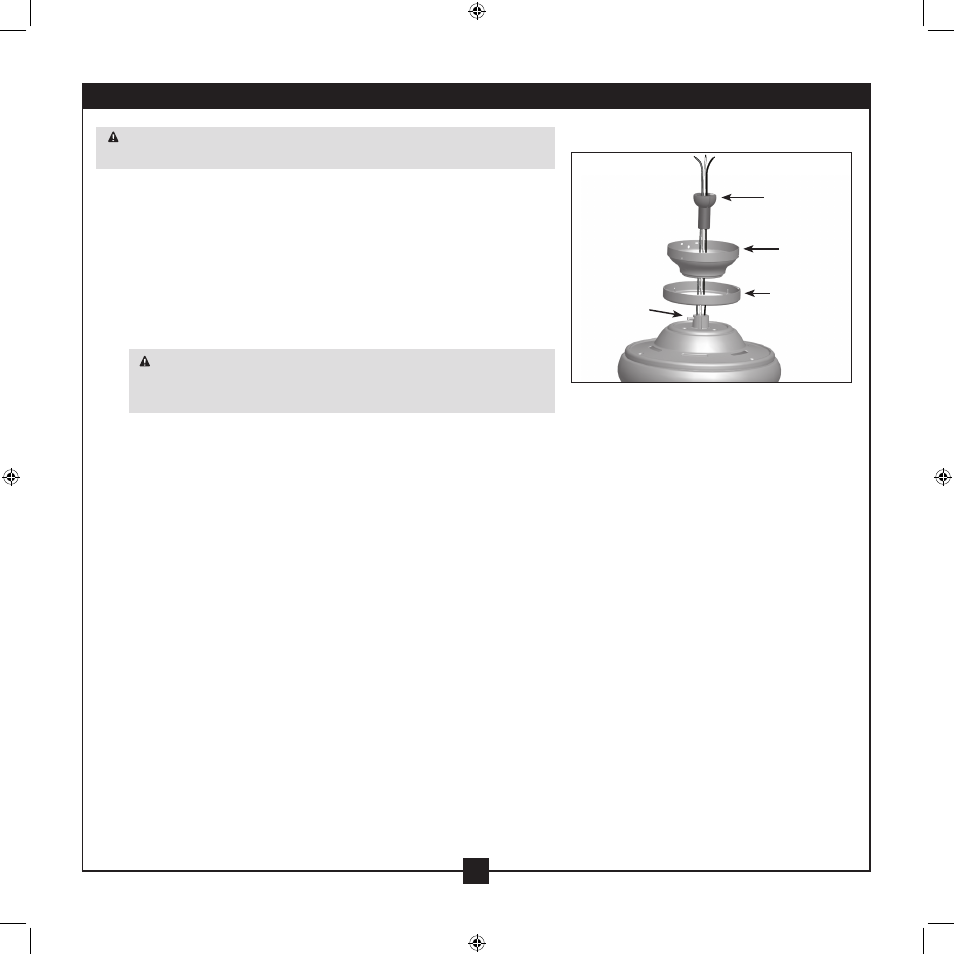

Steps 3-2 – 3-3
Downrod
Canopy
Set Screw
Canopy
Trim Ring
Standard or Angled Mounting
3 • Assembling and Hanging the Fan
