SCART

D-SUB IN

S-VIDEO

HEADPHONE

DC IN

PC AUDIO IN

ANT

AUDIO

VIDEO

L

R

AV Audio Input
Connect audio/video
output from an external
device to these jacks

DC Power Cord Socket
This TV operates on DC power.
The voltage is indicated on the
Specifications page . Never
attempt to operate the TV on AC
power.

D-SUB Input
Connect to the D-SUB
15PIN analog output
connector of the PC
display card for PC
display purpose

S-Video Input

Connect S-Video out
from an S-Video device
to the jacks.

Antenna Input

Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.

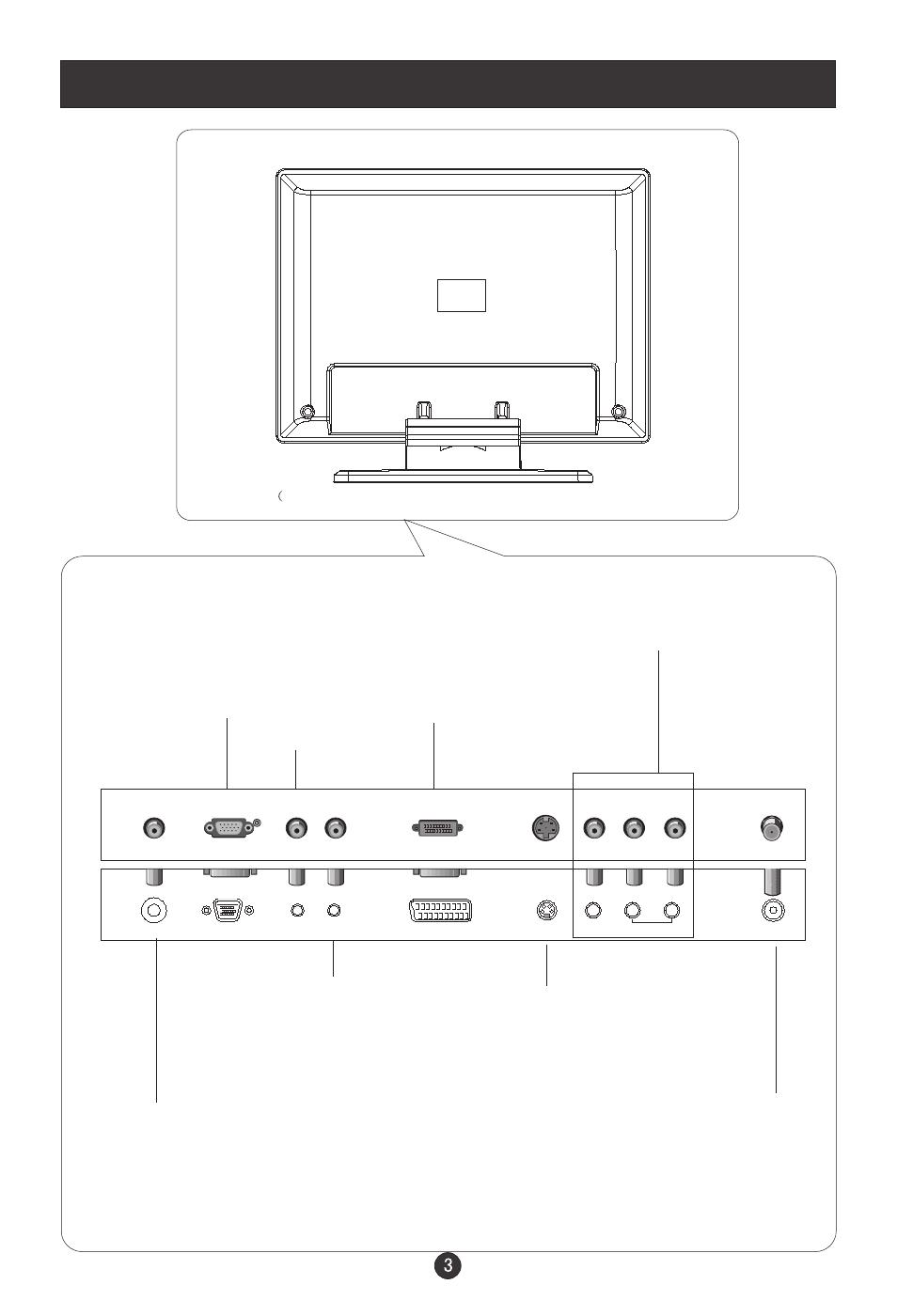

Connection Options

Earphone port

PC Audio Input

Connect the PC output
connector from a PC to
the audio input port

SCART Input

Connect to the DVD/
VCR/broadcasting
receiver or other
equipment

The figure is just for referrence, please see the real.)
