2. Operation

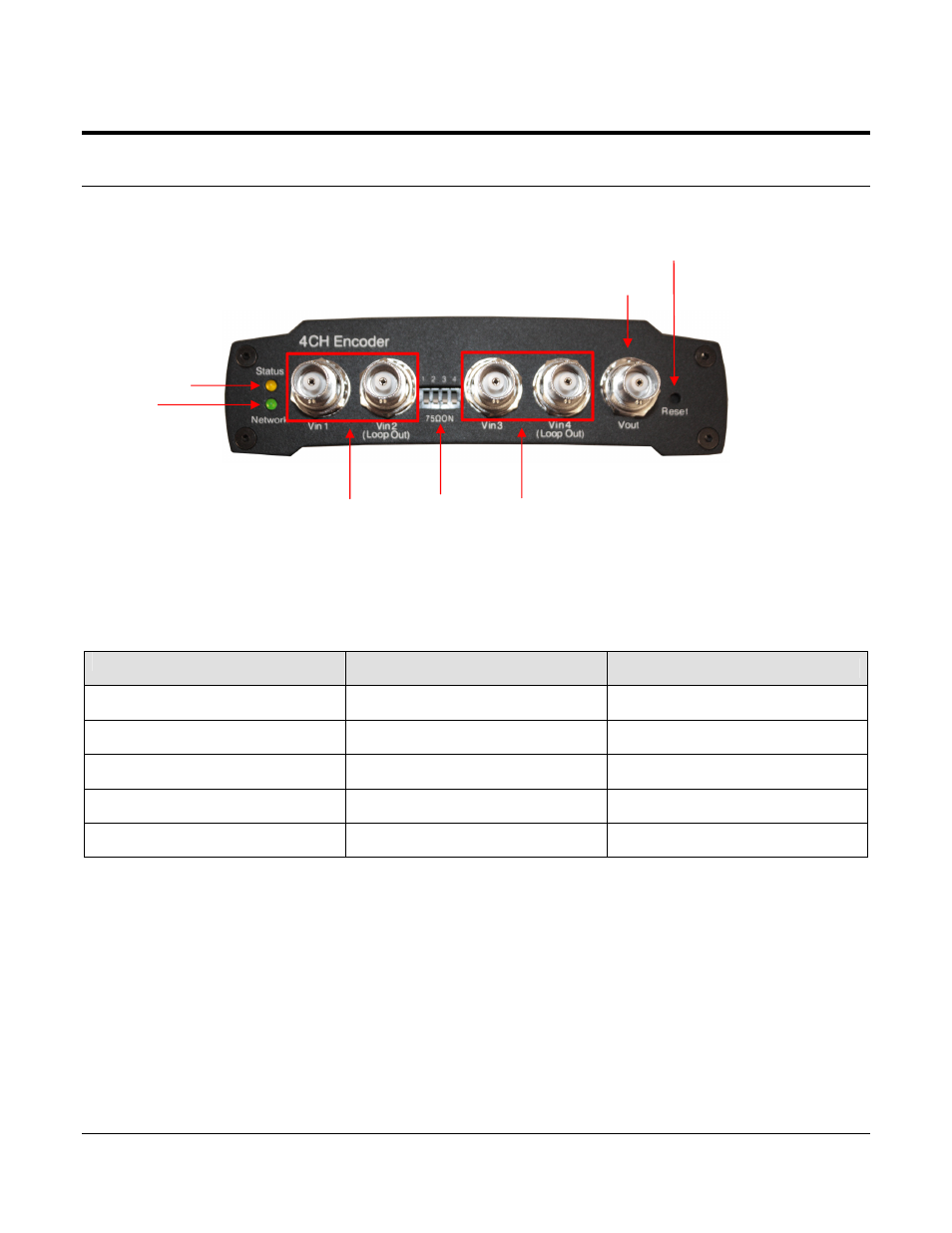

2.4. Front Panel
3
①
Status LED
② Network LED
Status (Orange) and Network (Green) LED indicators display the following system information:
Status (Orange) Network (Green)
Power Off Off Off
Booting in progress On Off
Successful Network Connection On Blinking
Failed Network Connection On Off
Data Transmission in Progress Blinking (Slow) Blinking (Fast)
1. System initialization and booting
When power is supplied to Camera Server, it is initialized for approximately 1 second. During this time,
the orange Status LED is turned on. After completion of booting, for a successful network connection,
the green Network LED blinks indicating that data is being transmitted. If network connection fails,
please verify that the LAN cable is connected or restart Camera Server.
2. Video streaming service
When an application runs, the Status LED blinks once per second. The Network LED blinks at a rate
proportional to the amount of data being transmitted.
③ ④
①
②
⑦
⑥
⑤
