12

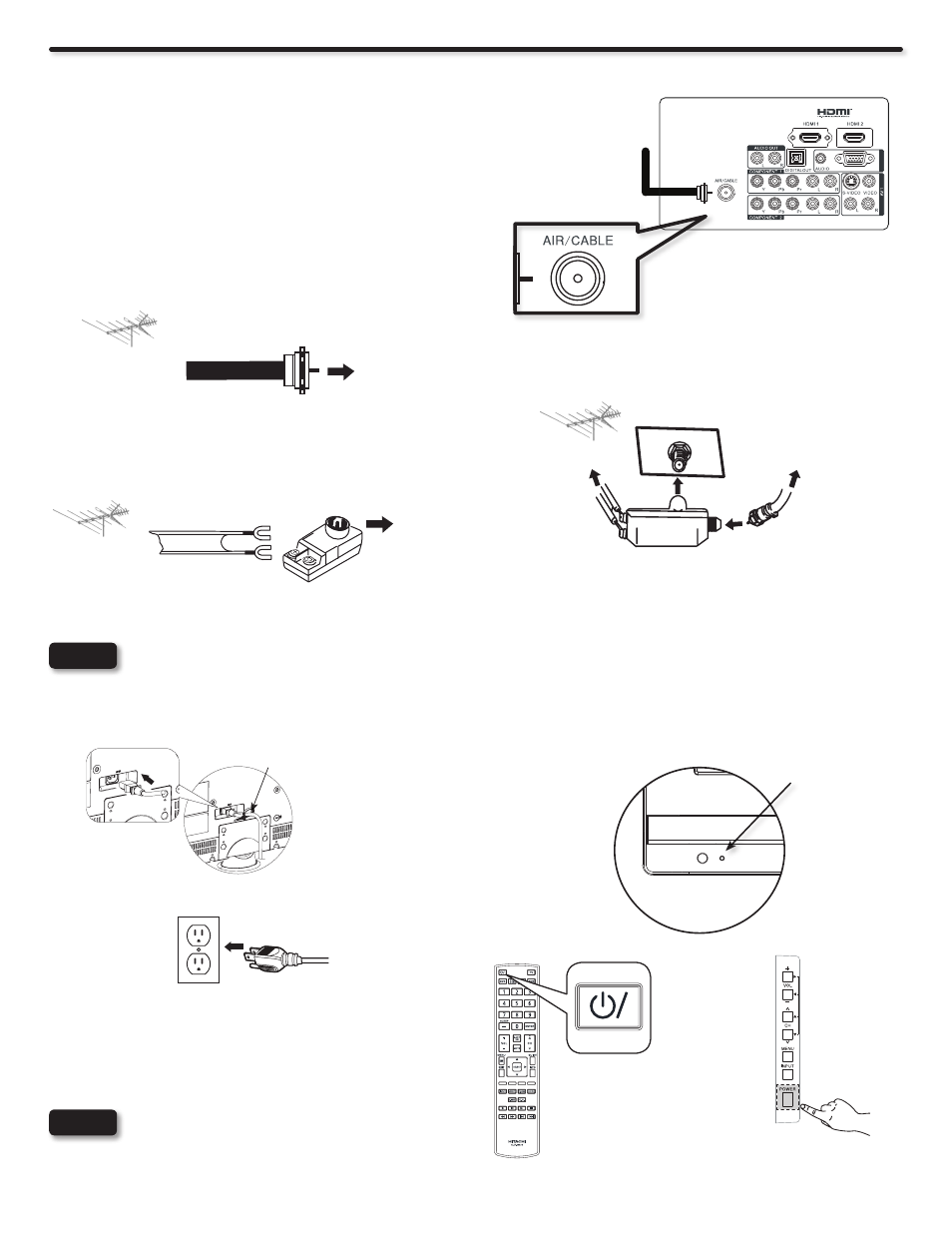

Quick Setup Guide
Perform the following steps to quickly setup your new
Hitachi LCD Television Set.
1. ANTENNA CONNECTION
Unless your LCD Television is connected to a cable TV system or
to a centralized antenna system, a good outdoor color TV antenna
is recommended for best performance. However, if you are located
in an exceptionally good signal area that is free from interference
and multiple image ghosts, an indoor antenna may be sufficient.
VHF (75-Ohm) antenna/CATV (Cable TV) a).
When using a 75-Ohm coaxial cable system, connect the CATV coaxial
cable to the AIR/CABLE (75-Ohm) terminal. Or if you have an antenna,
connect the coaxial cable to the same AIR/CABLE terminal.
To outdoor Antenna
or
Cable TV (CATV)
System
To Antenna
Terminal
VHF (300-Ohm) antenna/UHF antenna b).
When using a 300-Ohm twin lead from an outdoor antenna, connect
the VHF or UHF antenna leads to screws of the VHF or UHF adapter.
Plug the adapter into the antenna terminal on the TV.
To outdoor VHF or
UHF Antenna
To Antenna
Terminal
When both VHF and UHF antennas are connected c).
Connecting a 300-Ohm twin lead connector may cause interference. Using a 75-Ohm coaxial cable is recommended. NOTE
Rear Panel Jack
Connect the power cord to your TV set and a).
secure it with the AC Wire Clamp (see page 7) .
Connect the power cord to the AC wall outlet . b).
Attach an optional antenna cable mixer to the TV antenna terminal
and connect the cables to the antenna mixer. Consult your dealer
or service store for the antenna mixer.
To outdoor antenna
or CATV system To UHF antenna
Antenna Mixer
Air/Cable
The Indicating Lamp will light red (Standby mode) and c).
then light blue (image displays).
POWER
2. CONNECT YOUR NEW HITACHI LCD TV TO THE POWER SOURCE
3. POWER ON/OFF YOUR NEW HITACHI LCD TV.
Press the POWER button on the Remote Control
or the POWER button on the Side Control Panel to
power on/off the LCD TV.
4. FOLLOW THE TV SETUP WIZARD INSTRUCTIONS ON NEXT PAGE.
or
RGB
RGB
RGB
RGB
Air/Cable
For Stand-By
Power OFF
Indicating
Lamp
If the Indicating lamp is OFF, the Power Button on the
Remote Control will not operate. Please make sure
that the power cord is plugged to the AC outlet.
NOTE
AC Wire Clamp
