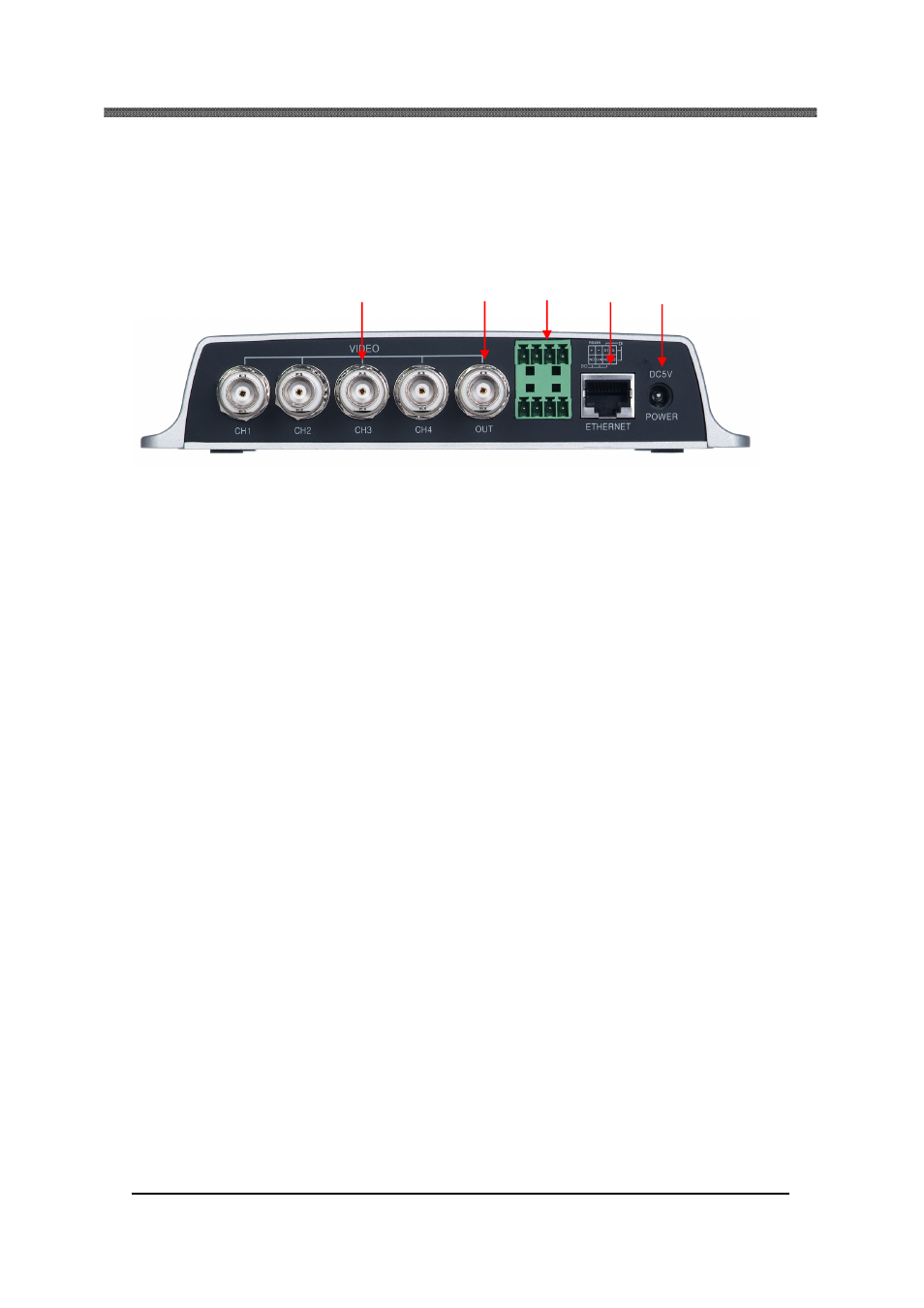

2. REAR LAYOUT
⑤ ④ ③ ② ①
①
Power Input connector (DC 5V)
* Please check the voltage of your connecting adapter.
②
Ethernet port (10/100 Base-T Ethernet)
③
Data I/O connector
Sensor Input connector (S1, G, S2): Connect up to 2 dry contact input sensors.
Data Output (DO) connector (NC, NO, COM): Normally Open (NO) type or Normally
Close (NC) type may be used.
RS-485(+, -): Connect pan, tilt, and zoom available camera or unit.
④
Video Out
One channel composite video output is supported.
⑤
Input connectors
Camera signal inputs:
Camera signal type (NTSC or PAL) can be adjusted on administrator’s page.
12
68A00-1 NETWORK DIGITAL VIDEO RECORDER
