OM-1594 Page 48
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 8-1. Main Assembly (Continued)
Quantity
54
♦
028 770 POTENTIOMETER, CP std slot 1T 2W 1M 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55 073 562 POTENTIOMETER, CP std slot 1T 2W 10k 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
56 134 201 STAND-OFF SUPPORT, PC card .312/.375 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57 REED 140 786 SWITCH, reed 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
58 169 089 DOOR, side rh 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
♦
Part of 114 144 Spot Weld Control Option
♦♦
Part of 144 931 Voltage Control Option
♦♦♦
Part of 130 838 Water Flow Shutdown Switch Option
*Recommended Spare Parts.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
.
Hardware is common and
not available unless listed.
ST-802 237-A
* Includes items 22 thru 24
2
4
8
4
3
11
12
13
14
15
16
25
27
28
29
10
21
20
19
17
18
17
9
24
23
*1
6
7
5
22
26

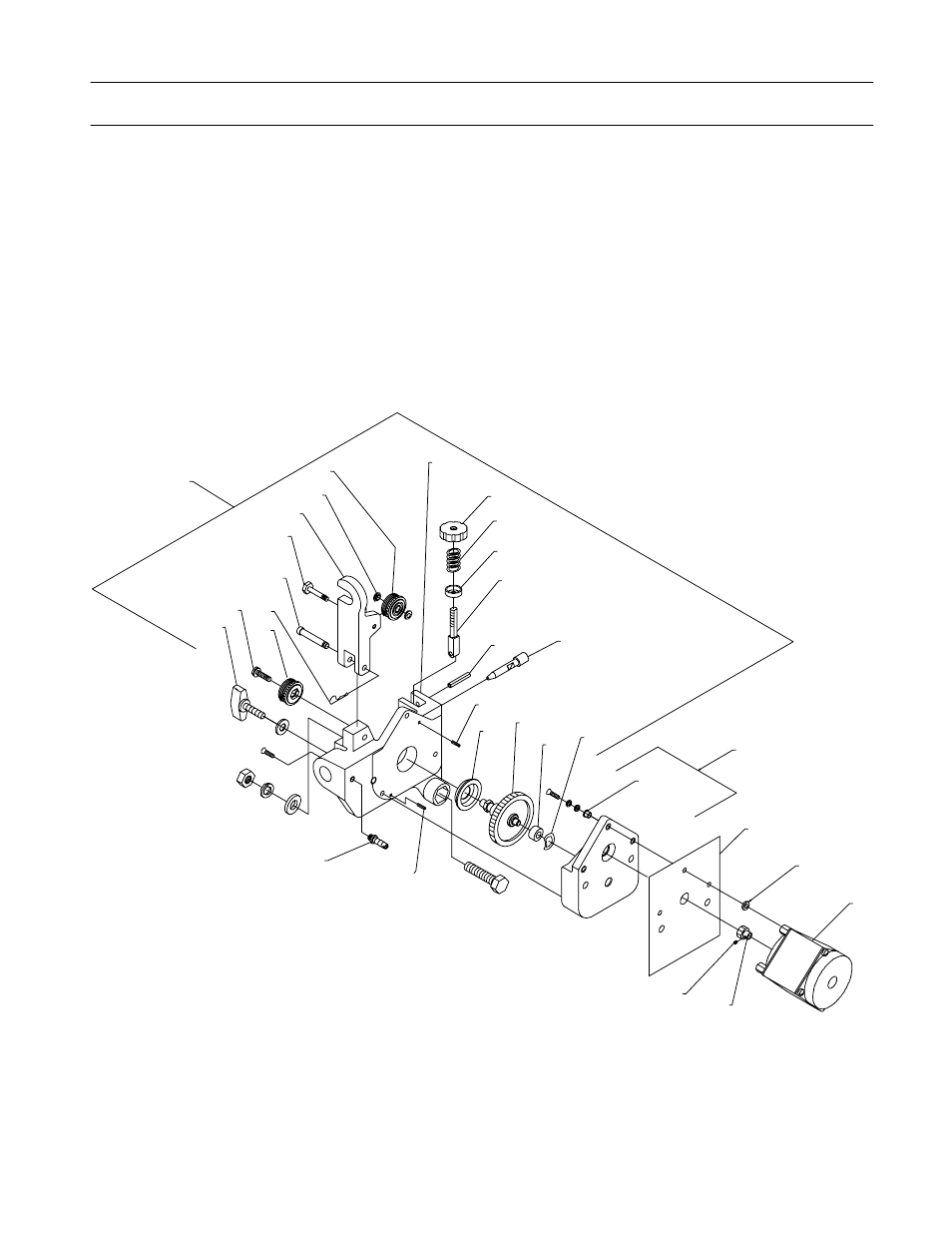

Figure 8-2. Motor & Wire Drive
