OM-1594 Page 20

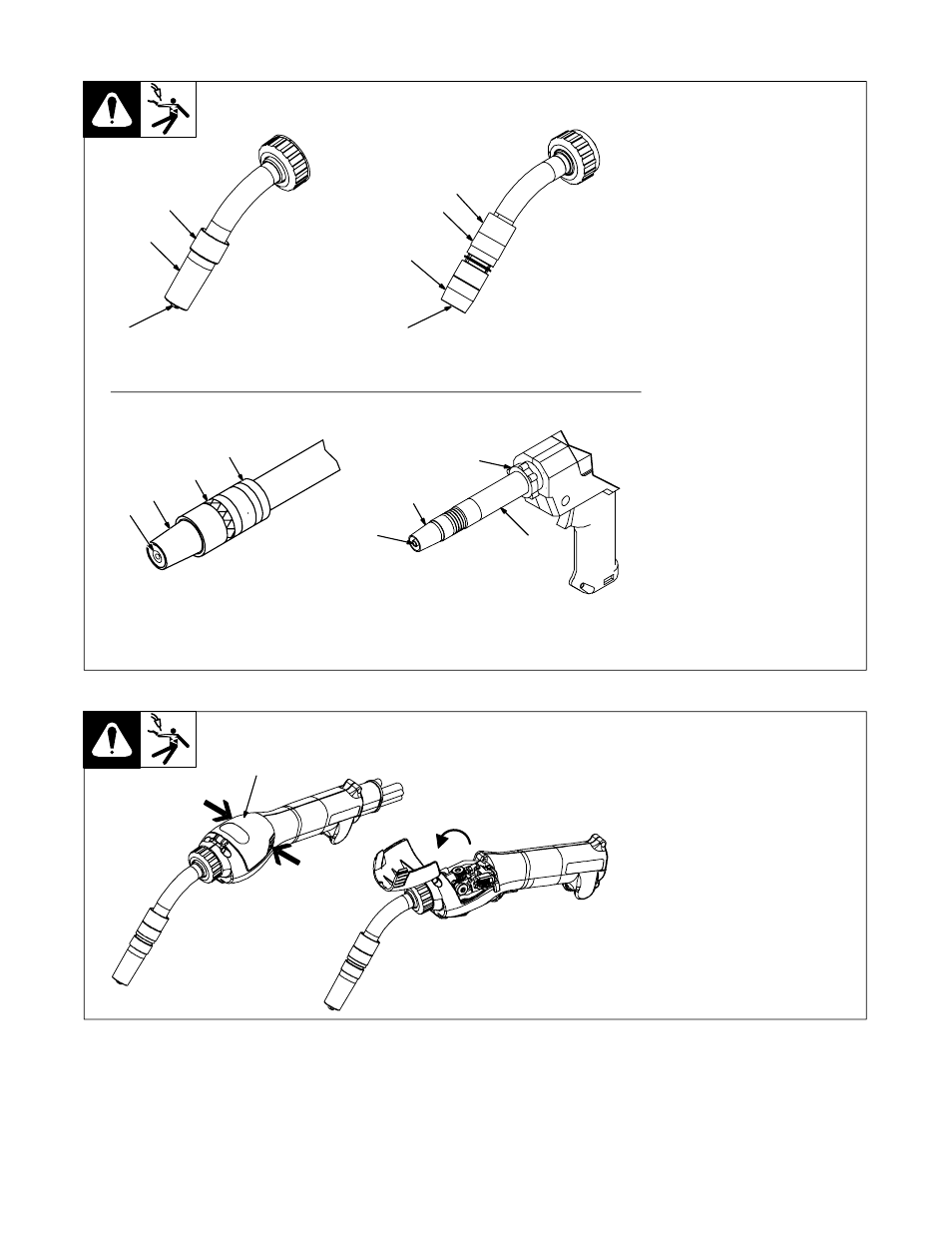

4-9. Adjusting Contact Tip Position
Ref. 801 556 / 150 434 / Ref. 150 431 / Ref. 151 666-A
1 Contact Tip
2 Nozzle
Adjusting barrel changes contact
tip location from 1/16 in (1.6 mm)
out beyond end of nozzle to 1/4 in
(6.3 mm) inside nozzle.
3 Nozzle Adapter Lock Nut
4 Nozzle Adapter
To change contact tip location, loos-
en nozzle adapter lock nut, and turn
nozzle adapter. Tighten nozzle
adapter lock nut.
5 Jam Nut
6 Barrel
To change contact tip location, loos-
en jam nut, and turn barrel. Tighten
jam nut. 1
2
3
1
5
2
1
2
6
5
6
Air-Cooled Model Water-Cooled Model
1
2
4
3
XR Edge Gun
Air-Cooled Model Water-Cooled Model
Pistol Grip Gun
4-10. Opening Top Cover Of XR-Edge Gun
Ref. 801 556
1 Top Cover
Squeeze sides of cover to release
clips and lift up as shown.
To close cover, pivot cover closed
on gun, and push cover down until
clips lock tight.
1
