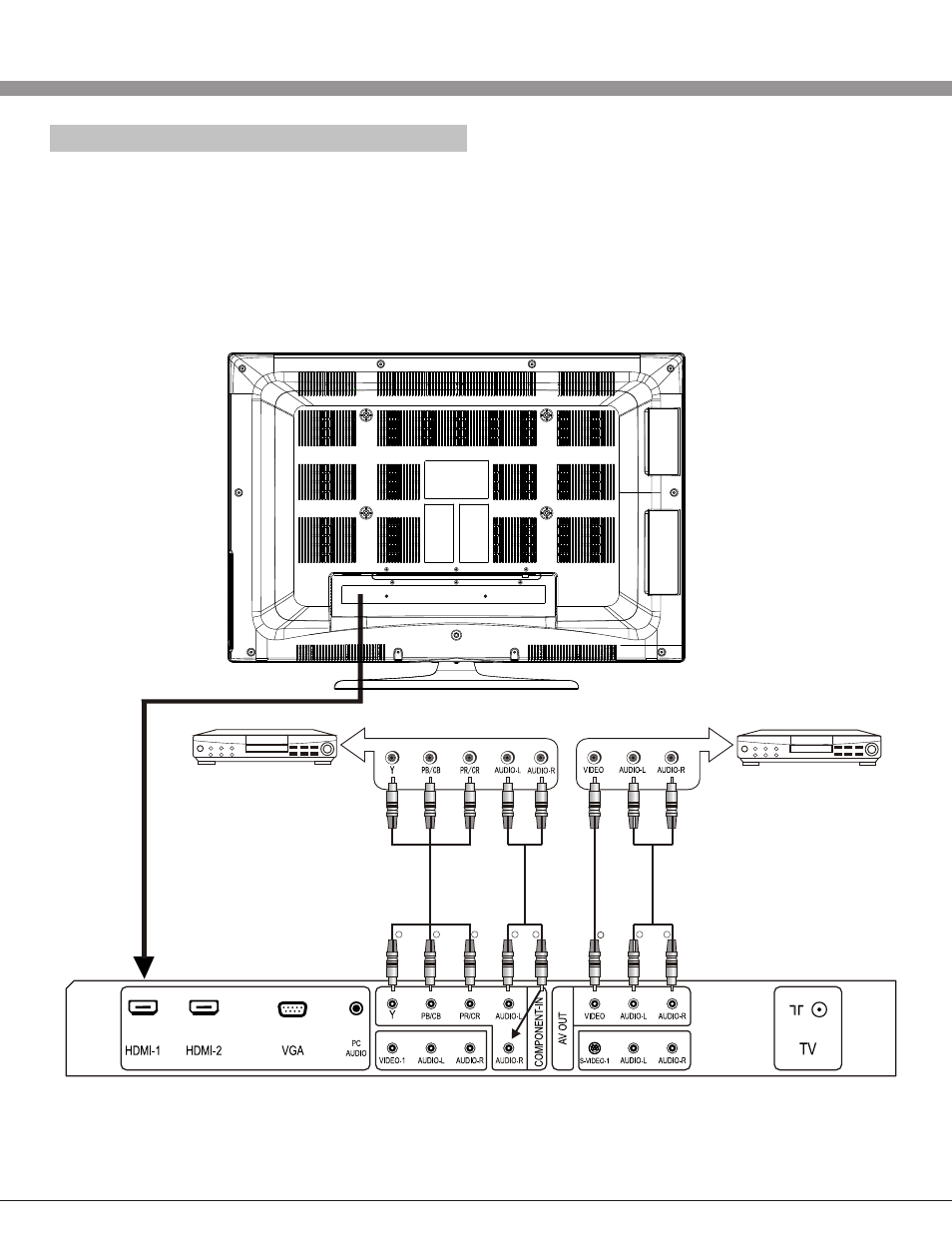

YPbPr/YCbCr Input Connection

If the signal source is DVD, Digital wired receiver or equipments with the
YPbPr/YCbCr output, recommends you to connect YPbPr or YCbCr output with the
TV YPbPr/YCbCr input. In order to obtains the better picture quality, at the same
time, please connect its audio output with TV audio input as shown in the following
chart. If you choose the YPbPr/YCbCr signal, please set signal source selection
under YPbPr pattern.

Installation & Connection

AV machine

G Green (Y)

B Blue (Pb/Cb)

W White(AUDIO-L )

R Red (AUDIO-R, Pr/Cr)

Y Yellow (VIDEO)

CVBS, DVD Player or
other machine with
YPbPr/YCbCr.
