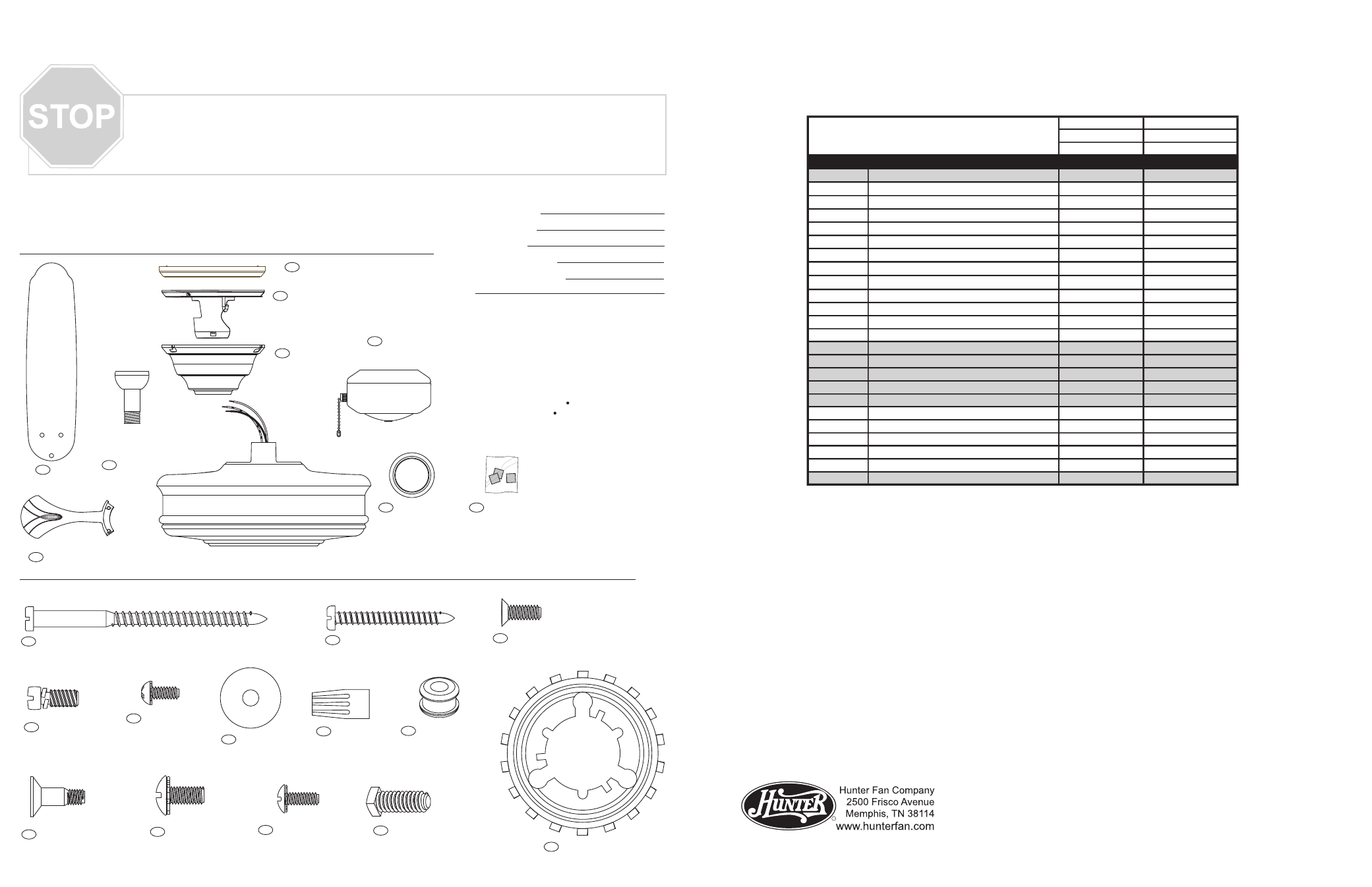

Hunter Fan 20740 - Manual

Fan Parts
(Not Drawn to Scale)
Hardware
(Drawn to Scale)
Low Profile Washer 27
Screw, Wood
Wire Nut
Flat Washer
Locking Screw
Screw, Machine, 6-32 Canopy Screw
Screw, Blade
Iron Armature
65 64
100
62
68
70
69
47
Setscrew 8
Blade Assembly Screw 67
Screw, Wood
Blade Grommet 66
Screw, Switch
Housing
Assembly
131
Blade Set
Blade Iron Set
46
Canopy
Trim Ring
Canopy
7
3
4
239 Hanger Bracket
Assembly
Hanger Ball /
Downrod
Assembly
Retaining Ring 59 Motor Housing Assembly
Switch /
Housing
Assembly
Balancing Kit
28
44
75
R
98000-01-466
3/30/05
Model # 20740
Asm. Dwg. # 95545-01
Finish White
Item # Item Name Qnty Part #
Hanging System Kit 1 95670-03-000
3 Canopy 1 --------------------
4 Canopy Trim Ring 1 --------------------
7 Hanger Ball / Downrod Assembly 1 --------------------
8 Setscrew 1 --------------------
27 Low Profile Washer 1 --------------------
59 Retaining Ring 1 --------------------
62 Canopy Screw 3 --------------------
64 Screw, Wood 2 --------------------
65 Screw, Wood 2 --------------------
68 Flat Washer 4 --------------------
100 Locking Screw 3 --------------------
239 Hanger Bracket Assembly 1 --------------------
28 Switch / Housing Assembly 1 93194-03-000
44 Blade Iron Set 1 95518-05-132
46 Blade Set 1 75539-12-000
47 Screw, Blade Iron Armature 11 63755-05-133
Hardware Kit 1 95644-00-861
66 Blade Grommet 16 05989-02-000
67 Blade Assembly Screw 16 63730-07-133
69 Screw, Machine, 6-32 3 74506-36-232
70 Wire Nut 4 05172-01-000
131 Screw, Switch Housing Assembly 3 64555-02-133
75 Balancing Kit 1 07570-01-000
Part List
Before installing your fan, record the following information for your records and warranty assistance.
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products Trouble Shooting
Dealer Location Service Center Locator
Call 1-800-448-6837
www.hunterfan.com
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
