* Code Settings 1-7
Must Match Both Push
Button and Chime
Note: Some models might require
the use of tweezers to remove
and replace the jumpers.

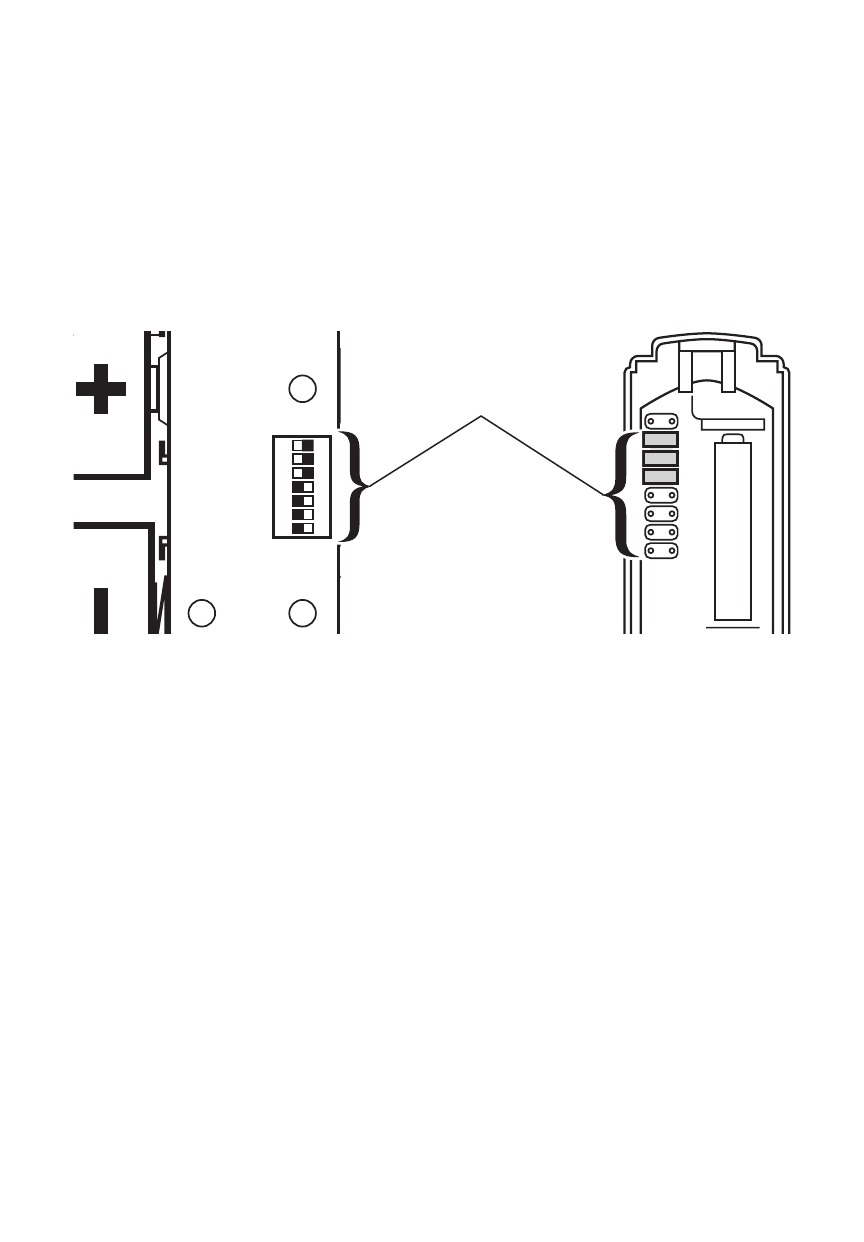

Figure 9 - Inside Push Button and Chime
Push Button
Jumpers on
Positions 5, 6, and 7
Chime Switches
5, 6, and 7 in “ON”
Position
1
2
3
4
5
6
7
8
1 2 3 4 5 6
7
ON
Type “C” Type “C”
Type “C” Type “C”
Note: Code positions 1 through 7 must be exactly the same for both the
push button and chime for this system to function.
Note: Unit will come factory set with jumpers in locations 5, 6, and 7 on the
push button and switch locations 5, 6, and 7 in the “ON” position on the chime
(see Figure 9).
The range of the wireless chime can vary with location, temperature, and
battery condition.
