Husqvarna H346SL User Manual

Page 6

CAUTION: Do not remove defl ector shield
from mower. Raise and hold shield when
attaching lower chute and allow it to rest
on chute while in operation.

DEFLECTOR SHIELD
HINGE BRACKET

DEFLECTOR SHIELD

FRONT LATCH

REAR LATCH

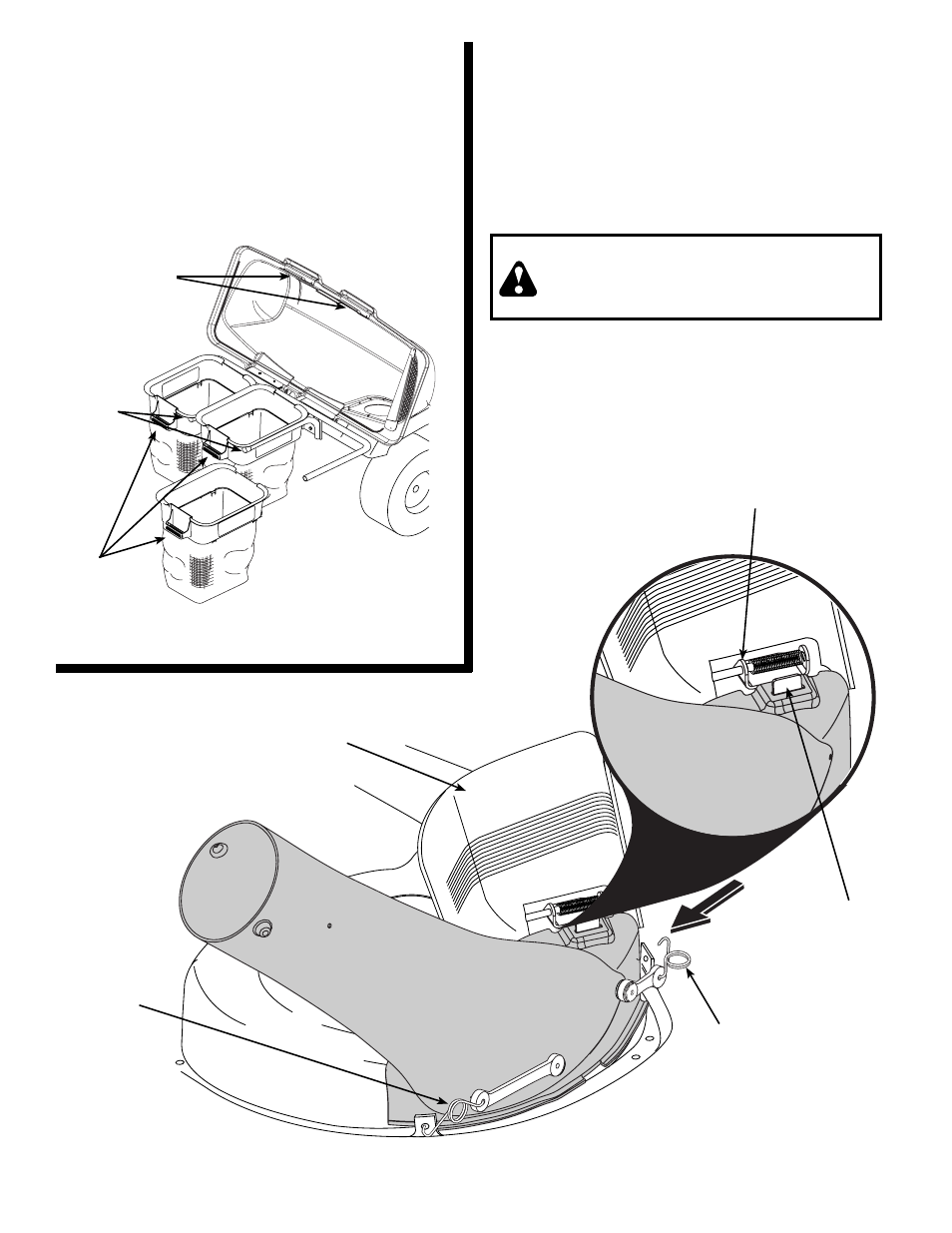

FIG. 4

MOUNTING

TAB

LOWER CHUTE - MOWER WITH

MOUNTING TAB (See Fig. 4)

1. Raise and hold defl ector shield in upright position.
2. Place slot in lower chute over mounting tab on mower

and position lower chute over mower opening as
shown.

3. Hook rear latch into fl ange hole on back of mower.
4. Hook front latch into fl ange hole on front of mower.

CONTAINER MOUNTING (See Fig. 3)

1. Install one container to left side fi rst. Install another

container to center position and one in right position.

NOTE

: Left edge of right con tain er should always over lap

right edge of left con tain er at center supports.
2. Close cover and lock latches over center support

tubes. To lock and release latches, pull back on latch
handles.

FIG. 3

03022

COVER LATCH
HANDLES

CONTAINER
HANDLE

CENTER
SUPPORT
TUBES
