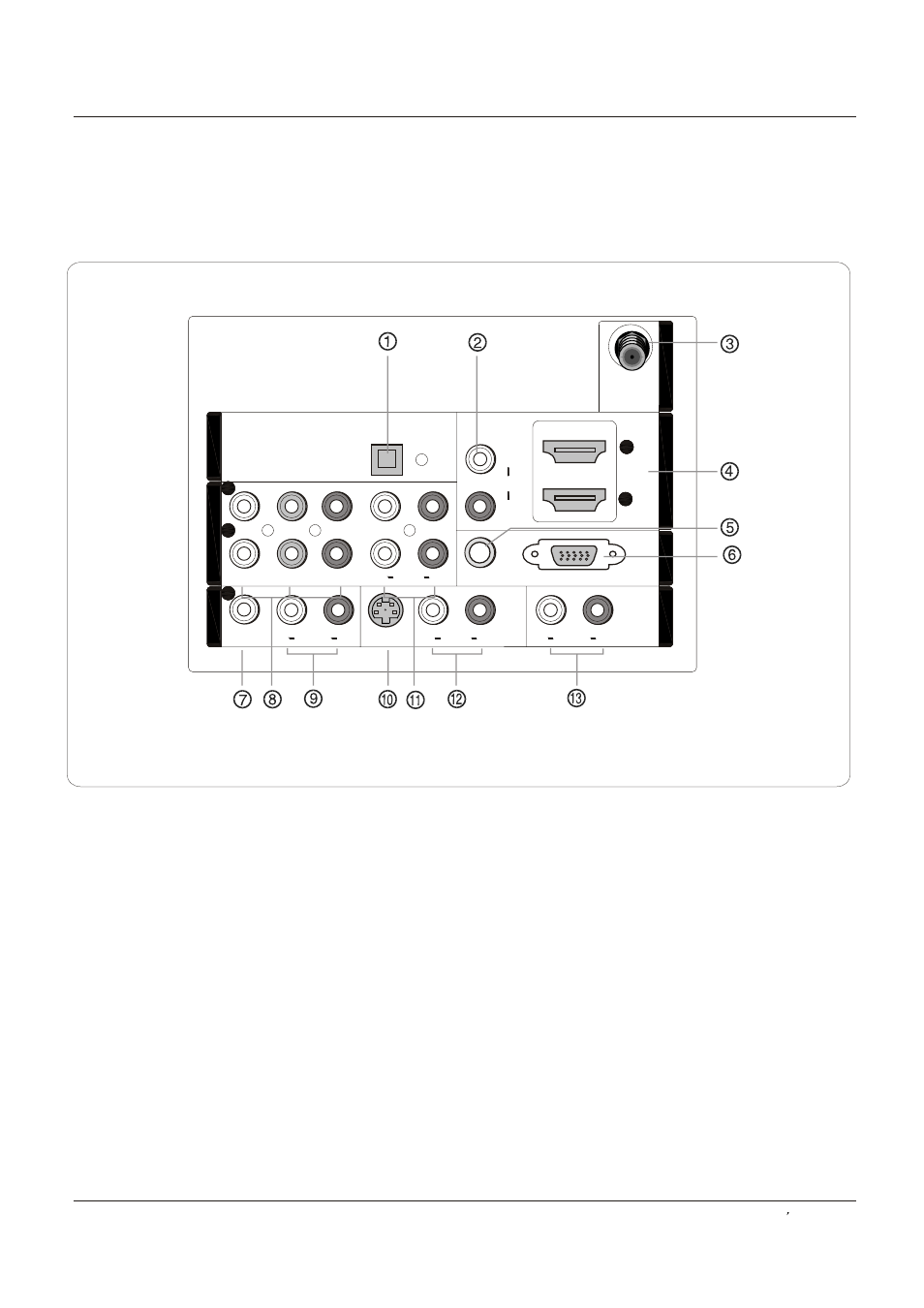

Back panel connections
Introduction
Owner s Manual 7
Connection Options
2
1
1
Y Pb Pr L R
L L R R VIDEO VIDEO S-VIDEO S-VIDEO
VGA VGA VGA AUDIO VGA AUDIO
AUDIO AUDIO AUDIO AUDIO
L
R
DVI AUDIO DVI AUDIO
AUDIO
2
L R AUDIO AUDIO
COMPONENT
IN
COMPONENT
IN
VIDEO
IN
VIDEO
IN
1
AUDIO
O
UT
AUDIO
O
UT
VGA
IN
VGA
IN
HDMI
IN
ANT
IN
ANT
IN
OPTICAL
O
UT
OPTICAL
O
UT
1. Digital Audio Output: Connect various types of digital audio equipment.
NOTE: In standby mode, these ports will not work.
2. DVI Audio In: When using a DVI to HDMI adapter, connect the audio signal to these jacks.
3. Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.
4. HDMI In: Connect a HDMI device to receive digital audio and uncompressed digital video.
5.VGA Audio In: Connect the audio L/R cables from a computer to this jack.
6.VGA Video In: Connect a video cable from a computer to this jack.
7. VIDEO In: Connect the video signal from a video device to this jack.
8. Component Video In: Connect a component video device to these jacks.
9. AUDIO In: Connect the audio L/R cables from the video signal source to these jacks.
10. S-VIDEO In: Connect the S-Video cable from an external signal source to this jacks.
11. COMPONENT AUDIO In: Connect the audio L/R cables from the component video signal source to these jacks.
12. AUDIO In: Connect the audio L/R cables from the S-Video signal source to these jacks.
13. AUDIO Out: Connect the audio L/R cables to your audio equipment.
