Display panel – Hoshizaki ROX-20TA-U User Manual

Page 12

U8AA5540012

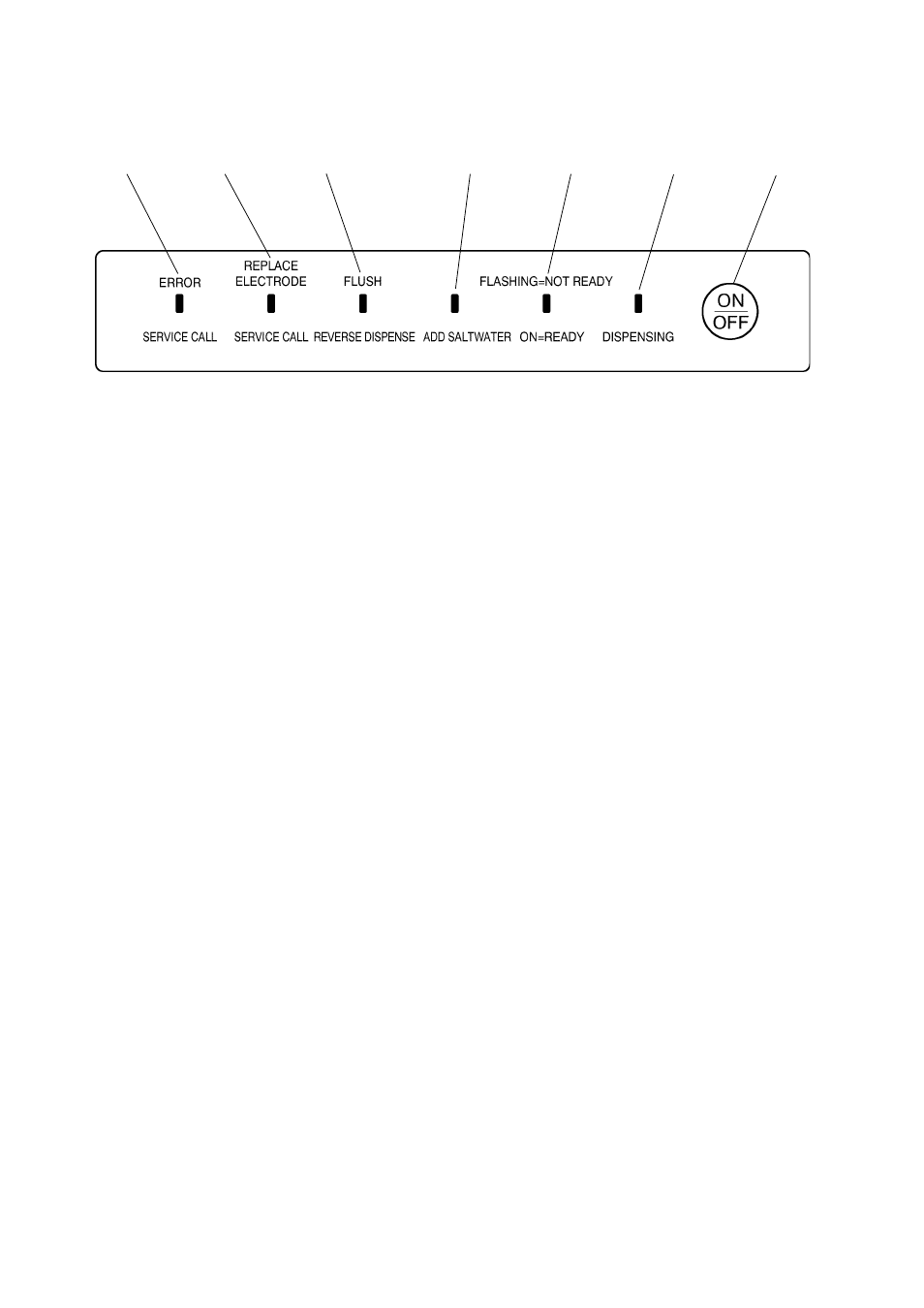

[1] Dispense Button

Starts and stops dispensing electrolyzed water.

[2] Dispensing Lamp (Green)

Indicates that the unit is producing water.

[3] Ready Lamp (Green)

Flashes until the desired settings are achieved and stays on when the unit is dispensing
electrolyzed water.

[4] Add Salt Water Lamp (Red)

Indicates that the Salt Water Tank level is too low.

[5] Flush Lamp (Red)

Stays on during the flush operation. Indicates that the unit is in flush cycle.

[6] Electrolytic Cell Replace Lamp (Red)

Indicates that the cell life is near completion. Flashes continuously from 2900 hours to
3000 hours and stays on after 3000 hours.

[7] Service Call Lamp (Red)

Indicates that there is trouble detected.

[7]

[6]

[5]

[4]

[3]

[2]

[1]

3. DISPLAY PANEL
