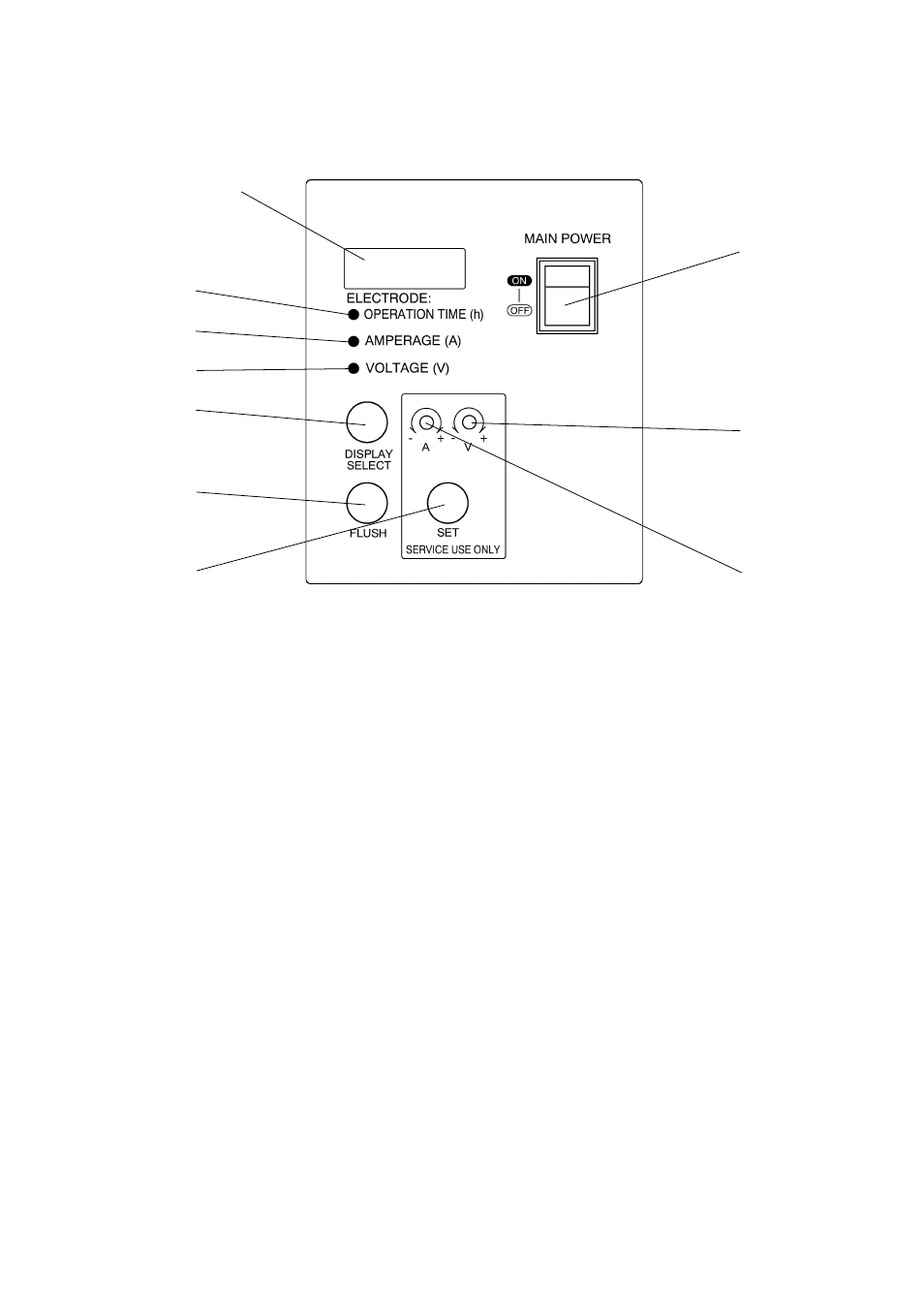

2. CONTROL PANEL

[1] Display Window

Displays the operation time, amperage or voltage during the normal operation and
error codes in case of trouble.

[2] Operation Time Lamp

Display Window displays operation time (h) when this lamp is on.

[3] Amperage Lamp

Display Window displays amperage (A) when this lamp is on.

[4] Voltage Lamp

Display Window displays voltage (V) when this lamp is on.

[5] Display Select Button

Switches the display of the Display Window.

[6] Flush Button

Functions as a switch to flush the pipes beyond the acid and alkaline water outlets.

[7] Set Button

Only qualified service personnel or installer may press this button to adjust various set
values.

[8] Amperage Control Volume

Only qualified service personnel may turn this control to change the set amperage.

[9] Voltage Control Volume

Only qualified service personnel may turn this control to change the set voltage.

[10] Power Switch

Turns the unit on and off.
