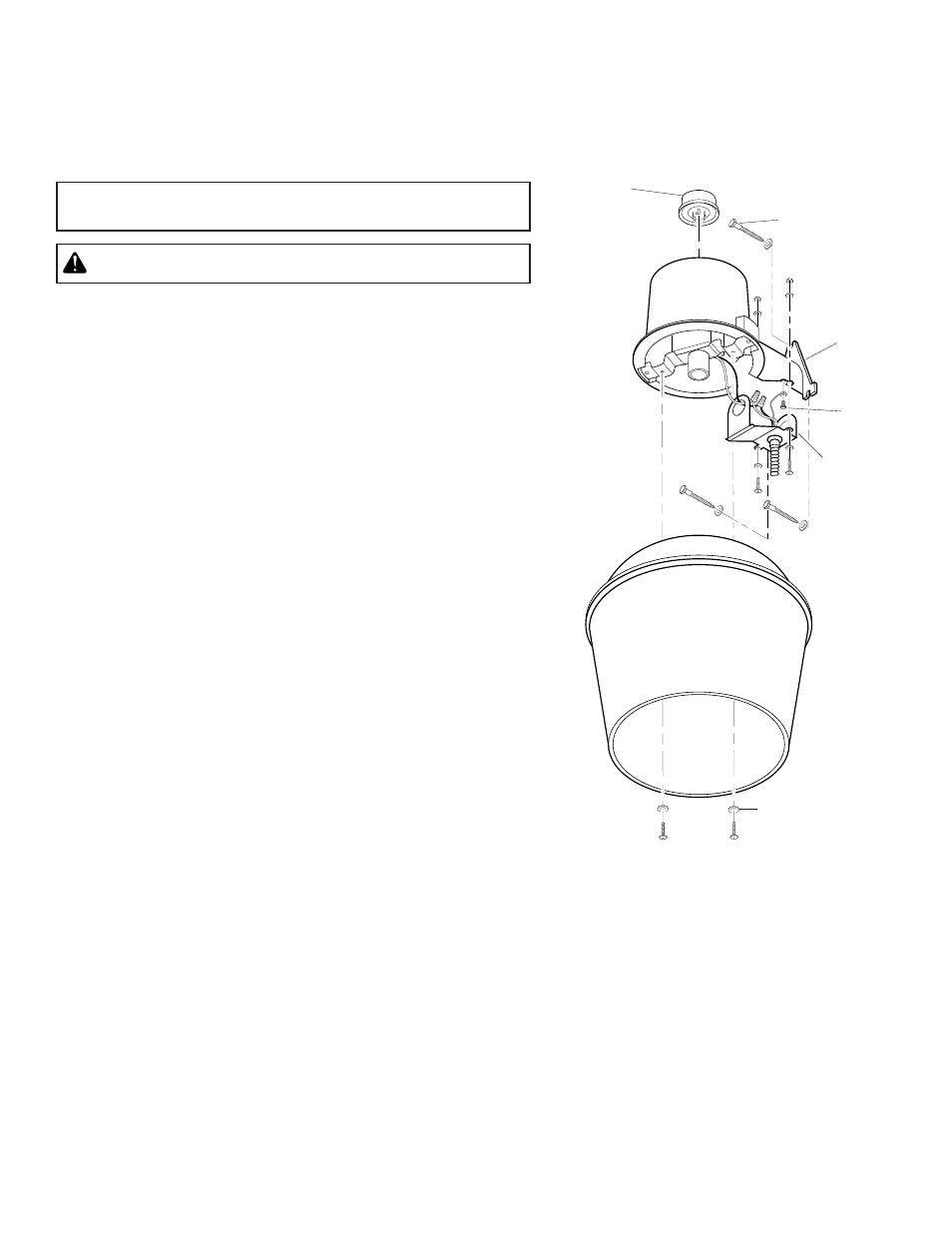

Cover
Plate
Mounting
Plate
Lag Screw (3)
Flat Washer (9)
Photocontrol
Ground
Screw
1. Select a location on a flat wall with structurally sound wood and from 10
to 25 feet (3 to 7.6 m) from the ground. The wood should be at least one
inch (25 mm) thick to safely secure the fixture.
2. The fixture can be mounted with three lag screws and washers which are
provided.
3. Using the mounting template as a guide, mark three mounting holes. We
suggest drilling 3/16" (4.8 mm) pilot holes for the lag screws.
4. Install the bottom two lag screws first. Screw in the lag screws so that there
is about 3/8" (9.5 mm) of space under the head.
5. Place the fixture on these two lag screws and install the top lag screw.
Tighten the top lag screw first, then tighten the remaining lag screws
6. Secure your outdoor cable or flexible conduit to the cover plate with a fit-
ting in accordance with the National Electrical Code (Canadian Electrical
Code in Canada).
7. Thread the black and white fixture wires through the hole in the cover plate
as shown.
8. Connect the fixture wires to the service wires using the wire nuts provided
(black to black and white to white).
9. This fixture must be grounded. Connect the service ground under the head
of the green ground screw and secure to the fixture.
10. Install the cover plate. Secure with the two screws, two nuts and four
washers provided.
11. Install the lens/reflector assembly with two screws and washers provided.
12. Screw in the 100 watt H.P. Sodium type S54 lamp provided.
13. Loosen the screw in the center of the photocontrol socket two turns. Twist the
socket so that the arrow points north. Note: There is a stop to prevent the socket
from turning all the way around. If you have trouble turning the socket, try
turning it the other direction. Retighten the screw in the center of the socket.
14. Align the photocontrol (it will only plug-in one way). Plug it in and twist
clockwise until it stops.
To test operation during daylight, cover the photocontrol with a small box. Turn
on the power. Not all photocontrols are alike. Some may have a time delay of
a few minutes, others will turn on as soon as power is applied. The light will
take up to ten minutes to reach full brightness. Uncover the photocontrol and
your unit will operate automatically—on at dusk, off at dawn.
Lens/Reflector
Assembly
Installation Instructions Without Two Piece Arm
READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION.
NOTE: All wiring must be run in accordance with the National Electrical Code (Canadian Electrical Code in Canada) through
conduit or another acceptable means. Contact a qualified electrician if there is any question as to the suitability of
the system.
WARNING: Turn power off at the circuit breaker or fuse.
Lamp in Fixture Contains Mercury. Dispose According to Local,
State, or Federal Laws.
