A Open HARDWARE BAG 3.
B Slide HANDLEBAR ExTENSION
onto the CONSOLE HANDLEBAR.
You will need to slide the
HANDLEBAR ExTENSION under
the console assembly plastic
by slightly lifting the plastic in
order to attach the connection
bolts.
C Insert BOLTS (E) into the
HANDLEBAR ExTENSION.
D Insert BOLT (F) and ARC
WASHER (D) through bottom
hole of HANDLEBAR ExTENSION
into CONSOLE MAST.
E Tighten all bolts.
F Repeat on other side.

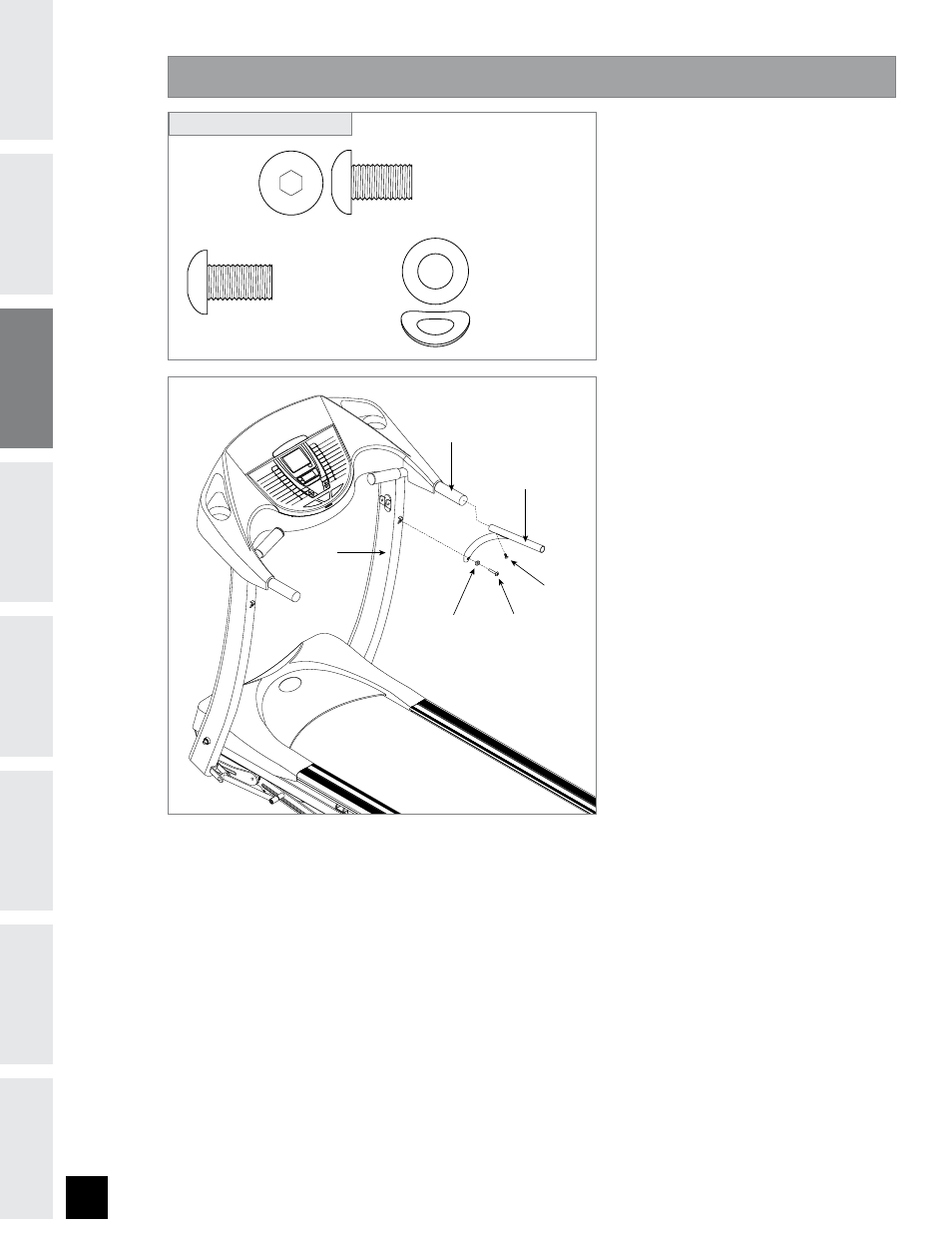

ASSEMBLY STEP 3
)"/%-&#"3
&95&/4*0/
#0-5 '
#0-5 &
"3$8"4)&3 %
$0/40-&."45
$0/40-&
)"/%-&#"3
HARDWARE BAG 3 CONTENTS :
BOLT (E)
12 mm
Qty: 2
BOLT (F)
15 mm
Qty: 2
angle view
ARC WASHER (D)
Qty: 2
top view
