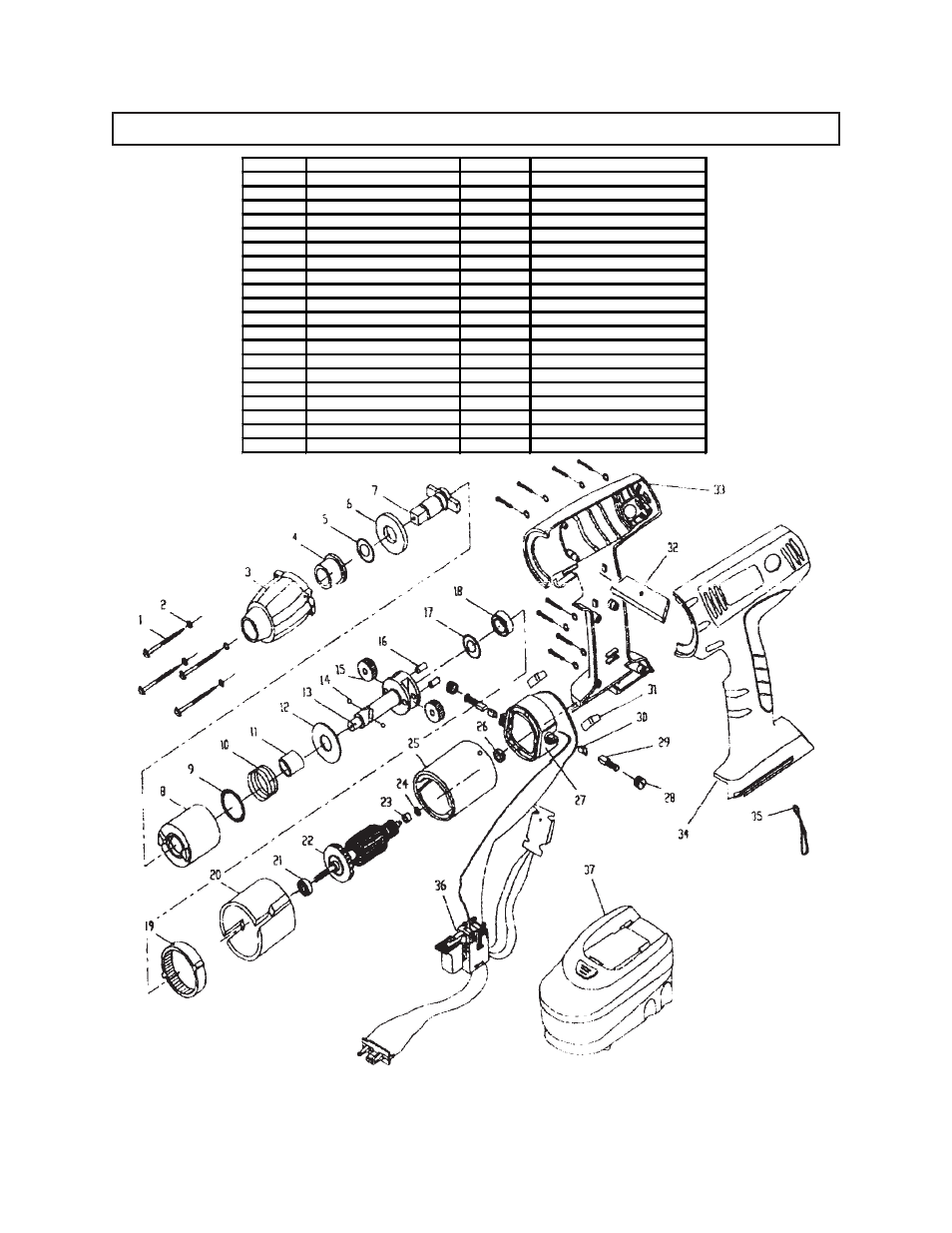

PARTS LIST & ASSEMBLY DIAGRAM
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Part # Description Part # Description
1 Stun Screw (1) 21 Bearing (3)
2 Washer (1) 22 Armature
3 Front Cover 23 Plate
4 Oilite Bearing 24 Washer (2)
5 Rubber Washer 25 Stator
6 Plate Washer 26 Oilite Bearing (2)
7 Impact Head 27 Carbon Brush Shaft
8 Impact Shaft 28 Brush Holder Cap
9 Bearing (1) 29 Carbon Brush
10 Torque Spring 30 Brush Holder
11 Buffer Pad 31 Connector
12 Spring Pad 32 Forward/Reverse Switch
13 Master Impact Driver 33 Right Body
14 Steel Ball 34 Left Body
15 Planetary Gear 35 Carrying Strap
16 Straight Pin 36 Trigger
17 Bearing Pad 37 Battery
18 Bearing (2) 38 Stun Screw (2)
19 Inner Rim 39 Charger
20 Rim Shaft
