Hardware Upgrades
Locating Drive Positions

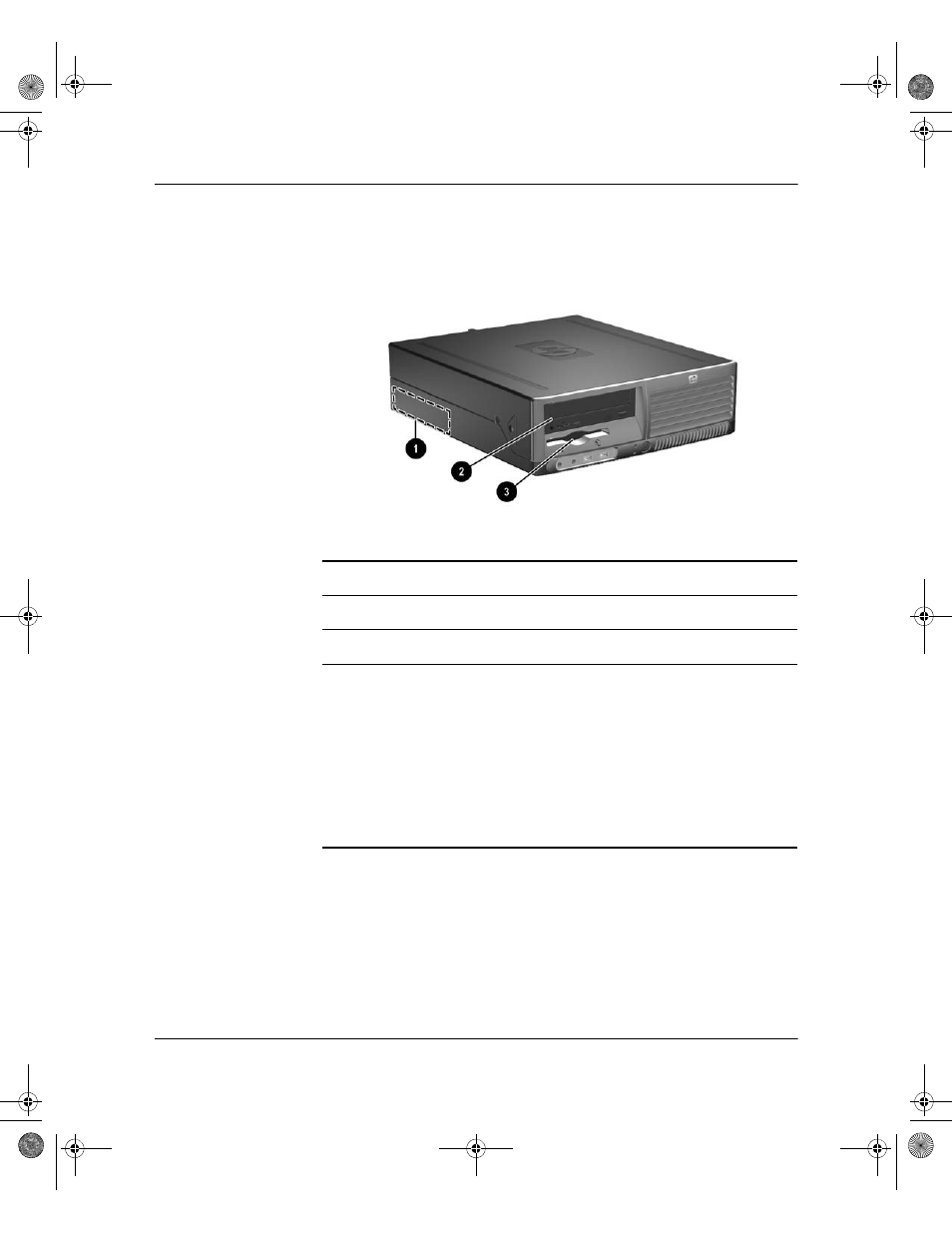

Drive Positions
To verify the type, size, and capacity of the storage devices installed
in the computer, run Computer Setup. Refer to the Computer Setup
(F10) Utility Guide on the Documentation CD for more information.
1
3.5-inch, internal, standard hard drive bay
2
5.25-inch drive bay for optional drives
3
3.5-inch drive bay (optional 1.44-MB diskette drive shown)*
*If the computer has a 1.44-MB diskette drive installed, it will be
configured with a diskette drive bezel (PN 360189-001) as shown in
the illustration. If the computer contains an empty 3.5-inch drive bay,
then a bezel blank (PN 358797-001) will be installed on the
computer instead. If you do not have a drive in this slot, you may
choose to install a 3.5-inch device (such as a diskette drive, hard
drive, or Zip drive) later on. However, to install a 3.5-inch device
other than a diskette drive or hard drive, you must order the 3.5-inch
device bezel (PN 358796-001).
