Viewing Fabric Topology
The topology of a fabric is a high-level view of the routing and pathways on the
fabric. To view the fabric topology from the viewpoint of the hosting machine,
perform the following procedure:
1. Choose View from the navigation panel.
2. Choose the Fabric tab and the Topology tab. The Topology tab view displays
(
).

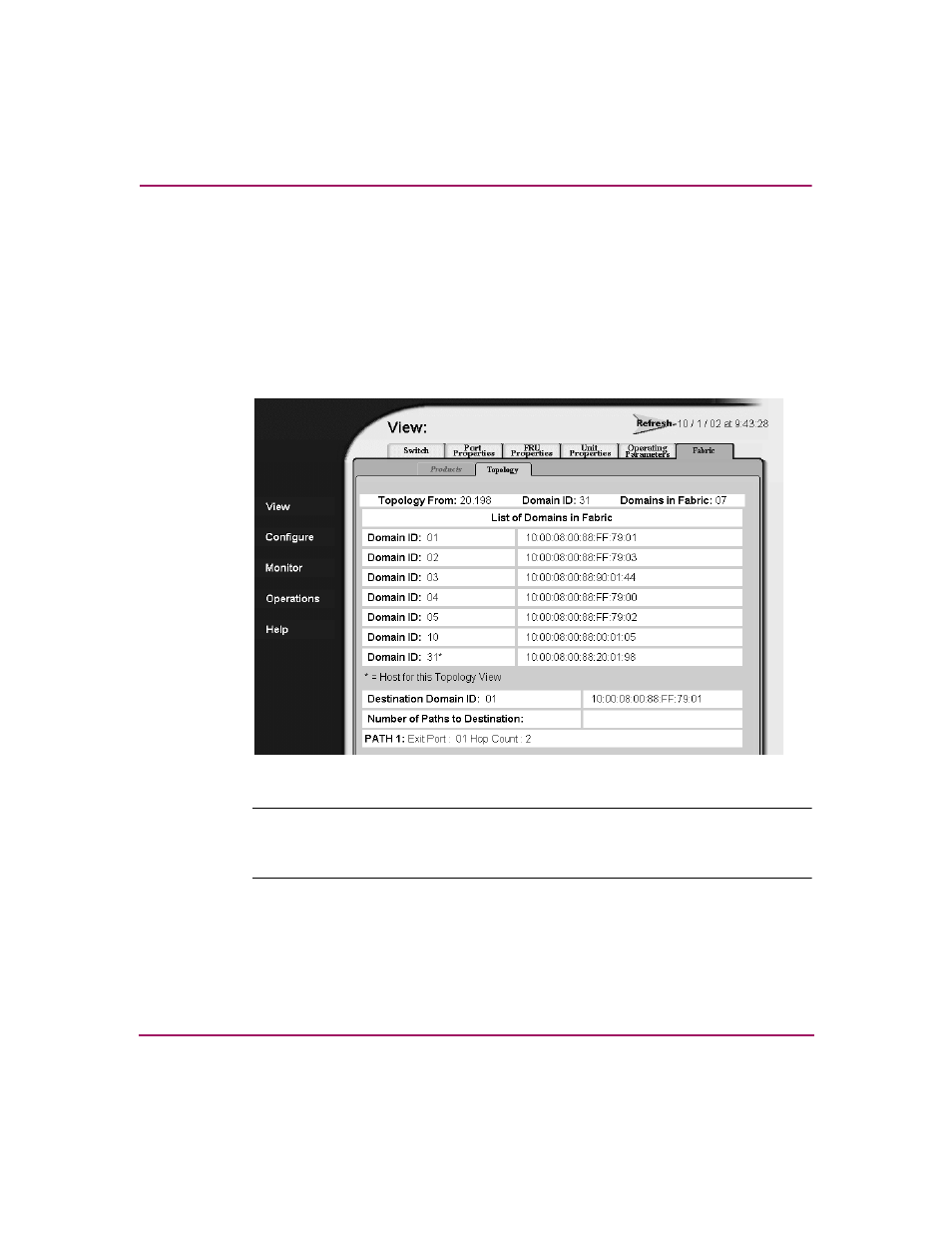

Figure 29: Fabric tab with Topology tab view
Note:
If you attempt to access this page during a fabric build, or any other instance in
which the fabric is not operational, only the top line of the page displays, with the
message Fabric Not Operational.
