Viewing Product and Fabric Data
81 Embedded Web Server User Guide
■ EC Level — Current engineering change (EC) level.
■ Firmware Level — Release number of the firmware that is currently
installed.
Viewing Operating Parameters for the Product
To view the Operating Parameters of a product, perform the following procedure:
1. Choose View from the navigation panel.
2. Choose the Operating Parameters tab. The Operating Parameters tab view
displays ( Figure 27 ) showing Switch Parameters and Fabric Parameters.

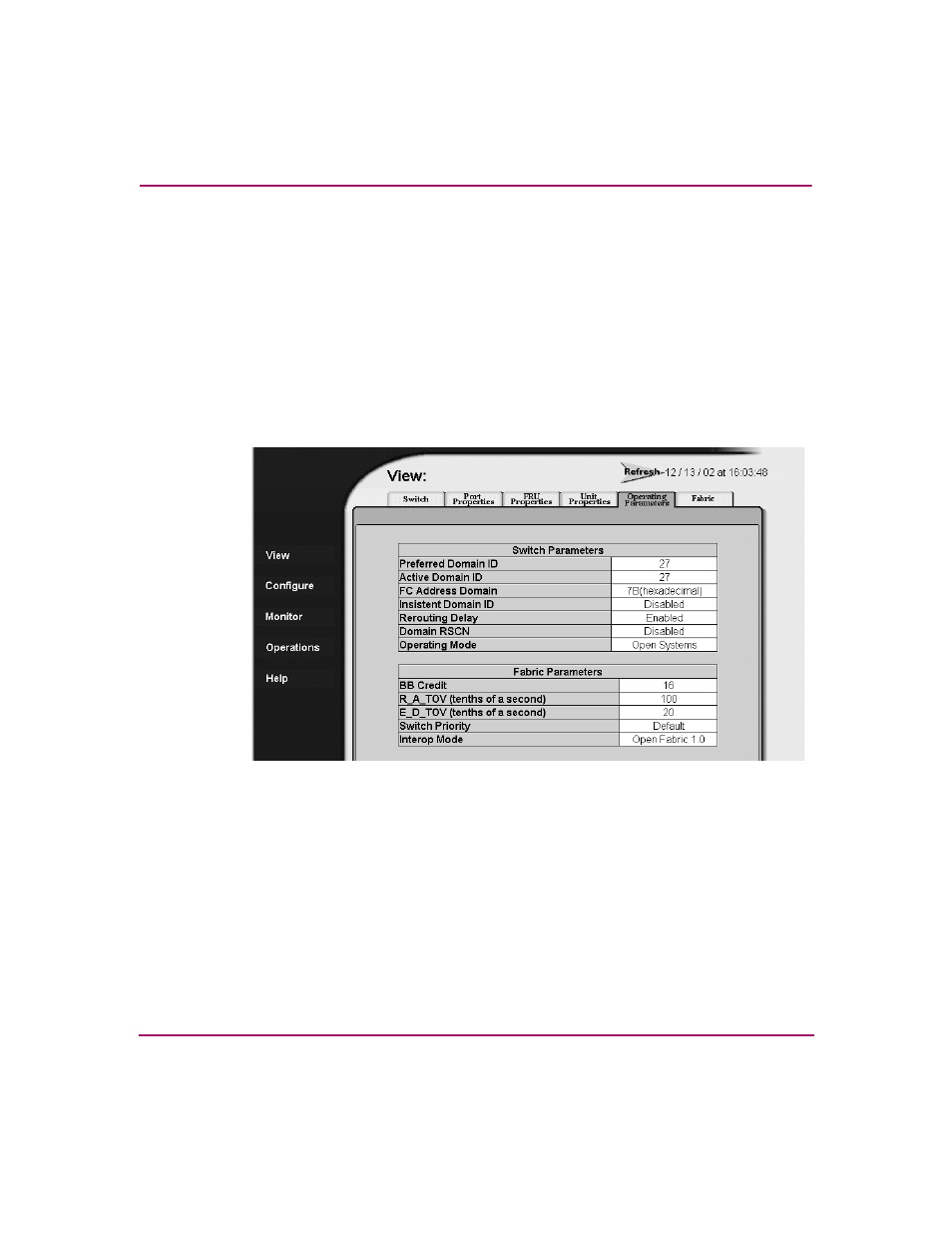

Figure 27: Operating Parameters tab view
This tab view shows the following Switch Parameters information for the
product:
■ Preferred Domain ID — The ID to be used if the product participates in a
multiswitch fabric. The preferred domain ID must be unique for each director
and switch in a fabric.
■ Active Domain ID — The domain ID assigned to the switch.
■ FC Address Domain ID — The value of the domain byte of the Fibre
Channel address for ports on this product.
