Introduction
19 Embedded Web Server User Guide
Viewing the User Interface
When the EWS interface opens, the default display is the View page. Figure 1
shows an example EWS view with labels for the various parts of the image. This
example shows the Configure > Switch > Identification screen for the
Edge Switch 2/24. For other products, the corresponding page looks very similar.

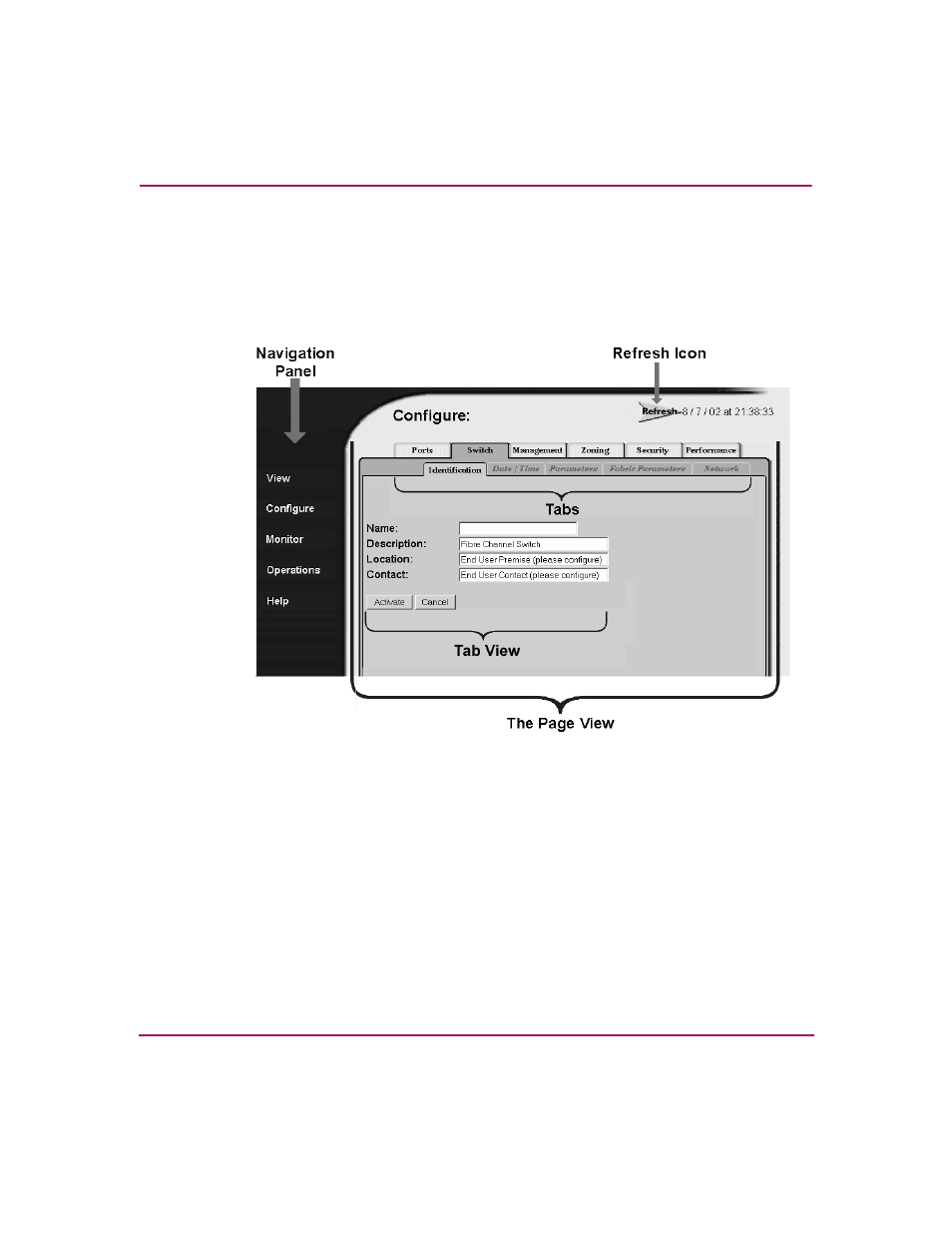

Figure 1: Example Embedded Web Server page for Edge Switch 2/24
As shown in Figure 1 , particular terms are used when describing the EWS
interface:
■ Navigation panel — at the left of the screen is a menu of the various primary
views available on the screen. The navigation panel options include:
— View — At the View page, the Director or Switch (default), Port
Properties, FRU Properties, Unit Properties, Operating Parameters,
and Fabric task selection tabs display.
— Configure — At the Configure page, the Ports (default), Director or
Switch, Management, Zoning, and User Rights task selection tabs
display.
